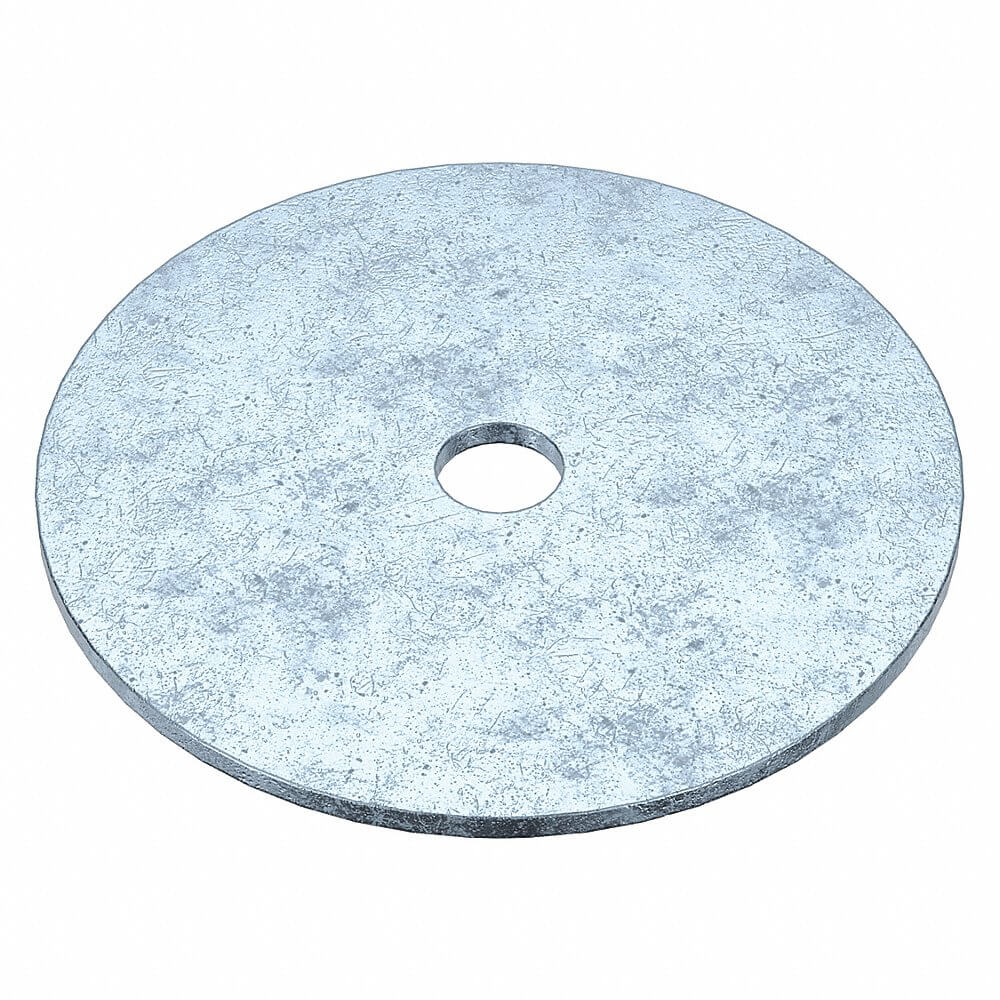

APPROVED VENDOR Z0485 Fender Washer, 5/16 In Fits Bolt Size, Oversized, 11/32 In I.D., Zn Plated, 2 1/2 In O.D.
Item: AD6UNCModel: Z0485Cross Ref: 4ARY4
7 In Stock
Ships within 2 days via
5.00% off
€7.31 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Zinc Plated |
| Fits Bolt Size | 5/16" |
| Flat Washer Type | Oversized |
| For Screw Size | 5/16" |
| Hardness | Rockwell B55 |
| Inside Dia. | 0.344" , 11/32" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Thickness | 2/25" |
| Min. Thickness | 0.051" |
| Outside Dia. | 2 1/2" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Rockwell Hardness | B55 |
| System Of Measurement | Imperial |
| Thickness | 0.065" |
| Thickness Tolerance | -0.004" to +0.005" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.35 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP7 | #10 | 0.075" | 0.075" | 0.073" | #10 | Grade 2 | +0.029" | -0.029" to +0.029" | 100 | €55.80 | |
 |
U38130.043.0001 | 7/16" | 0.083" | 0.083" | 0.083" | 7/16" | Ungraded | 0.064" to 0.104" | 0.495" to 0.515" | 50 | €11.33 | |
 |
U38130.050.0001 | 1/2" | 0.109" | 0.109" | 0.109" | 1/2" | Ungraded | 0.086" to 0.132" | 0.557" to 0.577" | 50 | €13.07 | |
 |
U38130.056.0001 | 9/16" | 0.109" | 0.109" | 0.109" | 9/16" | Ungraded | 0.086" to 0.132" | 0.62" to 0.64" | 25 | €9.08 | |
 |
U38130.062.0001 | 5/8" | 0.134" | 0.134" | 0.134" | 5/8" | Ungraded | 0.108" to 0.16" | 0.681" to 0.718" | 25 | €10.49 | |
 |
U38130.087.0001 | 7/8" | 0.156" | 0.165" | 0.165" | 7/8" | Ungraded | 0.136" to 0.192" | 0.931" to 0.968" | 10 | €11.42 | |
 |
U38130.100.0001 | 1" | 0.156" | 0.165" | 0.165" | 1" | Ungraded | 0.136" to 0.192" | 1.055" to 1.092" | 5 | €7.69 |
