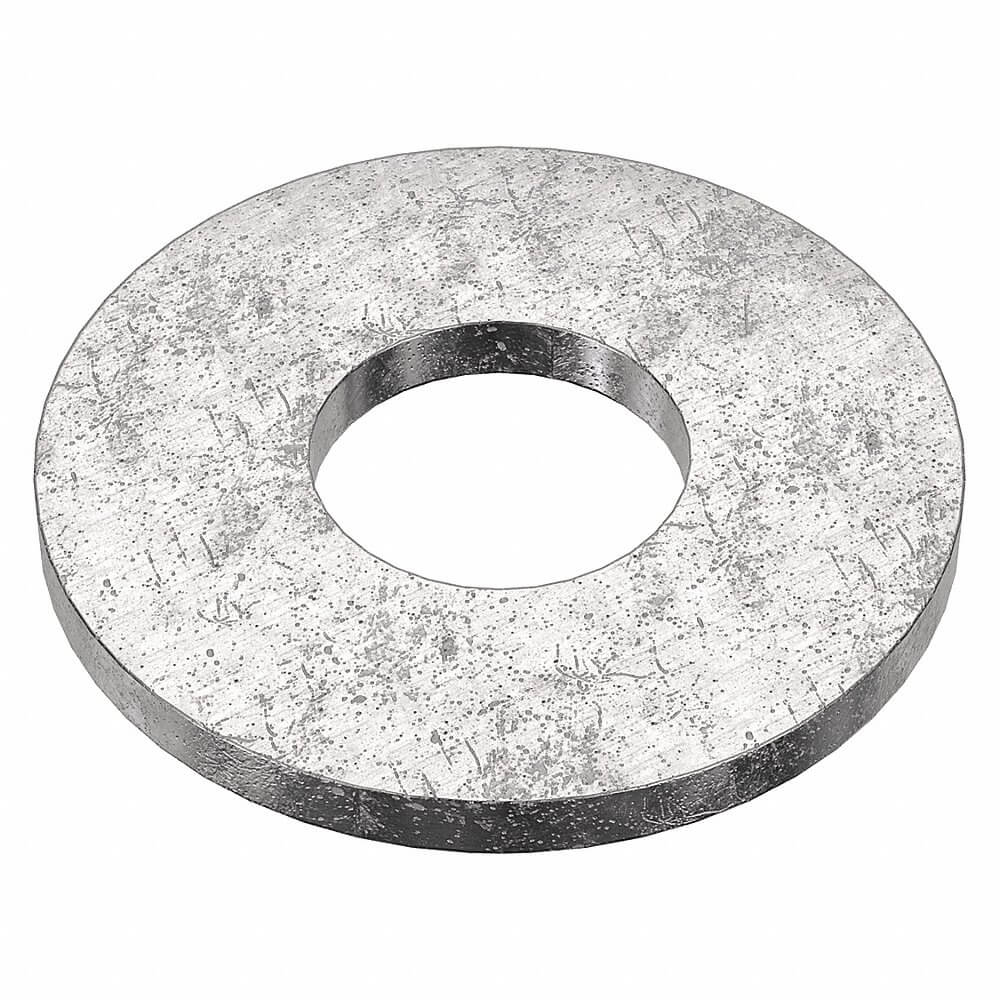

APPROVED VENDOR U55530.050.0200 Fender Washer, 1/2 In Fits Bolt Size, Oversized, 0.535 In I.D., 2 In O.D.
Item: AB7EBJModel: U55530.050.0200Cross Ref: 22UF22
7 In Stock
Ships within 2 days via
5.00% off
€31.73 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Plain |
| Fits Bolt Size | 1/2" |
| Flat Washer Type | Oversized |
| For Screw Size | 1/2" |
| Grade | Grade 316 |
| Inside Dia. | 0.535" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Max. Temp. | 302°F |
| Max. Thickness | 2/25" |
| Min. Temp. | -58°F |
| Min. Thickness | 0.047" |
| Outside Dia. | 2" |
| Outside Dia. Tolerance | -0.008" to +0.029" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.063" |
| Thickness Tolerance | +0.015", -0.018" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U55530.013.0001 | #6 | 0.047" | 0.047" | 0.047" | #6 | - | - | - | 50 | €3.50 | |
 |
U55530.018.0125 | 3/16" | 0.047" | 0.047" | 2/25" | 3/16" | +0.015", -0.018" | -0.01" to +0.01" | -0.008" to +0.029" | 50 | €26.39 | |
 |
U55530.025.0001 | 1/4" | 0.047" | 0.047" | 0.047" | 1/4" | - | - | - | 50 | €3.30 | |
 |
U55530.025.0002 | 1/4" | 0.063" | 0.063" | 0.063" | 1/4" | - | - | - | 50 | €40.42 | |
 |
U55530.025.0087 | 1/4" | 0.063" | 0.047" | 2/25" | 1/4" | +0.015", -0.018" | -0.01" to +0.01" | -0.008" to +0.029" | 50 | €12.51 | |
 |
U55530.025.0100 | 1/4" | 0.047" | 0.047" | 2/25" | 1/4" | +0.015", -0.018" | -0.01" to +0.01" | -0.008" to +0.029" | 50 | €14.13 | |
 |
U55530.025.0125 | 1/4" | 0.047" | 0.047" | 2/25" | 1/4" | +0.015", -0.018" | -0.01" to +0.01" | -0.008" to +0.029" | 50 | €26.11 |
