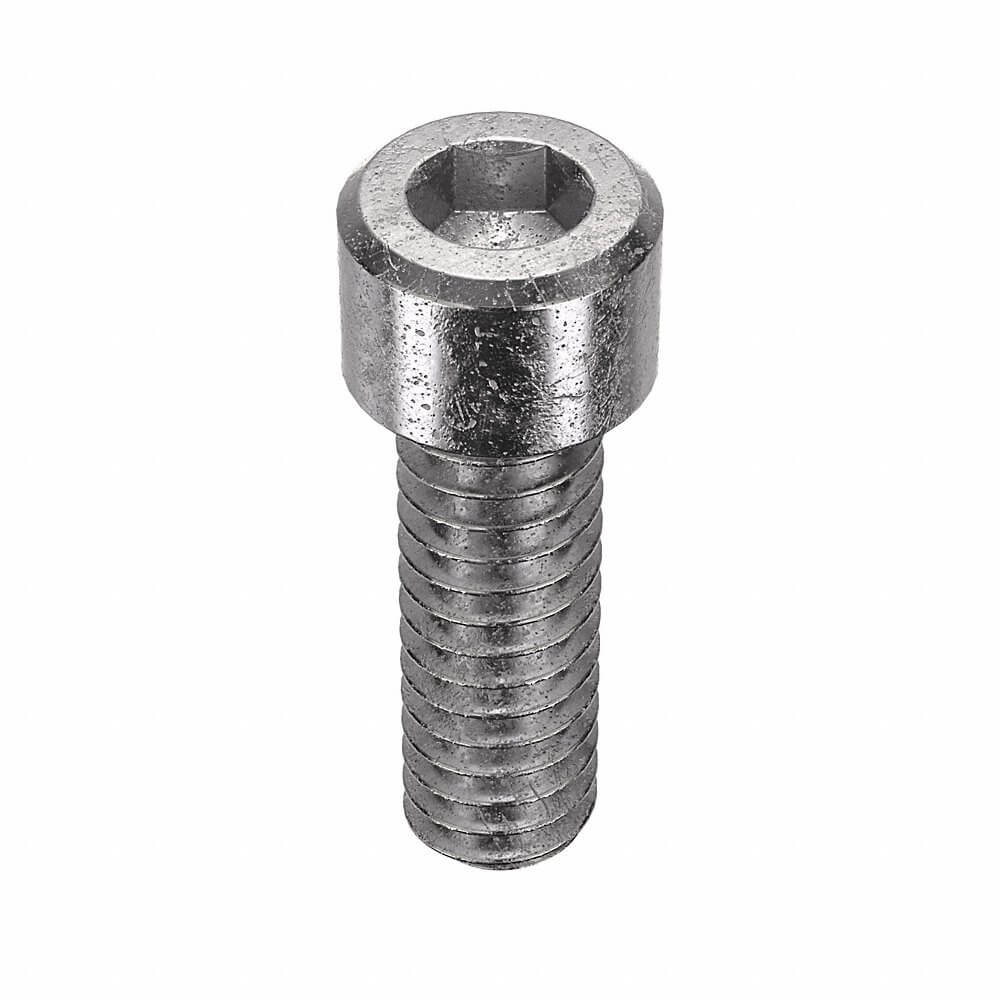

APPROVED VENDOR U55050.025.0075 Socket Head Cap Screw, 1/4 In - 20 Thread Size, Cyl., 3/4 In Lg., 1/4 In Head Ht., Gr. 316, SS
Item: AB7CJUModel: U55050.025.0075Cross Ref: 22TV13
7 In Stock
Ships within 2 days via
5.00% off
€38.93 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Color | Silver |
| Combined Grade | Grade 316 |
| Combined Material | Stainless Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 316 |
| Hardness | Rockwell B80-C32 |
| Head Height | 1/4" |
| Head Texture | Knurled |
| Head Type | Standard |
| Included Washers | No |
| Length | 3/4" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Material Grade/class | 316 |
| Material Quality Standards | Astm F837 |
| Material Type | Stainless Steel |
| Max. Head Height | 6.35 mm |
| Max. Temp. | 550°F |
| Min. Head Height | 6.2 mm |
| Min. Temp. | -50°F |
| Min. Tensile Strength | 85000 psi |
| Min. Thread Length | 3/4" |
| Min. Yield Strength | 81000 psi |
| Non-marring Tip | No |
| Proof Load | 74000 psi |
| Screw Length | 3/4" |
| Seal Material | None |
| Sealing Gasket | No |
| System Of Measurement | Imperial |
| Temp. | -50°F to +550°F |
| Tensile Strength | 85000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Thread Size | 1/4"-20 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158030 |
| Country of Origin | TW |
