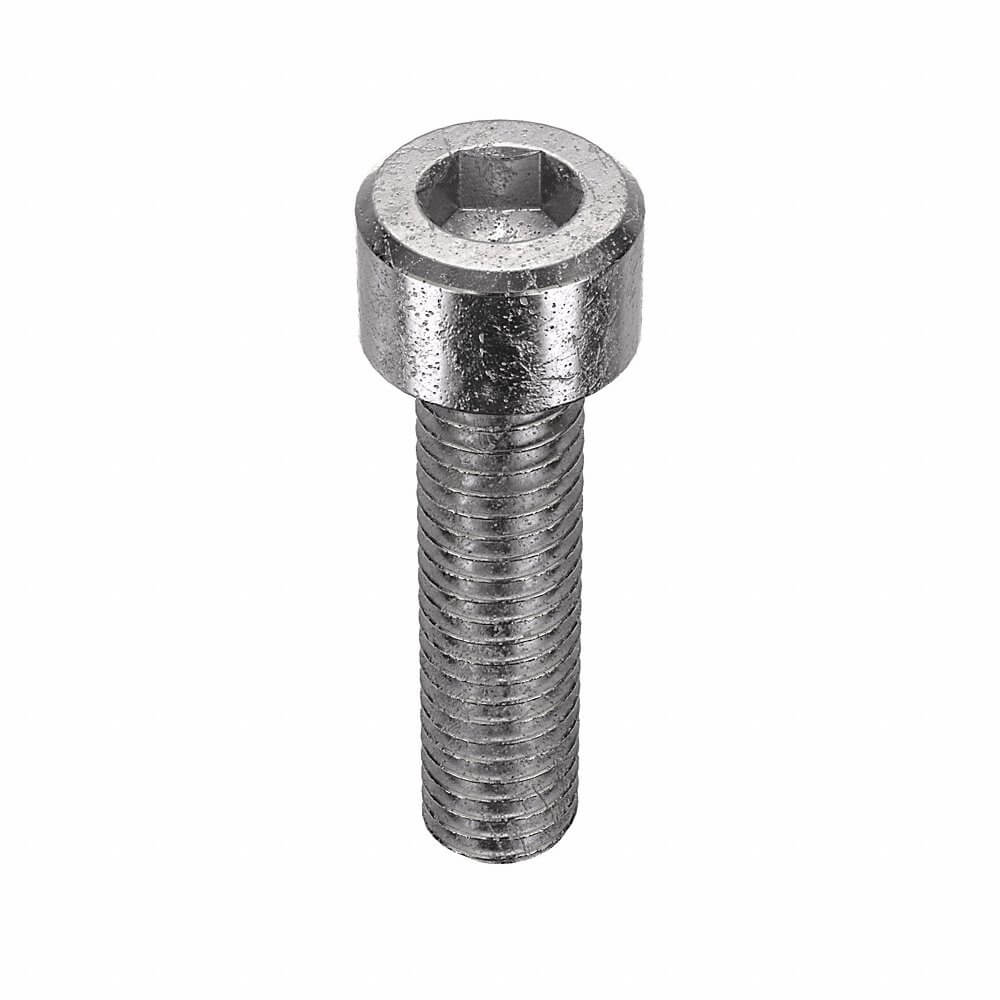

APPROVED VENDOR U55041.019.0075 Socket Head Cap Screw, 10-32 Thread Size, Cyl., 3/4 In Lg., 0.19 In Head Ht., Pln, Gr. 316, SS
Item: AB7CXFModel: U55041.019.0075Cross Ref: 22TX81
7 In Stock
Ships within 2 days via
10.00% off
€29.20 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Grade | Grade 316 |
| Combined Material | Stainless Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 316 |
| Hardness | Rockwell B80-C32 |
| Head Dia. | 5/16" |
| Head Diameter | 0.312" |
| Head Height | 0.19" |
| Head Texture | Smooth |
| Head Type | Standard |
| Includes Washer | No |
| Length | 3/4" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Material Grade/class | 316 |
| Material Quality Standards | Astm F837 |
| Material Type | Stainless Steel |
| Maximum Head Height | 0.19" |
| Maximum Temperature | 550°F |
| Min. Tensile Strength | 85000 psi |
| Minimum Head Height | 0.185" |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 3/4" |
| Minimum Yield Strength | 40000 psi |
| Non-marring Tip | No |
| Screw Length | 3/4" |
| Sealing Gasket | No |
| System Of Measurement | Imperial |
| Temp. Range | -50°F to +550°F |
| Tensile Strength | 85000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Thread Size | #10-32 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318156010 |
| Country of Origin | TW |
