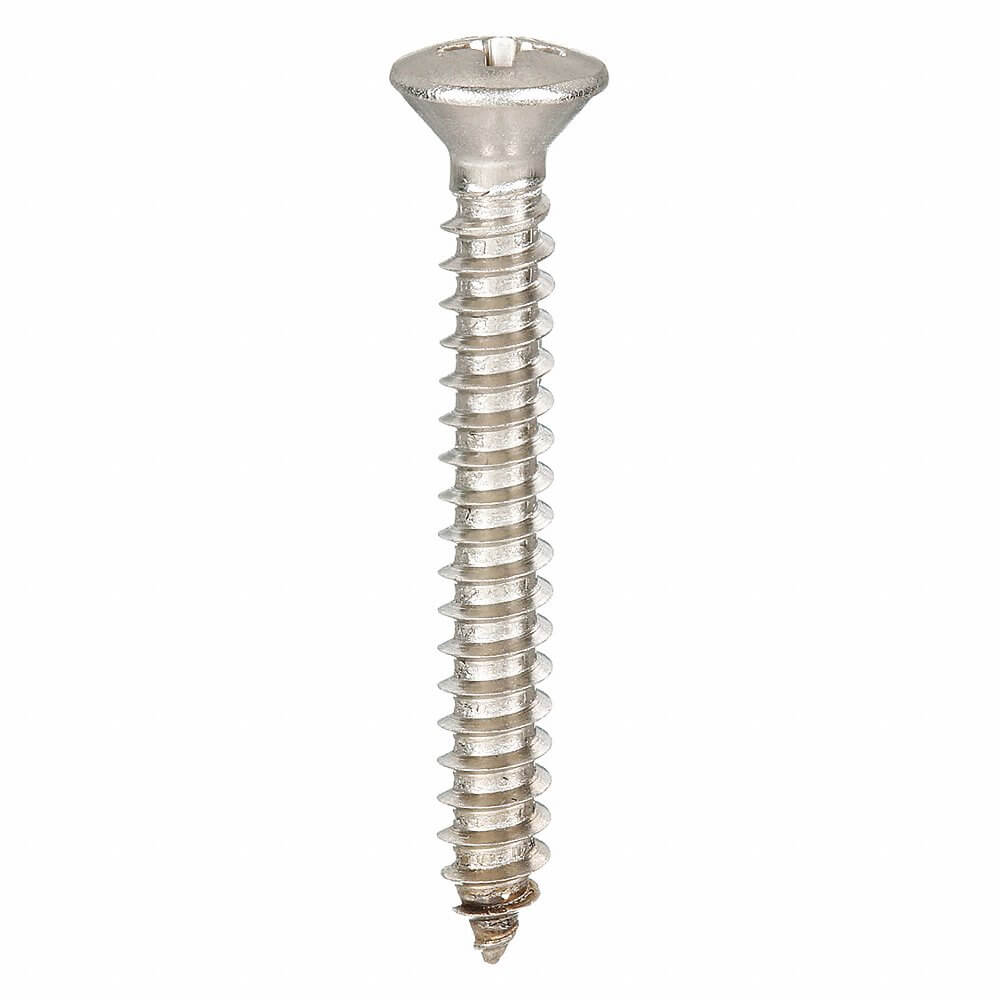

APPROVED VENDOR U51690.019.0150 Sheet Metal Screw, 1 1/2 In Lg., 0.176 In Head Ht., 0.362 In Head Dia., 10 Screw Size, Phillips, Oval, SS
Item: AB3YTWModel: U51690.019.0150Cross Ref: 1WB85
7 In Stock
Ships within 2 days via
5.00% off
€21.66 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sheet Metal Screw |
| Dimensional Standards | Asme B18.6.3, Sae J933 |
| Drive | Phillips |
| Drive Size | #2 |
| Drive Type | Phillips |
| Fastener Length | 1 1/2" |
| Finish | Plain |
| Grade | Grade 18-8 |
| Head Angle | 82° |
| Head Dia. | 0.362" |
| Head Height | 0.176" |
| Head Type | Oval |
| Length | 1 1/2" |
| Material | Stainless Steel |
| Material Quality Standards | Sae J933 |
| Min. Head Width | 0.333" |
| Screw Size | #10 |
| System Of Measurement | Imperial |
| Thread Size | #10 |
| Tip Type | Pointed |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 8.89 |
| HS code | 7318141030 |
| Country of Origin | TW |
Product Variants
| Model | Head Height | Screw Size | Head Dia. | Fastener Length | Drive Size | Min. Head Width | For Max. Material Thickness | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1WB28 | 0.109" | #4 | 0.212" | 3/8" | #1 | - | 1/32" | - | 100 | €9.51 | |
| 1WB30 | 0.104" | #4 | 0.212" | 1/2" | #1 | - | - | - | 100 | €10.81 | |
| 1WB33 | 0.109" | #4 | 0.212" | 5/8" | #1 | - | 1/32" | - | 100 | €5.89 | |
| 1WB35 | 0.109" | #4 | 0.212" | 3/4" | #1 | - | 1/32" | - | 100 | €12.47 | |
| 1WB37 | 0.104" | #4 | 0.212" | 1" | #1 | - | - | - | 100 | €14.73 | |
| 1WB39 | 1/8" | #6 | 0.262" | 3/8" | #2 | - | 1/32" | - | 100 | €11.37 | |
| 1WB43 | 0.128" | #6 | 0.262" | 5/8" | #2 | - | - | - | 100 | €13.19 |
