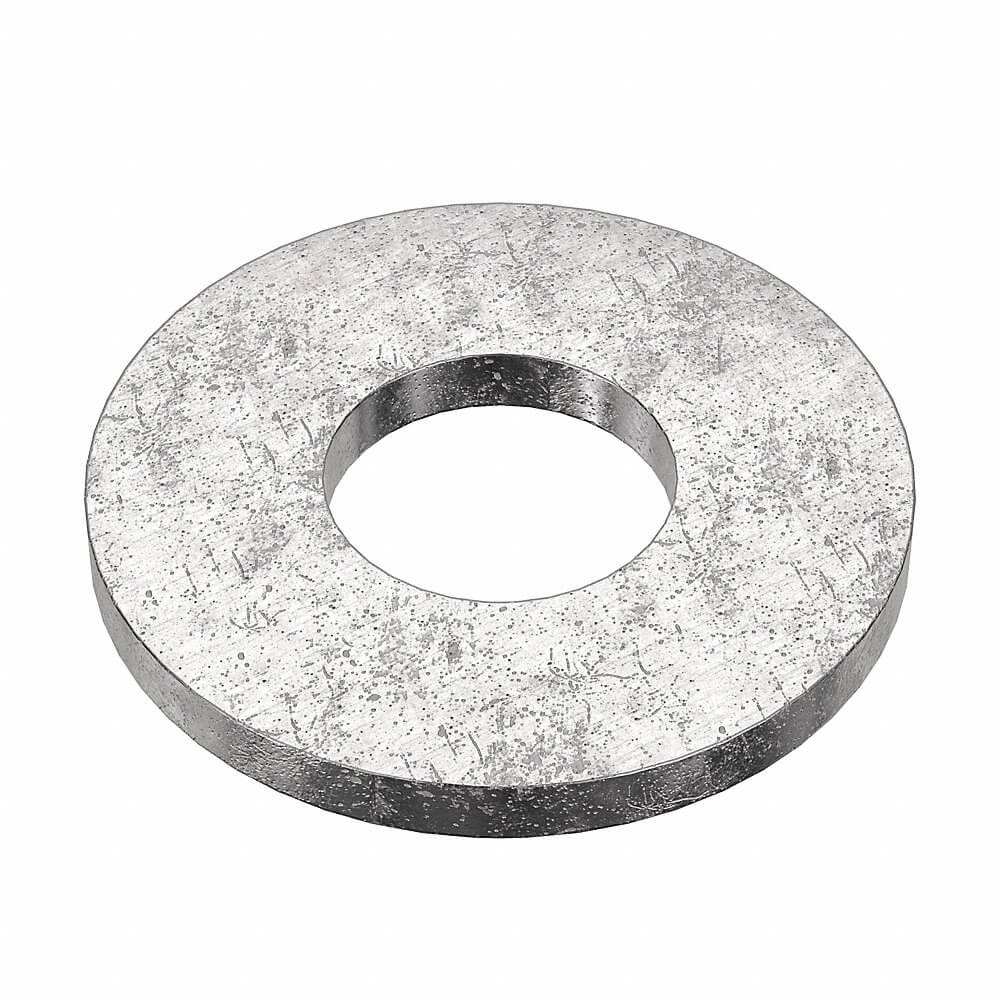

APPROVED VENDOR U51410.025.0002 Flat Washer, 1/4 In Fits Bolt Size, Std, 9/32 In I.D., 5/8 In O.D.
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€3.56 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Plain |
| Fits Bolt Sizes | 1/4" |
| Flat Washer Type | Standard |
| For Screw Size | 1/4" |
| Grade | Grade 18-8 |
| Inside Dia. | 9/32" |
| Inside Diameter | 0.281" |
| Inside Diameter Tolerance | -0.005" to +0.015" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 0.063" |
| Minimum Temperature | -58°F |
| Minimum Thickness | 0.034" |
| Outside Dia. | 5/8" |
| Outside Diameter Tolerance | -0.005" to +0.015" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.047" |
| Thickness Tolerance | +0.016", -0.013" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 16.51 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Tensile Strength | Resistance Properties | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51410.011.0002 | #4 | 1/8" | 5/16" | 1/32" | - | - | - | - | 50 | €5.63 | |
 |
U51410.013.0001 | #6 | 5/32" | 3/8" | 2/41" | +0.016", -0.013" | - | Not Applicable | Corrosion Resistant | 50 | €2.77 | |
 |
U51410.016.0002 | #8 | 3/16" | 7/16" | 2/41" | - | - | Not Applicable | - | 50 | €3.16 | |
 |
U51410.019.0002 | #10 | 7/32" | 1/2" | 2/41" | +0.016", -0.013" | - | Not Applicable | Corrosion Resistant | 50 | €10.56 | |
 |
U51410.043.0001 | 7/16" | 15/32" | 29/32" | 0.047" | +0.016", -0.013" | - | Not Applicable | Corrosion Resistant | 25 | €4.69 | |
 |
U51410.025.0005 | 1/4" | 0.313" | 3/4" | 0.047" | +0.016", -0.013" | - | Not Applicable | Corrosion Resistant | 50 | €6.93 | |
 |
U51410.031.0008 | 5/16" | 3/8" | 7/8" | 0.063" | +0.015", -0.014" | - | Not Applicable | Corrosion Resistant | 50 | €11.38 |
