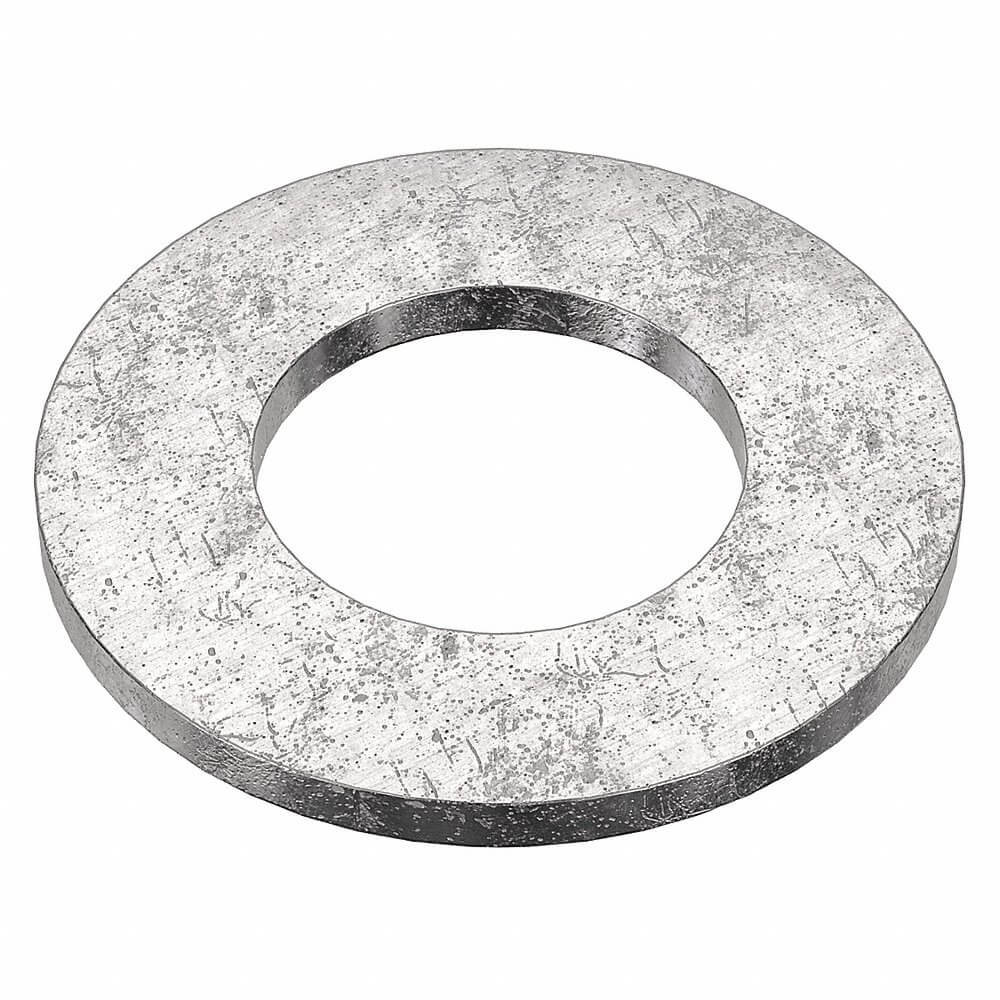

APPROVED VENDOR U51205.100.0001 Flat Washer, 1 In Fits Bolt Size, SAE, 1.063 In I.D., 2 In O.D., Plain
Item: AB8ETHModel: U51205.100.0001Cross Ref: 25DK39
7 In Stock
Ships within 2 days via
5.00% off
€8.06 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Asme B18.21.1, Sae |
| Finish | Plain |
| Fits Bolt Sizes | 1" |
| Flat Washer Type | SAE |
| For Screw Size | 1" |
| Grade | Grade 18-8 |
| Inside Dia. | 1.063" |
| Inside Diameter Tolerance | -0.007" to +0.03" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 4/25" |
| Minimum Temperature | -58°F |
| Minimum Thickness | 0.108" |
| Outside Dia. | 2" |
| Outside Diameter Tolerance | -0.007" to +0.030" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | Not Applicable |
| Thickness | 0.134" |
| Thickness Tolerance | -0.026" to +0.026" |
| Washer Type | SAE Washer |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Tensile Strength | Resistance Properties | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51205.025.0001 | 1/4" | 9/32" | 5/8" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 50 | €5.80 | |
 |
U51205.031.0001 | 5/16" | 11/32" | 11/16" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 50 | €5.42 | |
 |
U51205.037.0001 | 3/8" | 13/32" | 13/16" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 50 | €8.58 | |
 |
U51205.043.0001 | 7/16" | 15/32" | 71/77" | 0.065" | +0.015", -0.014" | Not Applicable | Corrosion Resistant | - | 25 | €5.67 | |
 |
U51205.050.0001 | 1/2" | 17/32" | 1 1/16" | 0.095" | +0.026", -0.021" | Not Applicable | Corrosion Resistant | - | 25 | €19.91 | |
 |
U51205.056.0001 | 9/16" | 19/32" | 1.156" | 0.095" | +0.026", -0.021" | Not Applicable | Corrosion Resistant | - | 25 | €10.36 | |
 |
U51205.062.0001 | 5/8" | 21/32" | 1 5/16" | 0.095" | +0.026", -0.021" | Not Applicable | Corrosion Resistant | - | 25 | €16.67 |
