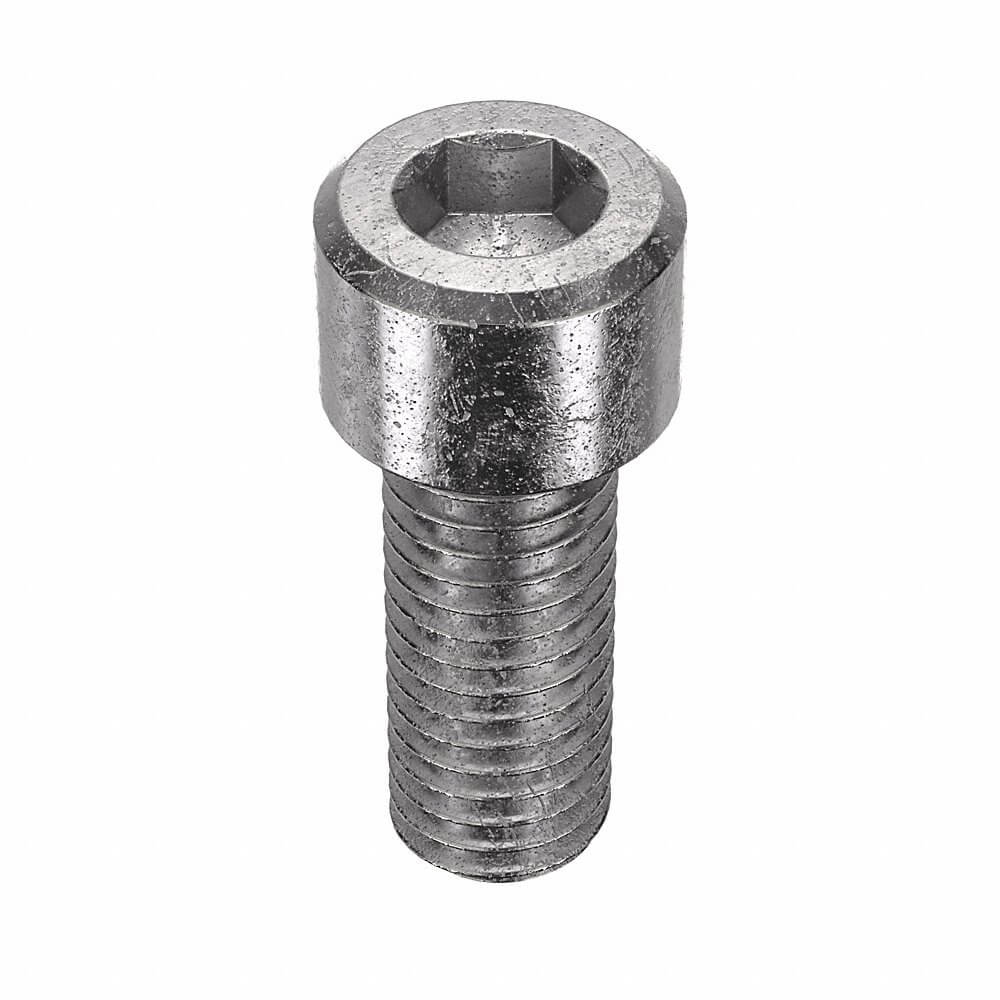

APPROVED VENDOR U51050.050.0125 Socket Head Cap Screw, 1/2 In - 13 Thread Size, Cyl., 1 1/4 In Lg., 1/2 In Head Ht., Pln, Gr. 18-8, SS
Item: AF2QCWModel: U51050.050.0125Cross Ref: 6XB95
7 In Stock
Ships within 2 days via
10.00% off
€17.52 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Color | Silver |
| Combined Material & Grade | 18-8 Stainless Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 3/8" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80-C32 |
| Head Dia. | 3/4" |
| Head Height | 1/2" |
| Head Texture | Knurled |
| Head Type | Standard |
| Includes Washer | No |
| Length | 1 1/4" |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm A307A |
| Material Type | Stainless Steel |
| Maximum Head Height | 12.7 mm |
| Maximum Temperature | 300°F |
| Min. Head Height | 12.5 mm |
| Min. Tensile Strength | 80000 psi |
| Minimum Temperature | -65°F |
| Minimum Thread Length | 1 1/4" |
| Minimum Yield Strength | 81000 psi |
| Non-marring Tip | No |
| Proof Load | 74000 psi |
| Screw Length | 1 1/4" |
| Sealing Gasket | No |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +300°F |
| Tensile Strength | 80000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1 1/4" |
| Thread Size | 1/2"-13 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158030 |
| Country of Origin | TW |
