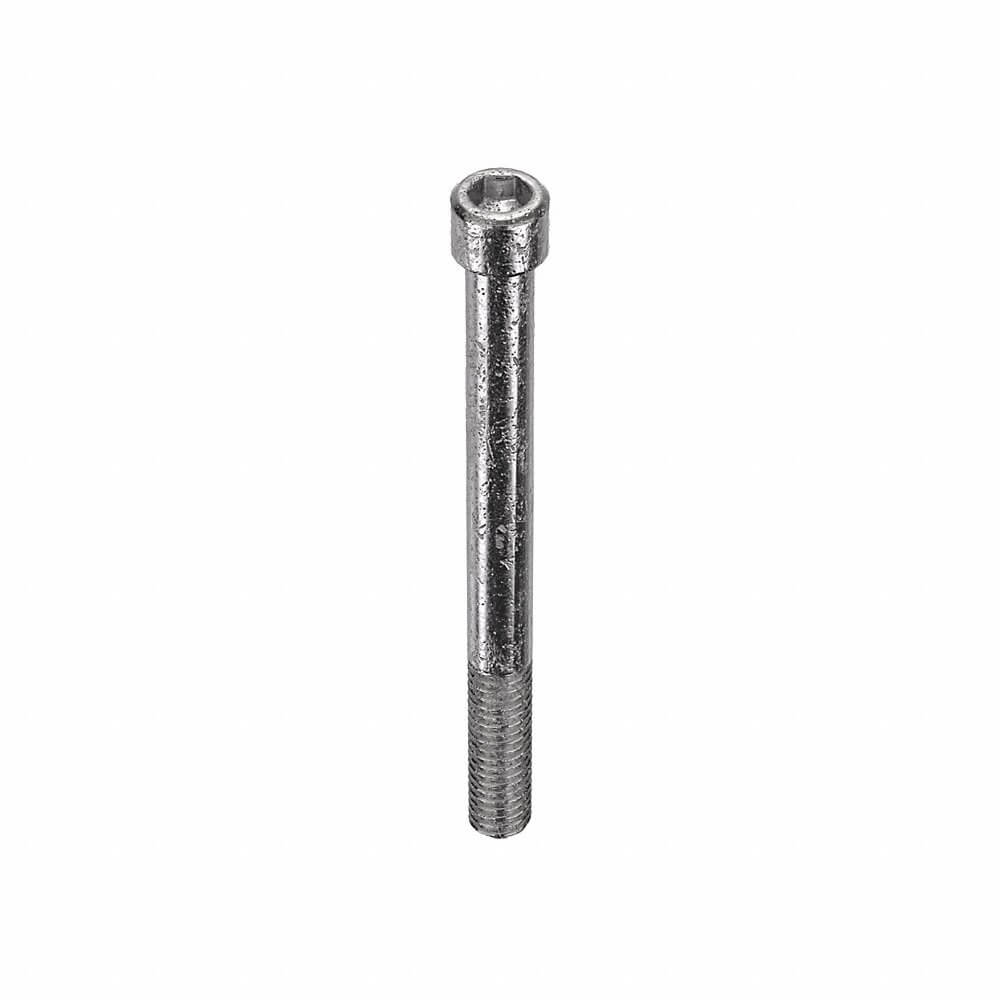

APPROVED VENDOR U51050.031.0350 Socket Head Cap Screw, 5/16 In - 18 Thread Size, Cyl., 3 1/2 In Lg., 5/16 In Head Ht., Pln, Gr. 18-8, SS
Get it by Tuesday, Mar 3
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€33.89 /pkg. of 25
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Head Cap Screw |
| Color | Silver |
| Combined Material & Grade | 18-8 Stainless Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 25 |
| Drive Size | 1/4" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80-C32 |
| Head Dia. | 0.469" |
| Head Height | 0.312" |
| Head Texture | Knurled |
| Head Type | Standard |
| Includes Washer | No |
| Length | 3 1/2" |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm F837 |
| Material Type | Stainless Steel |
| Maximum Head Height | 7.92 mm |
| Maximum Temperature | 550°F |
| Min. Tensile Strength | 85000 psi |
| Minimum Head Height | 7.78 mm |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 1 1/8" |
| Minimum Yield Strength | 81000 psi |
| Non-marring Tip | No |
| Proof Load | 74000 psi |
| Screw Length | 3 1/2" |
| Sealing Gasket | No |
| System Of Measurement | Imperial |
| Temp. Range | -50°F to +550°F |
| Tensile Strength | 85000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1 1/8" |
| Thread Size | 5/16"-18 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158030 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51041.006.0012 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 1/8" | 80000 psi | Rockwell B80-C32 | 100 | €16.27 | |
 |
U51041.006.0018 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 3/16" | 80000 psi | Rockwell B80-C32 | 100 | €15.05 | |
 |
U51041.006.0025 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 1/4" | 80000 psi | Rockwell B80-C32 | 100 | €17.43 | |
 |
U51041.006.0031 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 5/16" | 80000 psi | Rockwell B80-C32 | 100 | €14.59 | |
 |
U51041.006.0037 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 3/8" | 80000 psi | Rockwell B80-C32 | 100 | €18.75 | |
 |
U51041.006.0050 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 1/2" | 80000 psi | Rockwell B80-C32 | 100 | €37.29 | |
 |
U51041.007.0012 | #1-72 | Fully Threaded | 1/16" | 0.118" | 0.073" | 1/8" | 80000 psi | Rockwell B80-C32 | 100 | €25.65 |
