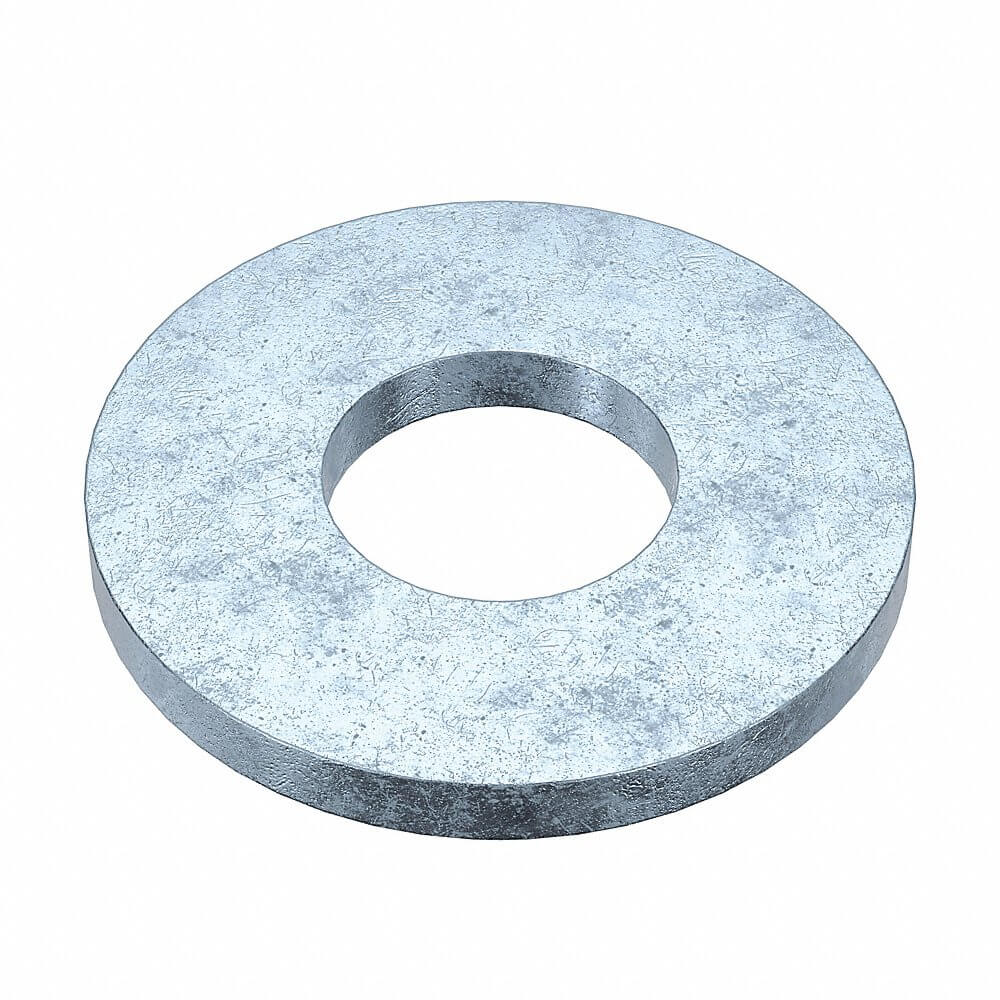

APPROVED VENDOR U38400.031.0001 Flat Washer, 5/16 In Fits Bolt Size, Std, 11/32 In I.D., 5/8 In O.D.
Item: AB7EJDModel: U38400.031.0001Cross Ref: 22UG99
7 In Stock
Ships within 2 days via
10.00% off
€4.34 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 5/16" |
| Flat Washer Type | Standard |
| For Screw Size | 5/16" |
| Inside Dia. | 11/32" |
| Inside Diameter | 0.344" |
| Inside Diameter Tolerance | 0.339" to 0.359" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.063" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.063" |
| Outside Dia. | 5/8" |
| Outside Diameter Tolerance | 0.618" to 0.655" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.063" |
| Thickness Tolerance | 0.051" to 0.08" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 5.08 |
| HS code | 7318220000 |
| Country of Origin | TW |
