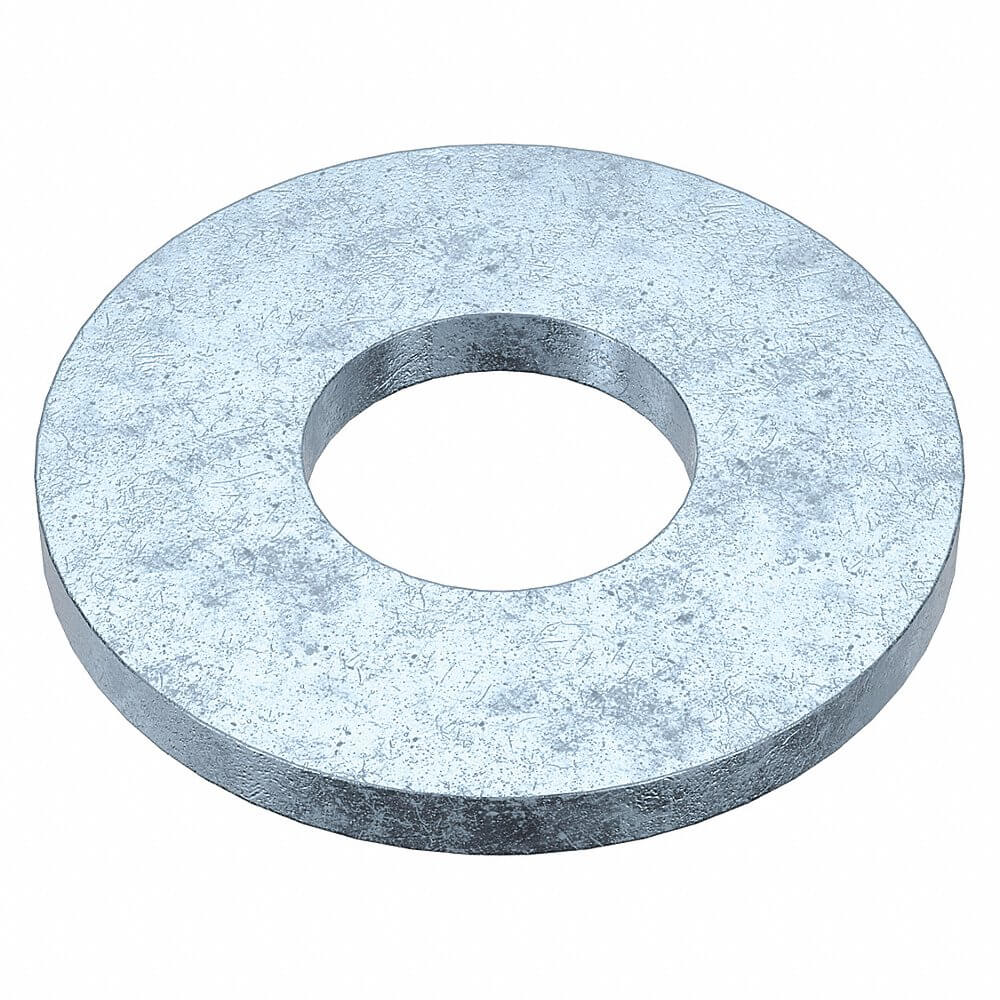

APPROVED VENDOR U38400.025.0002 Flat Washer, 1/4 In Fits Bolt Size, Std, 9/32 In I.D., 23/32 In O.D.
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€7.52 /pkg. of 100
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 1/4" |
| Flat Washer Type | Standard |
| For Screw Size | 1/4" |
| Inside Dia. | 9/32" |
| Inside Diameter | 0.281" |
| Inside Diameter Tolerance | 0.276" to 0.296" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.063" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.063" |
| Outside Dia. | 23/32" |
| Outside Diameter Tolerance | 0.714" to 0.734" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.063" |
| Thickness Tolerance | 0.051" to 0.08" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WASB#0NZ | #0 | 0.068" | 1/8" | 0.028" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €8.39 | |
 |
WASB#0RZ | #0 | 0.068" | 3/16" | 0.028" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €9.71 | |
 |
WASB#0WZ | #0 | 0.068" | 1/4" | 0.028" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €10.26 | |
 |
WASB#10NZ | #10 | 0.203" | 13/32" | 0.045" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €14.13 | |
 |
WASB#10RZ | #10 | 0.203" | 9/16" | 0.045" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €16.28 | |
 |
WASB#10WZ | #10 | 0.203" | 47/64" | 0.071" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €15.50 | |
 |
WASB#1NZ | #1 | 0.084" | 5/32" | 0.028" | -0.014" to +0.005" | Rockwell B55 | - | - | 50 | €6.62 |
