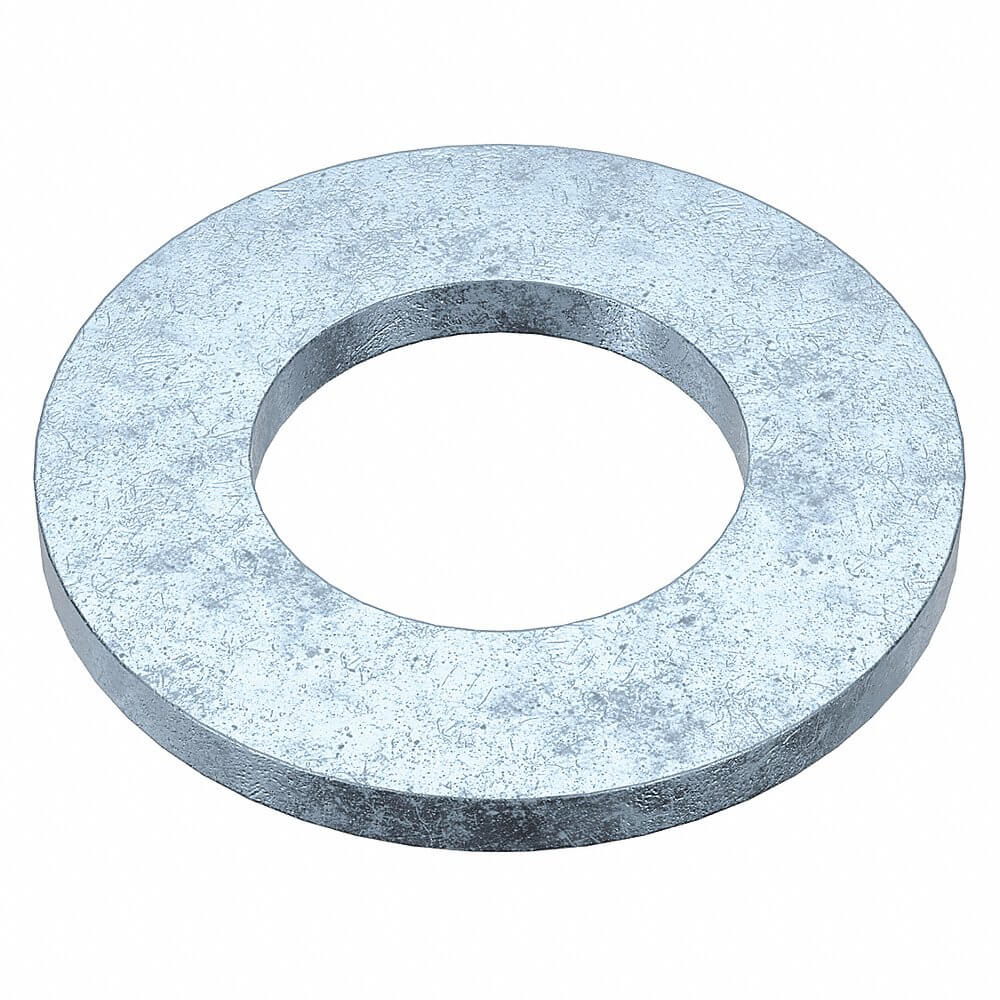

APPROVED VENDOR U38205.087.0001 SAE Washer, 7/8 In Fits Bolt Size, 15/16 In I.D., 1 3/4 In O.D., 0.14 In Thk., 0.108 to 0.16 In Thk. Tol., Zn Plated, Steel
Item: AA9ZAXModel: U38205.087.0001Cross Ref: 1JY86
7 In Stock
Ships within 2 days via
5.00% off
€6.74 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | SAE Washer |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1, Sae |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 7/8" |
| Flat Washer Type | SAE |
| For Screw Size | 7/8" |
| Inside Dia. | 15/16" |
| Inside Diameter | 0.938" |
| Inside Diameter Tolerance | 0.931" to 0.968" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.141" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.141" |
| Outside Dia. | 1 3/4" |
| Outside Diameter Tolerance | 1.743" to 1.78" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.14" |
| Thickness Tolerance | 0.108" to 0.16" |
| Washer Type | SAE Washer |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38400.016.0001 | #8 | 3/16" | 7/16" | 3/64" | 0.036" to 0.065" | - | Silver | - | 100 | €4.12 | |
 |
U38400.019.0004 | #10 | 7/32" | 1/2" | 3/64" | 0.036" to 0.065" | - | Silver | - | 100 | €4.29 | |
 |
U38205.025.0001 | 1/4" | 9/32" | 5/8" | 1/16" | 0.051" to 0.08" | - | Silver | - | 100 | €5.87 | |
 |
U38205.031.0001 | 5/16" | 11/32" | 11/16" | 1/16" | 0.051" to 0.08" | - | Silver | - | 100 | €7.24 | |
 |
U38205.037.0001 | 3/8" | 13/32" | 13/16" | 1/16" | 0.051" to 0.08" | - | Silver | - | 100 | €8.54 | |
 |
U38400.043.0002 | 7/16" | 15/32" | 59/64" | 1/16" | 0.051" to 0.08" | - | Silver | - | 50 | €6.11 | |
 |
U38205.050.0001 | 1/2" | 17/32" | 1 1/16" | 3/32" | 0.074" to 0.121" | - | Silver | - | 50 | €9.21 |
