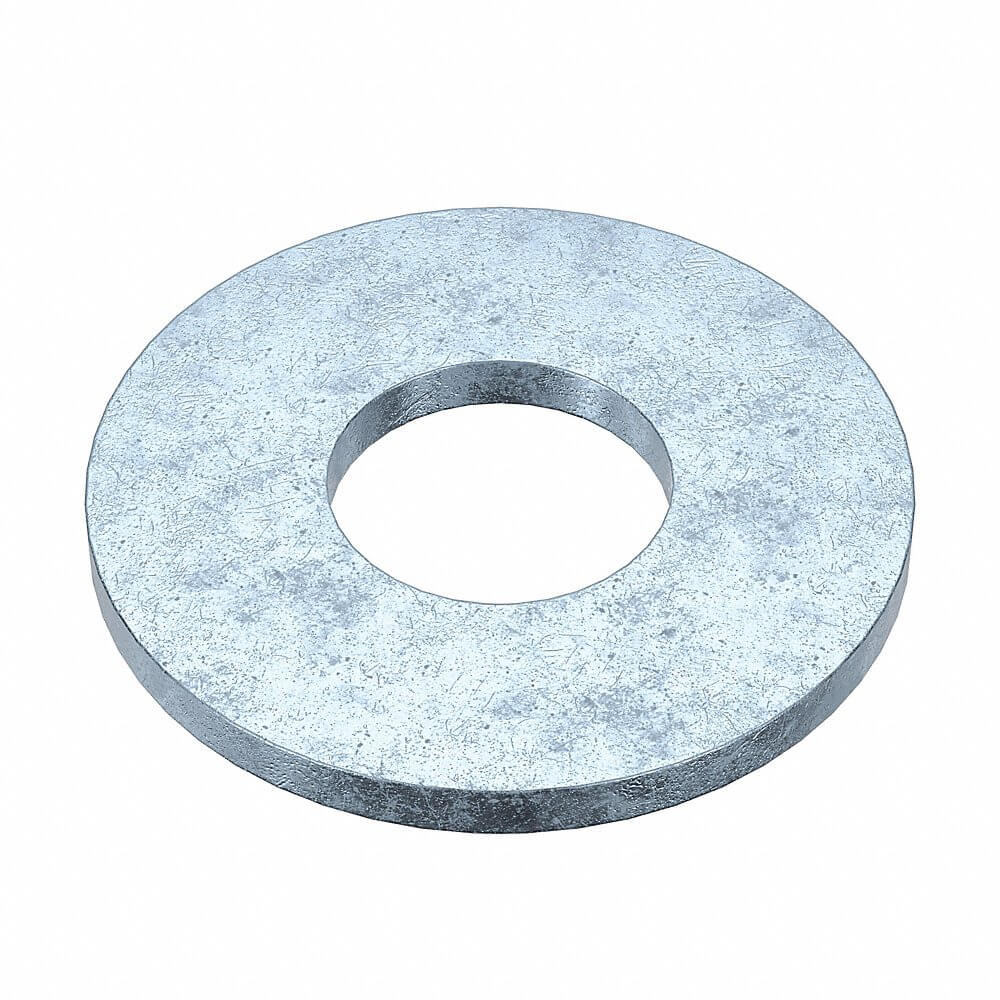

APPROVED VENDOR U38160.087.0003 Fender Washer, 7/8 In Fits Bolt Size, Oversized, 15/16 In I.D., 1/4 In Thk.
Item: AB7ECUModel: U38160.087.0003Cross Ref: 22UF64
7 In Stock
Ships within 2 days via
10.00% off
€42.72 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 7/8" |
| Flat Washer Type | Oversized |
| For Screw Size | 7/8" |
| Inside Dia. | 15/16" |
| Inside Diameter | 0.938" |
| Inside Diameter Tolerance | 0.931" to 0.953" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 1/4" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 1/4" |
| Outside Dia. | 3 1/4" |
| Outside Diameter Tolerance | 3.243" to 3.265" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
| Thickness Tolerance | 0.224" to 0.276" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 2.27 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
