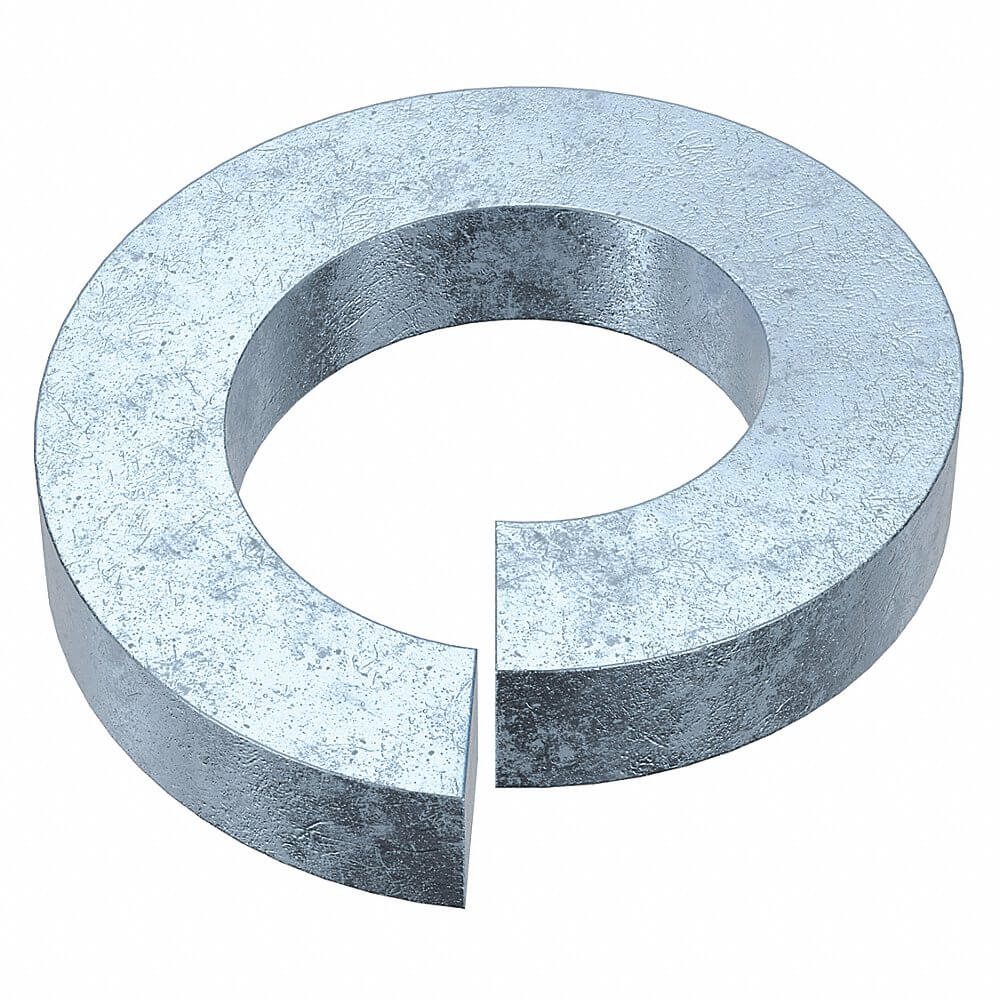

APPROVED VENDOR U37183.075.0001 Split Lock Washer, 3/4 In Fits Bolt Size, 1.285 In O.D., 0.226 In Thk.
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€6.41 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Split Lock Washer |
| Class | Not Applicable |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 3/4" |
| For Screw Size | 3/4" |
| Grade | Non Graded |
| Hardness | Rockwell C38-C46 |
| Inside Dia. | 0.753" |
| Inside Diameter Tolerance | -0.005" to +0.005" |
| Lock Washer Type | Split Lock |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Astm A307A, Sae J429 |
| Maximum Temperature | 275°F |
| Maximum Thickness | 0.226" |
| Minimum Temperature | 10°F |
| Minimum Thickness | 0.226" |
| Outside Dia. | 1.285" |
| Outside Diameter Tolerance | -0.01" to +0.01" |
| Removable | Yes |
| Rockwell Hardness | C38 |
| System Of Measurement | Imperial |
| Thickness | 0.226" |
| Thickness Tolerance | -0.005" to +0.005" |
| Type | Split Lock |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318210090 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Hardness | Thickness | Color | Thickness Tolerance | For Screw Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U37020.008.0001 | #2 | 0.088" | 0.172" | Rockwell C40-C50 | 0.02" | - | - | #2 | 100 | €4.76 | |
 |
U37020.009.0001 | #3 | 0.101" | 0.195" | Rockwell C40-C50 | 0.025" | - | - | #3 | 100 | €4.66 | |
 |
U37020.011.0001 | #4 | 0.114" | 0.209" | Rockwell C38 | 0.025" | Silver | -0.005" to +0.005" | #4 | 100 | €2.35 | |
 |
U37020.012.0001 | #5 | 0.127" | 0.236" | Rockwell C40-C50 | 0.031" | - | - | #5 | 100 | €3.13 | |
 |
U37020.175.0001 | 1 3/4" | 1.758" | 2.679" | Rockwell C40-C50 | 0.389" | - | - | 1 3/4" | 5 | €22.86 | |
 |
U37020.200.0001 | 2" | 2.008" | 2.936" | Rockwell C40-C50 | 0.422" | - | - | 2" | 5 | €31.16 | |
 |
U37171.011.0001 | #4 | 0.114" | 0.253" | Rockwell C40-C50 | 0.034" | - | - | #4 | 100 | €10.59 |
