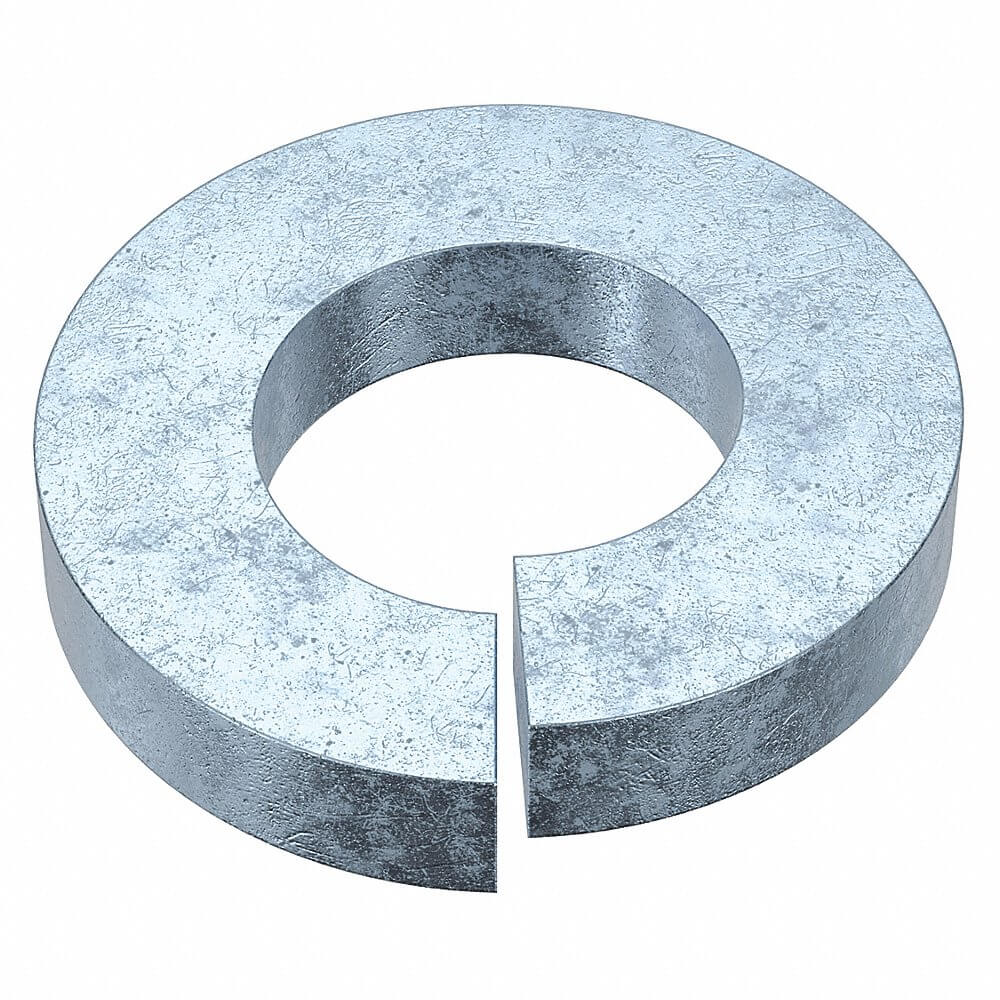

APPROVED VENDOR U37171.043.0001 Split Lock Washer, 7/16 In Fits Bolt Size, 0.836 In O.D., Zn Plated
Item: AB7ENMModel: U37171.043.0001Cross Ref: 22UJ03
7 In Stock
Ships within 2 days via
10.00% off
€4.16 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Lock Washer |
| Class | Not Applicable |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | 7/16" |
| For Screw Size | 7/16" |
| Grade | Non Graded |
| Hardness | Rockwell C38-C46 |
| Inside Dia. | 11/25" |
| Inside Diameter | 0.44" |
| Inside Diameter Tolerance | -0.005" to +0.005" |
| Lock Washer Type | Split Lock |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Astm A307A, Sae J429 |
| Maximum Temperature | 275°F |
| Maximum Thickness | 0.143" |
| Minimum Temperature | 10°F |
| Minimum Thickness | 0.143" |
| Outside Dia. | 0.836" |
| Outside Diameter Tolerance | -0.01" to +0.01" |
| Removable | Yes |
| Rockwell Hardness | C38 |
| System Of Measurement | Imperial |
| Thickness | 0.143" |
| Thickness Tolerance | -0.005" to +0.005" |
| Type | Split Lock |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318210090 |
| Country of Origin | TW |
