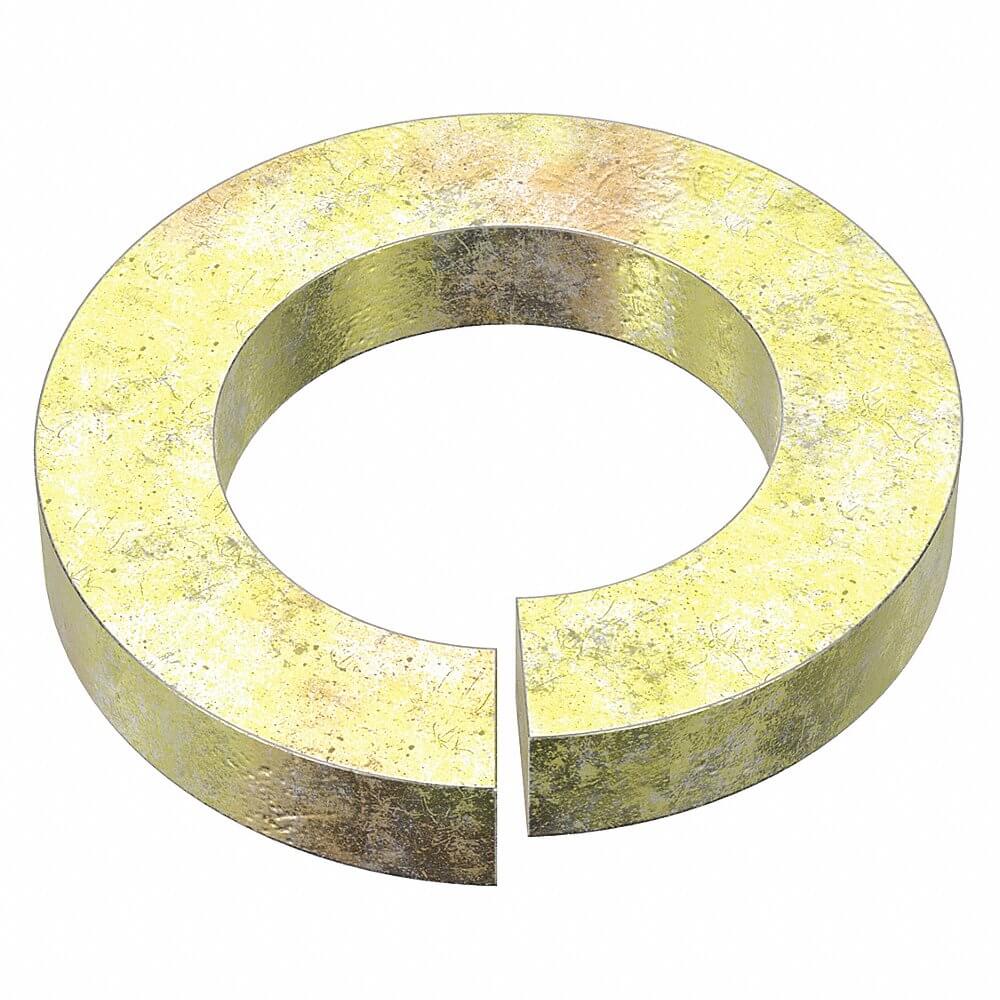

APPROVED VENDOR U37060.112.0001 Split Lock Washer, 1 1/8 In Fits Bolt Size, 1.847 In O.D., Not Gr.
Item: AB7EQTModel: U37060.112.0001Cross Ref: 22UJ55
7 In Stock
Ships within 2 days via
5.00% off
€7.91 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Lock Washer |
| Class | Not Applicable |
| Color | Yellow |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Zinc Yellow |
| Fits Bolt Sizes | 1 1/8" |
| For Screw Size | 1 1/8" |
| Grade | Non Graded |
| Hardness | Rockwell C46 |
| Inside Dia. | 1.129" |
| Inside Diameter Tolerance | -0.005" to +0.005" |
| Lock Washer Type | Split Lock |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Astm A307A, Sae J429 |
| Maximum Temperature | 275°F |
| Maximum Thickness | 0.281" |
| Minimum Temperature | 10°F |
| Minimum Thickness | 0.281" |
| Outside Dia. | 1.847" |
| Outside Diameter Tolerance | -0.01" to +0.01" |
| Reach Compliant | No |
| Removable | Yes |
| Rockwell Hardness | C46 |
| System Of Measurement | Imperial |
| Thickness | 0.281" |
| Thickness Tolerance | -0.005" to +0.005" |
| Type | Split Lock |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318210090 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Hardness | Thickness | For Screw Size | Class | Color | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U37060.137.0001 | 1 3/8" | 1.379" | 2.219" | Rockwell C40-C50 | 0.344" | 1 3/8" | Not Applicable | - | 5 | €71.11 | |
 |
U37060.150.0001 | 1 1/2" | 1.504" | 2.419" | Rockwell C40-C50 | 3/8" | 1 1/2" | Not Applicable | - | 5 | €65.24 | |
 |
U37060.037.0001 | 3/8" | 0.377" | 17/25" | Rockwell C38-C46 | 3/32" | 3/8" | Not Applicable | Yellow | 50 | €3.79 | |
 |
U37060.043.0001 | 7/16" | 11/25" | 0.77" | Rockwell C38-C46 | 0.109" | 7/16" | Not Applicable | Yellow | 25 | €3.47 | |
 |
U37060.050.0001 | 1/2" | 0.502" | 0.869" | Rockwell C38-C46 | 1/8" | 1/2" | Not Applicable | Yellow | 25 | €5.11 | |
 |
U37060.056.0001 | 9/16" | 0.564" | 0.965" | Rockwell C38-C46 | 0.141" | 9/16" | Not Applicable | Yellow | 25 | €6.74 | |
 |
U37060.062.0001 | 5/8" | 0.628" | 1.073" | Rockwell C38-C46 | 0.156" | - | Not Applicable | Yellow | 10 | €3.70 |
