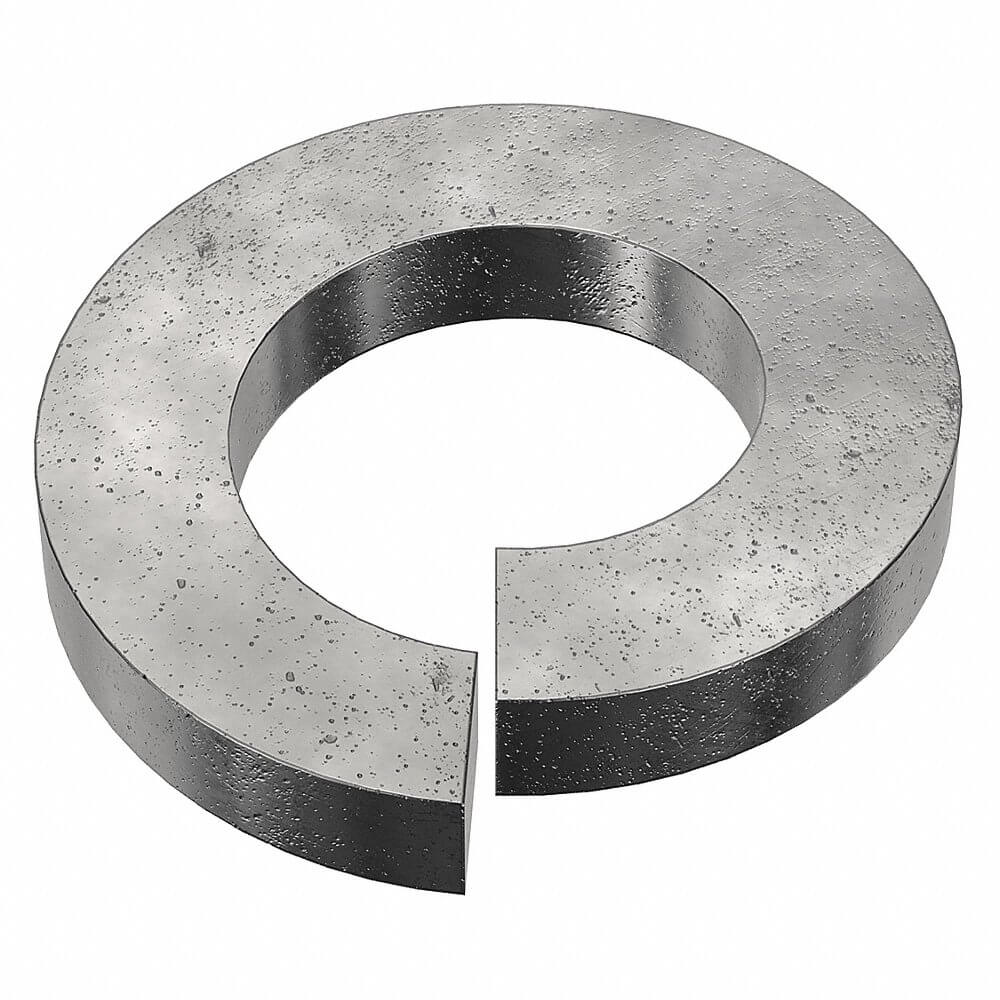

APPROVED VENDOR U37000.050.0001 Split Lock Washer, 1/2 In Bolt Size, Split Lock, 0.869 In O.D., 1/8 In Thk.
Item: AB7EKNModel: U37000.050.0001Cross Ref: 22UH34
7 In Stock
Ships within 2 days via
5.00% off
€3.91 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Lock Washer |
| Class | Not Applicable |
| Color | Black |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Black Oxide |
| Fits Bolt Size | 1/2" |
| For Screw Size | 1/2" |
| Grade | Non Graded |
| Hardness | Rockwell C38-C46 |
| Inside Dia. | 0.502" |
| Inside Dia. Tolerance | -0.005" to +0.005" |
| Lock Washer Type | Split Lock |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Astm A307A, Sae J429 |
| Max. Temp. | 275°F |
| Max. Thickness | 1/8" |
| Min. Temp. | 10°F |
| Min. Thickness | 1/8" |
| Outside Dia. | 0.869" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Removable | Yes |
| Rockwell Hardness | C38 |
| System Of Measurement | Imperial |
| Thickness | 1/8" |
| Thickness Tolerance | -0.005" to +0.005" |
| Type | Split Lock |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318210030 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | For Screw Size | Max. Thickness | Thickness Tolerance | Min. Thickness | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U37000.008.0001 | #2 | 0.02" | #2 | 0.02" | - | 0.02" | - | - | 100 | €3.50 | |
 |
U37000.009.0001 | #3 | 0.025" | #3 | 0.025" | - | 0.025" | - | - | 100 | €3.75 | |
 |
U37000.011.0001 | #4 | 0.025" | #4 | 0.025" | - | 0.025" | - | - | 100 | €1.25 | |
 |
U37000.012.0001 | #5 | 0.031" | #5 | 0.031" | - | 0.031" | - | - | 100 | €2.81 | |
 |
U37000.013.0001 | #6 | 0.031" | #6 | 0.031" | - | 0.031" | - | - | 100 | €1.48 | |
 |
U37000.016.0001 | #8 | 1/25" | #8 | 1/25" | - | 1/25" | - | - | 100 | €1.92 | |
 |
U37000.019.0001 | #10 | 0.047" | #10 | 0.047" | - | 0.047" | - | - | 100 | €2.24 |
