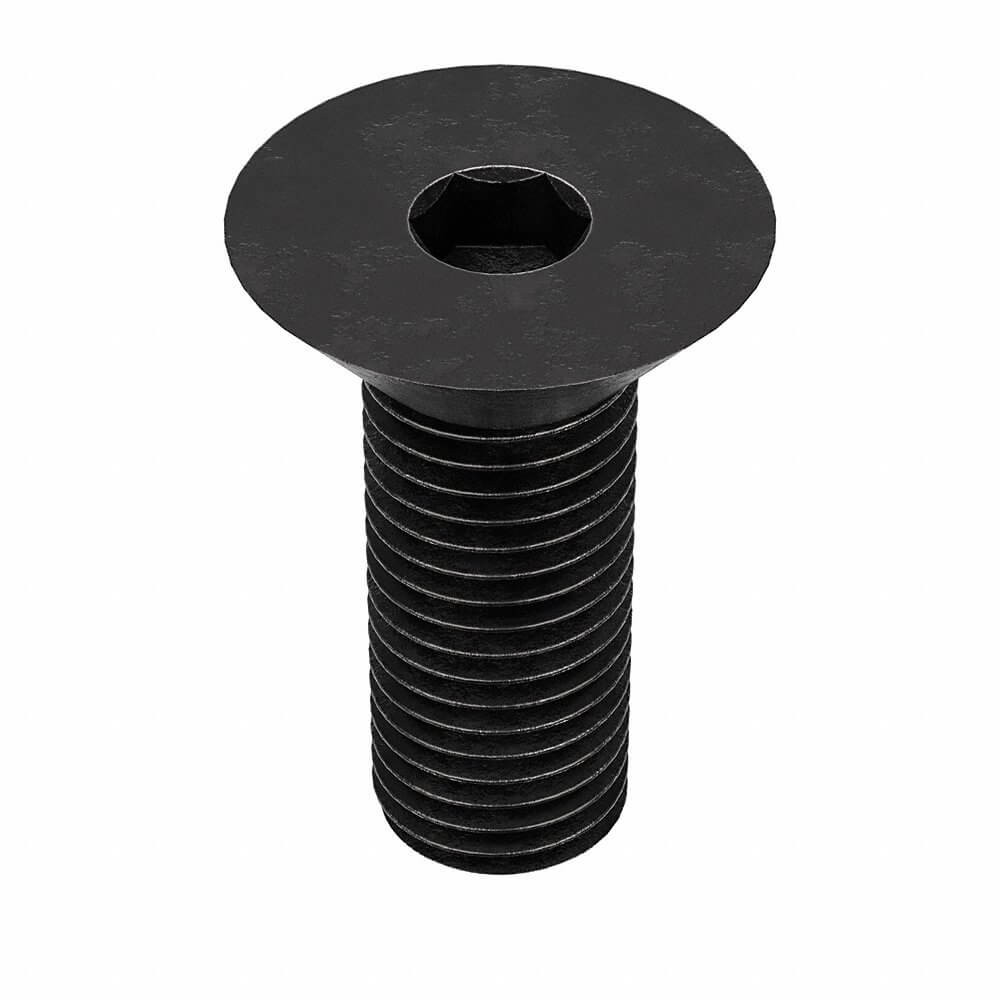

APPROVED VENDOR U07410.087.0200 Socket Head Cap Screw, 7/8 In - 9 Thread Size, Flat, 2 In Lg., 0.468 In Head Ht., Coarse
Item: AB8MXKModel: U07410.087.0200Cross Ref: 26LA49
7 In Stock
Ships within 2 days via
10.00% off
€84.26 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Countersink Angle | 82° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 5 |
| Drive Size | 9/16" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C44 |
| Head Dia. | 1.688" |
| Head Height | 0.468" |
| Head Type | Flat |
| Length | 2" |
| Material | Steel |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 135000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 2" |
| Screw Length | 2" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 135000 psi |
| Thread Direction | Right Hand |
| Thread Length | 2" |
| Thread Size | 7/8"-9 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
