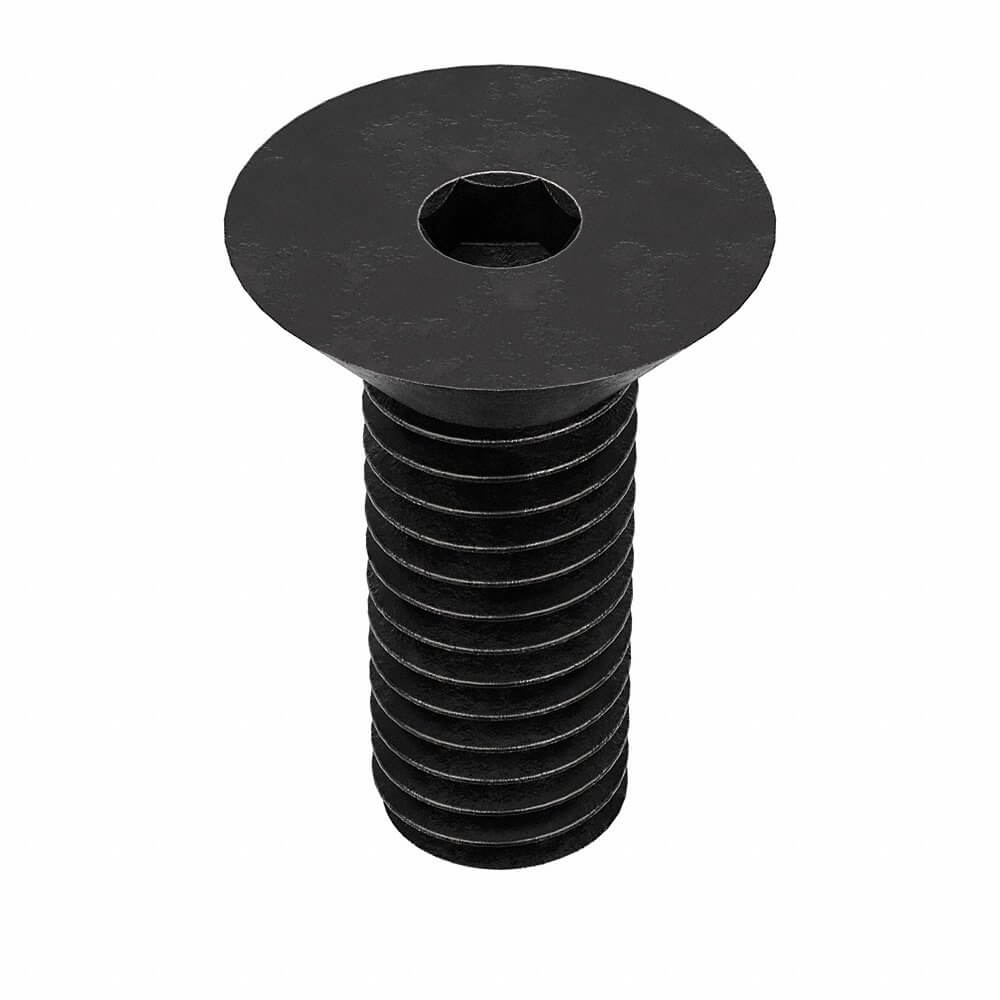

APPROVED VENDOR U07410.043.0100 Socket Head Cap Screw, 7/16 In - 14 Thread Size, Flat, 1 In Lg., 0.234 In Head Ht., Coarse
Get it by Tuesday, Mar 3
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€27.43 /pkg. of 25
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Countersink Angle | 82° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 25 |
| Drive Size | 1/4" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C44 |
| Head Dia. | 0.844" |
| Head Height | 0.234" |
| Head Type | Flat |
| Length | 1" |
| Material | Steel |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 135000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 1" |
| Screw Length | 1" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 135000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Size | 7/16"-14 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07410.008.0012 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 1/8" | 135000 psi | Rockwell C37-C44 | 100 | €62.92 | |
 |
U07410.008.0018 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 3/16" | 135000 psi | Rockwell C37-C44 | 100 | €29.15 | |
 |
U07410.008.0025 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 1/4" | 135000 psi | Rockwell C37-C44 | 100 | €23.35 | |
 |
U07410.008.0031 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 5/16" | 135000 psi | Rockwell C37-C44 | 100 | €37.35 | |
 |
U07410.008.0037 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 3/8" | 135000 psi | Rockwell C37-C44 | 100 | €29.15 | |
 |
U07410.008.0050 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 1/2" | 135000 psi | Rockwell C37-C44 | 100 | €32.07 | |
 |
U07410.008.0062 | #2-56 | Fully Threaded | 0.05" | 3/16" | 0.046" | 5/8" | 135000 psi | Rockwell C37-C44 | 100 | €48.78 |
