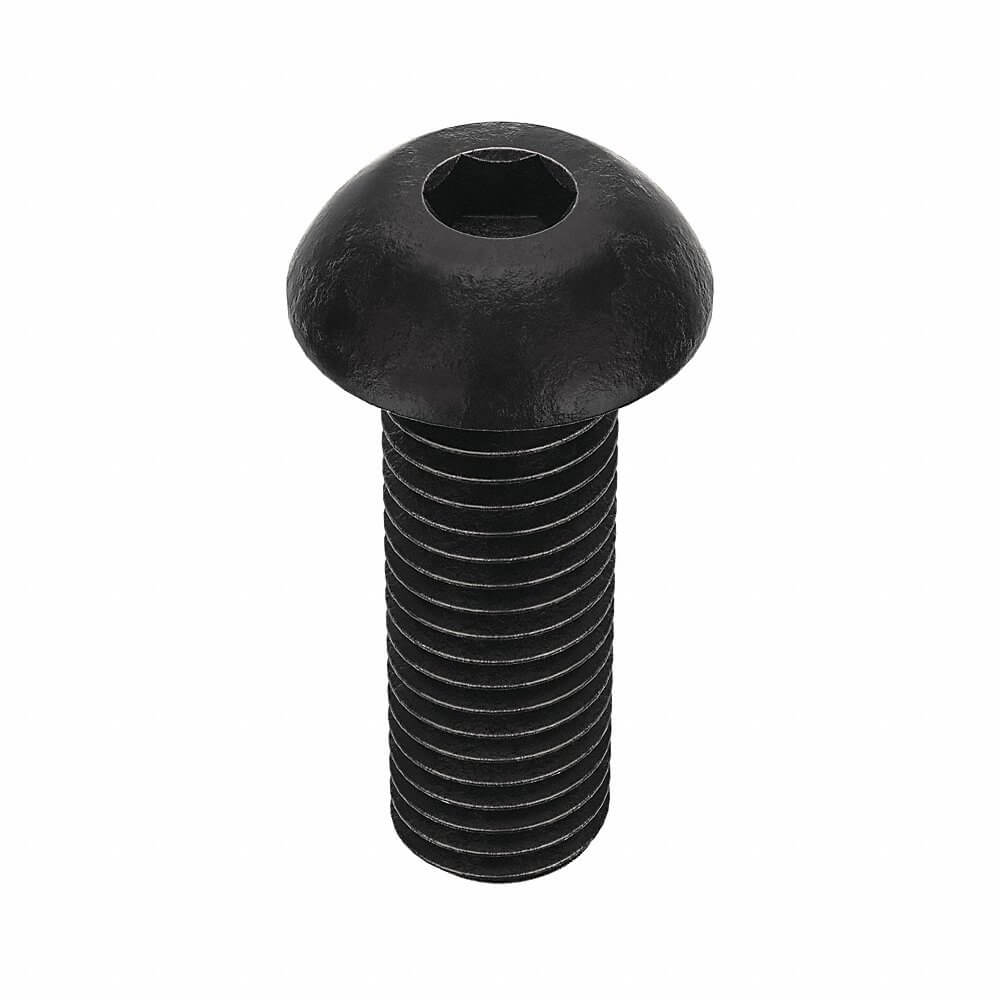

APPROVED VENDOR U07230.025.0075 Socket Head Cap Screw, 1/4 In - 28 Thread Size, Button, 3/4 In Lg., 0.132 In Head Ht., Fine
Item: AA9AYUModel: U07230.025.0075Cross Ref: 1BY65
7 In Stock
Ships within 2 days via
10.00% off
€36.95 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C44 |
| Head Dia. | 7/16" |
| Head Diameter | 0.437" |
| Head Height | 0.132" |
| Head Type | Button |
| Length | 3/4" |
| Material | Steel |
| Material Quality Standards | Astm F835 |
| Material Type | Steel |
| Maximum Temperature | 300°F |
| Min. Tensile Strength | 145000 psi |
| Minimum Temperature | -65°F |
| Minimum Thread Length | 3/4" |
| Screw Length | 3/4" |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +300°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/4" |
| Thread Size | 1/4"-28 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
