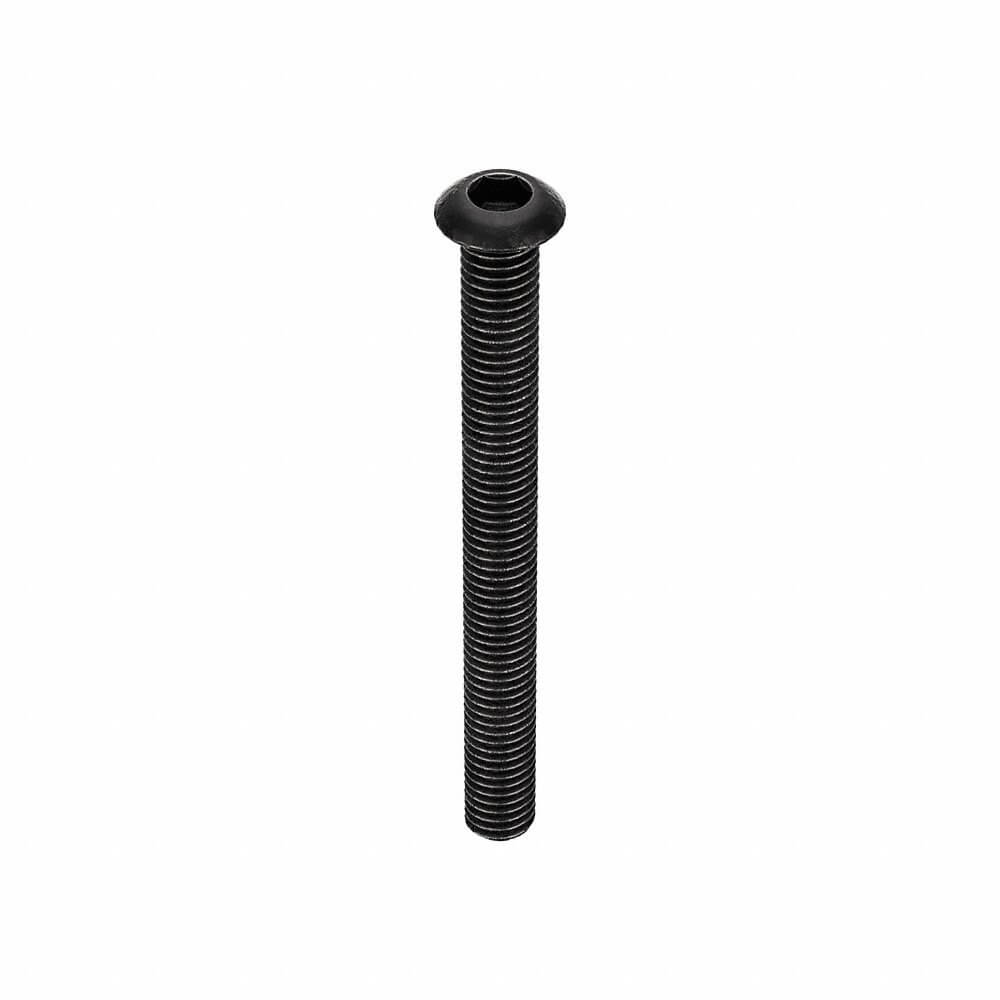

APPROVED VENDOR U07230.019.0200 Socket Head Cap Screw, 10-32 Thread Size, Button, 2 In Lg., 0.101 In Head Ht., Steel
Get it by Wednesday, Feb 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€37.44 /pkg. of 100
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 1/8" |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 0.361" |
| Head Height | 0.101" |
| Head Type | Button |
| Length | 2" |
| Material | Steel |
| Material Quality Standards | Astm F835 |
| Material Type | Steel |
| Maximum Temperature | 550°F |
| Min. Tensile Strength | 145000 psi |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 2" |
| Screw Length | 2" |
| System Of Measurement | Imperial |
| Temp. Range | -50°F to +550°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 2" |
| Thread Size | #10-32 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318159000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07150.019.0200 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 2" | 145000 psi | Rockwell C37-C45 | 100 | €21.00 | |
 |
U07150.031.0100 | 5/16"-18 | Fully Threaded | 3/16" | 0.547" | 0.166" | 1" | 145000 psi | Rockwell C37-C45 | 50 | €23.47 | |
 |
U07150.037.0150 | 3/8"-16 | Fully Threaded | 7/32" | 0.656" | 0.199" | 1 1/2" | 145000 psi | Rockwell C37-C45 | 25 | €18.11 | |
 |
U07150.050.0075 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 3/4" | 145000 psi | Rockwell C37-C45 | 10 | €16.20 | |
 |
U07150.050.0100 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1" | 145000 psi | Rockwell C37-C45 | 10 | €17.41 | |
 |
U07150.050.0125 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1 1/4" | 145000 psi | Rockwell C37-C45 | 10 | €14.13 | |
 |
U07150.050.0150 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1 1/2" | 145000 psi | Rockwell C37-C45 | 10 | €16.52 |
