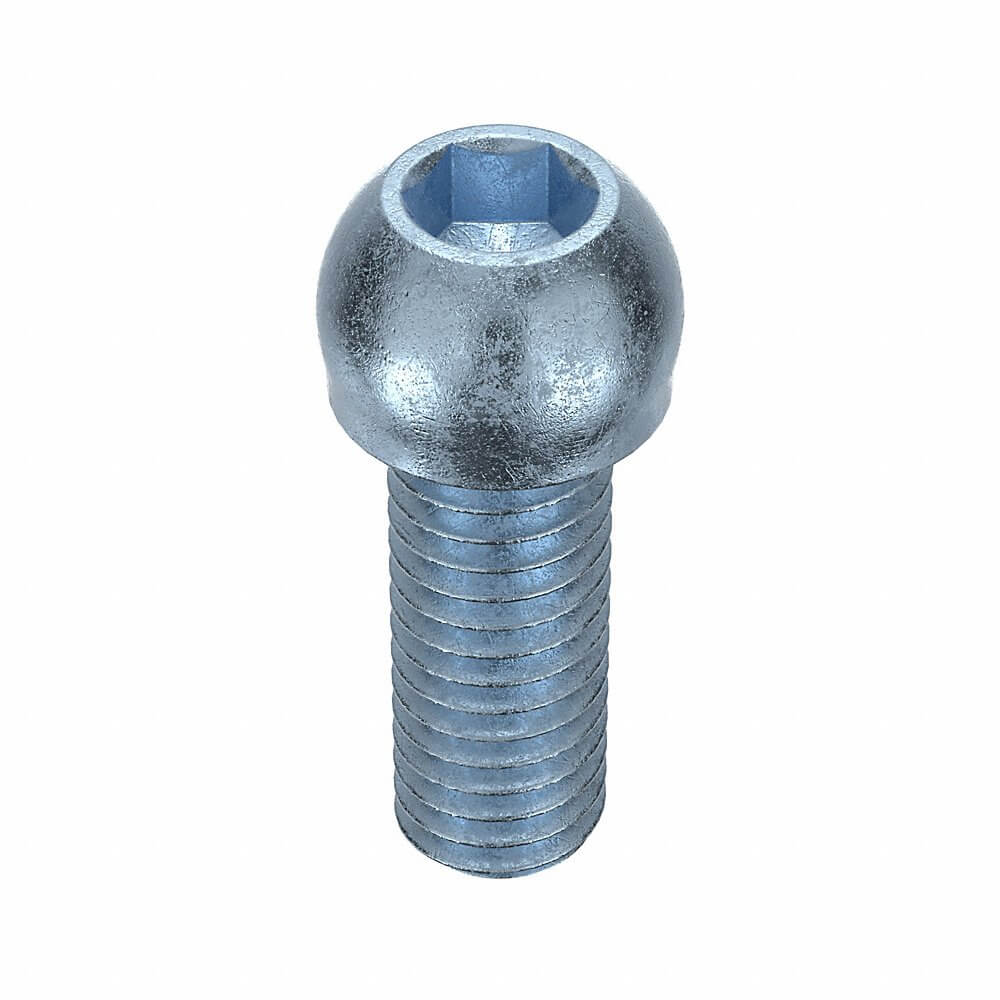

APPROVED VENDOR U07151.037.0100 Socket Head Cap Screw, 3/8 In - 16 Thread Size, Button, 1 In Lg., 0.199 In Head Ht.
Item: AB7DCPModel: U07151.037.0100Cross Ref: 22TZ09
7 In Stock
Ships within 2 days via
5.00% off
€100.98 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 50 |
| Drive Size | 7/32" |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C37-C44 |
| Head Dia. | 0.656" |
| Head Height | 0.199" |
| Head Type | Button |
| Length | 1" |
| Material | Steel |
| Material Quality Standards | Astm F835 |
| Material Type | Steel |
| Max. Temp. | 550°F |
| Min. Temp. | -50°F |
| Min. Tensile Strength | 145000 psi |
| Min. Thread Length | 1" |
| Screw Length | 1" |
| System Of Measurement | Imperial |
| Temp. | -50°F to +550°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Size | 3/8"-16 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.78 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07151.011.0025 | 0.213" | 1/16" | 0.059" | Fully Threaded | 1/4" | Grade Steel | 1/4" | -50°F to +550°F | 100 | €41.54 | |
 |
U07151.011.0037 | 0.213" | 1/16" | 0.059" | Fully Threaded | 3/8" | Grade Steel | 3/8" | -50°F to +550°F | 100 | €44.76 | |
 |
U07151.011.0050 | 0.213" | 1/16" | 0.059" | Fully Threaded | 1/2" | Grade Steel | 1/2" | -50°F to +550°F | 100 | €36.17 | |
 |
U07151.013.0025 | 1/4" | 5/64" | 0.073" | Fully Threaded | 1/4" | Grade Steel | 1/4" | -50°F to +550°F | 100 | €42.87 | |
 |
U07151.013.0037 | 1/4" | 5/64" | 0.073" | Fully Threaded | 3/8" | Grade Steel | 3/8" | -50°F to +550°F | 100 | €45.45 | |
 |
U07151.013.0050 | 1/4" | 5/64" | 0.073" | Fully Threaded | 1/2" | Grade Steel | 1/2" | -50°F to +550°F | 100 | €42.60 | |
 |
U07151.013.0062 | 1/4" | 5/64" | 1/8" | Fully Threaded | 5/8" | Grade Steel | 5/8" | -50°F to +550°F | 100 | €51.52 |
