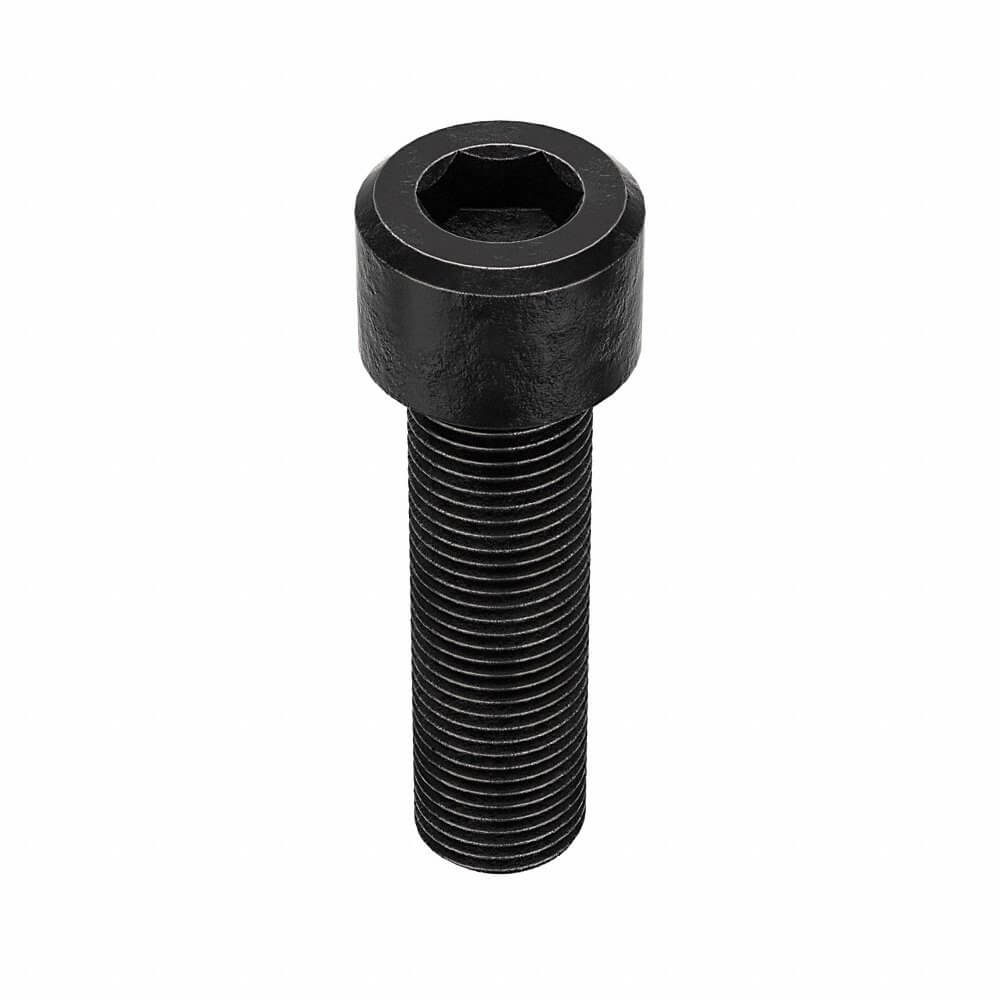

APPROVED VENDOR U07040.050.0175 Socket Head Cap Screw, 1/2 In - 20 Thread Size, Cyl., 1 3/4 In Lg., 1/2 In Head Ht., Blk Oxide, CS
Item: AC9EFGModel: U07040.050.0175Cross Ref: 3FY74
7 In Stock
Ships within 2 days via
5.00% off
€23.01 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 3/8" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 3/4" |
| Head Height | 1/2" |
| Head Type | Standard |
| Length | 1 3/4" |
| Material | Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Max. Temp. | 400°F |
| Min. Temp. | -20°F |
| Min. Tensile Strength | 180000 psi |
| Min. Thread Length | 1 3/4" |
| Screw Length | 1 3/4" |
| System Of Measurement | Imperial |
| Temp. | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1 3/4" |
| Thread Size | 1/2"-20 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07040.037.0350 | 0.562" | 5/16" | 3/8" | Partially Threaded | 1 1/4" | Grade Steel | 1 1/4" | -20°F to +400°F | 10 | €21.58 | |
 |
U07000.075.0375 | 1 1/8" | 5/8" | 3/4" | Partially Threaded | 2" | Grade Steel | 2" | -20°F to +400°F | 5 | €41.97 | |
 |
U07000.075.0750 | 1 1/8" | 5/8" | 3/4" | Partially Threaded | 2" | Grade Steel | 2" | -20°F to +400°F | 1 | €16.36 | |
 |
U07000.100.0850 | 1 1/2" | 3/4" | 1" | Partially Threaded | 2 1/2" | Grade Steel | 2 1/2" | -20°F to +400°F | 1 | €46.79 | |
 |
U07000.100.0950 | 1 1/2" | 3/4" | 1" | Partially Threaded | 2 1/2" | Grade Steel | 2 1/2" | -20°F to +400°F | 1 | €38.21 | |
 |
U07000.100.1100 | 1 1/2" | 3/4" | 1" | Partially Threaded | 2 1/2" | Grade Steel | 2 1/2" | -20°F to +400°F | 1 | €66.57 | |
 |
U07000.100.1400 | 1 1/2" | 3/4" | 1" | Partially Threaded | 2 1/2" | Grade Steel | 2 1/2" | -20°F to +400°F | 1 | €120.62 |
