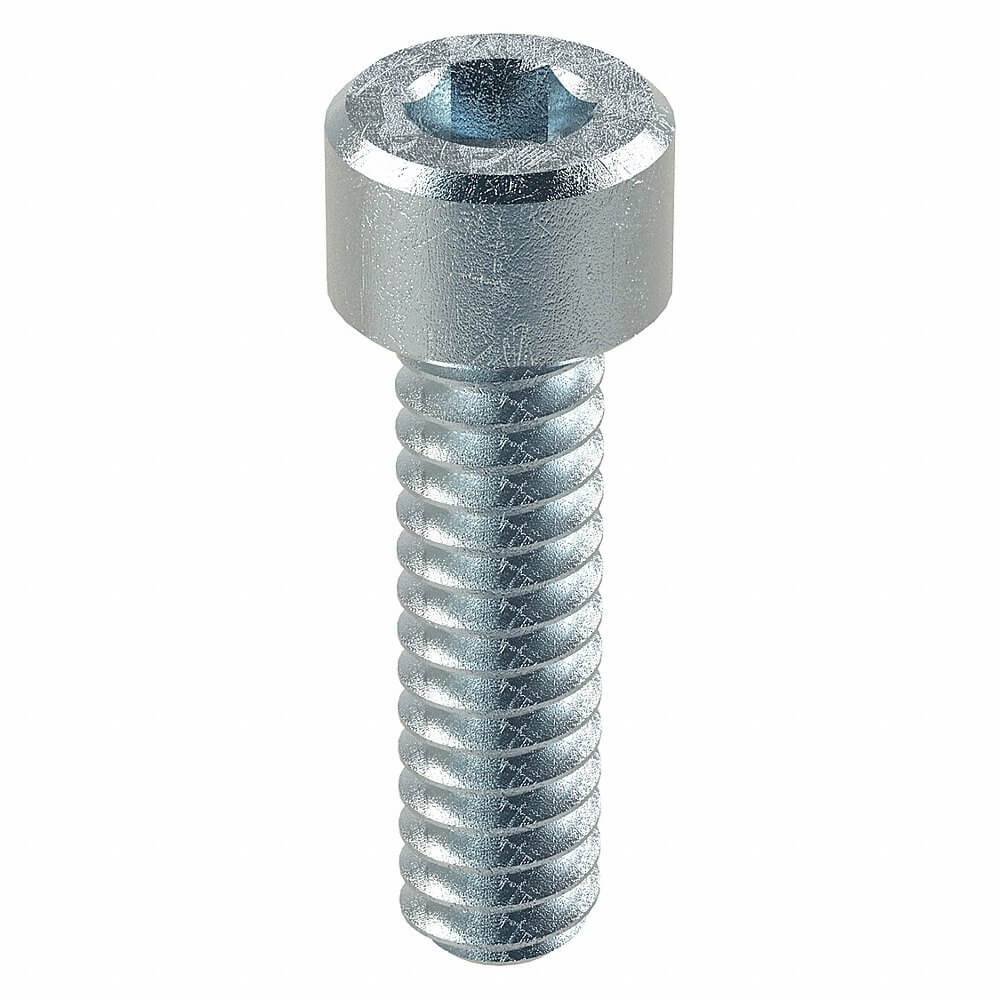

APPROVED VENDOR U07001.013.0050 Socket Head Cap Screw, 6-32 Thread Size, Cyl., 1/2 In Lg., 0.138 In Head Ht., Zn Plated, CS
Item: AB3HXKModel: U07001.013.0050Cross Ref: 1TKL6
7 In Stock
Ships within 2 days via
5.00% off
€18.16 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 7/64" |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 0.226" |
| Head Height | 0.138" |
| Head Type | Standard |
| Length | 1/2" |
| Material | Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Max. Temp. | 400°F |
| Min. Temp. | -20°F |
| Min. Tensile Strength | 180000 psi |
| Min. Thread Length | 1/2" |
| Screw Length | 1/2" |
| System Of Measurement | Imperial |
| Temp. | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1/2" |
| Thread Size | #6-32 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318156040 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Thread Length | Temp. | Display Qty | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07001.013.0025 | 0.226" | 7/64" | 0.138" | Fully Threaded | 1/4" | 1/4" | -20°F to +400°F | 100 | 100 | €17.33 | |
 |
U07001.013.0037 | 0.226" | 7/64" | 0.138" | Fully Threaded | 3/8" | 3/8" | -20°F to +400°F | 100 | 100 | €16.49 | |
 |
U07001.016.0025 | 0.27" | 9/64" | 0.164" | Fully Threaded | 1/4" | 1/4" | -20°F to +400°F | 100 | 100 | €22.43 | |
 |
U07001.016.0037 | 0.27" | 9/64" | 0.164" | Fully Threaded | 3/8" | 3/8" | -20°F to +400°F | 100 | 100 | €21.48 | |
 |
U07001.037.0150 | 0.562" | 5/16" | 3/8" | Partially Threaded | 1 1/4" | 1 1/4" | -20°F to +400°F | 25 | 25 | €39.23 | |
 |
U07001.050.0100 | 3/4" | 3/8" | 1/2" | Fully Threaded | 1" | 1" | -20°F to +400°F | 10 | 10 | €28.27 | |
 |
U07001.050.0300 | 3/4" | 3/8" | 1/2" | Partially Threaded | 1 1/2" | 1 1/2" | -20°F to +400°F | 5 | 5 | €28.40 |
