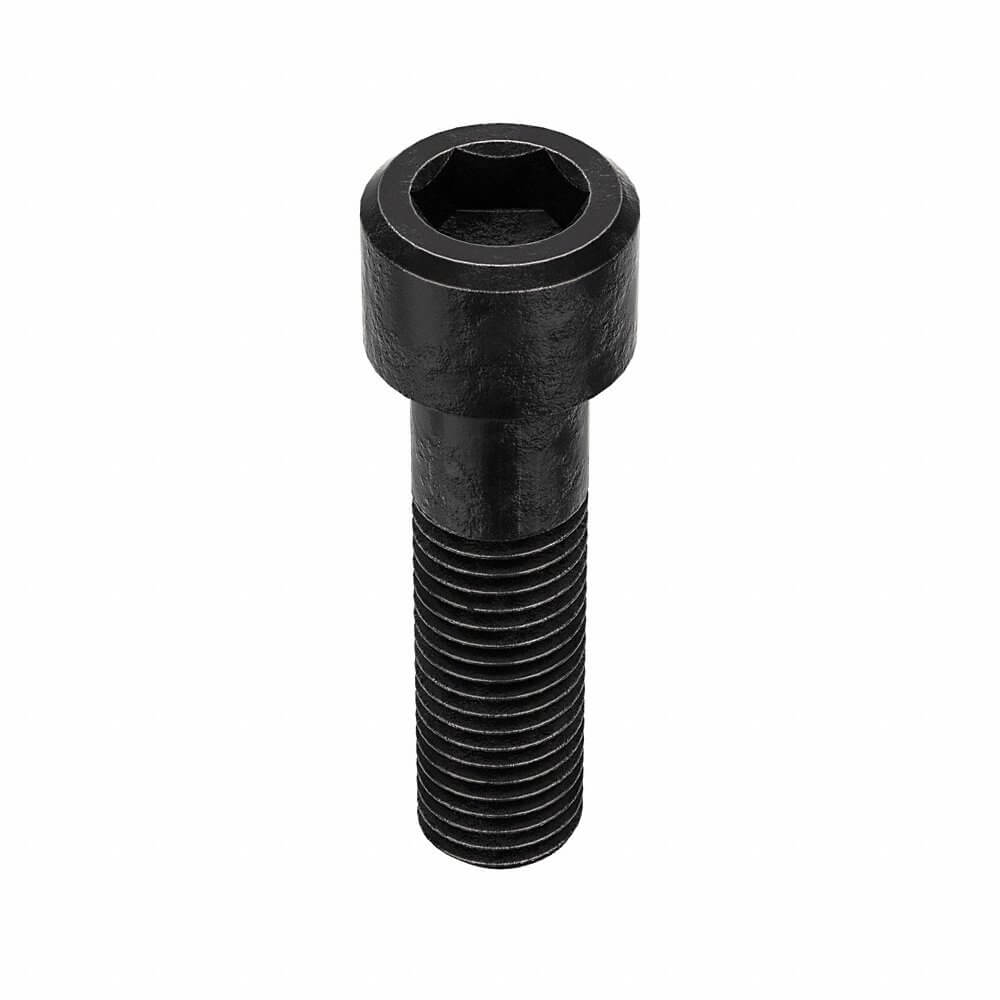

APPROVED VENDOR U07000.025.0175 Socket Head Cap Screw, 1/4 In - 20 Thread Size, Cyl., 1 3/4 In Lg., 1/4 In Head Ht., Blk Oxide, CS
Get it by Friday, Feb 27
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€60.54 /pkg. of 100
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 3/8" |
| Head Diameter | 0.375" |
| Head Height | 1/4" |
| Head Type | Standard |
| Length | 1 3/4" |
| Material | Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Maximum Temperature | 400°F |
| Min. Tensile Strength | 180000 psi |
| Minimum Temperature | -20°F |
| Minimum Thread Length | 1" |
| Screw Length | 1 3/4" |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +400°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 1" |
| Thread Size | 1/4"-20 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07040.037.0350 | 3/8"-24 | Partially Threaded | 5/16" | 0.562" | 3/8" | 1 1/4" | 180000 psi | Rockwell C37-C45 | 10 | €23.10 | |
 |
U07000.075.0375 | 3/4"-10 | Partially Threaded | 5/8" | 1 1/8" | 3/4" | 2" | 180000 psi | Rockwell C37-C45 | 5 | €41.79 | |
 |
U07000.075.0750 | 3/4"-10 | Partially Threaded | 5/8" | 1 1/8" | 3/4" | 2" | 180000 psi | Rockwell C37-C45 | 1 | €16.83 | |
 |
U07000.100.0850 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 2 1/2" | 180000 psi | Rockwell C37-C45 | 1 | €41.31 | |
 |
U07000.100.0950 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 2 1/2" | 180000 psi | Rockwell C37-C45 | 1 | €38.21 | |
 |
U07000.100.1100 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 2 1/2" | 180000 psi | Rockwell C37-C45 | 1 | €69.34 | |
 |
U07000.100.1400 | 1"-8 | Partially Threaded | 3/4" | 1 1/2" | 1" | 2 1/2" | 180000 psi | Rockwell C37-C45 | 1 | €113.65 |
