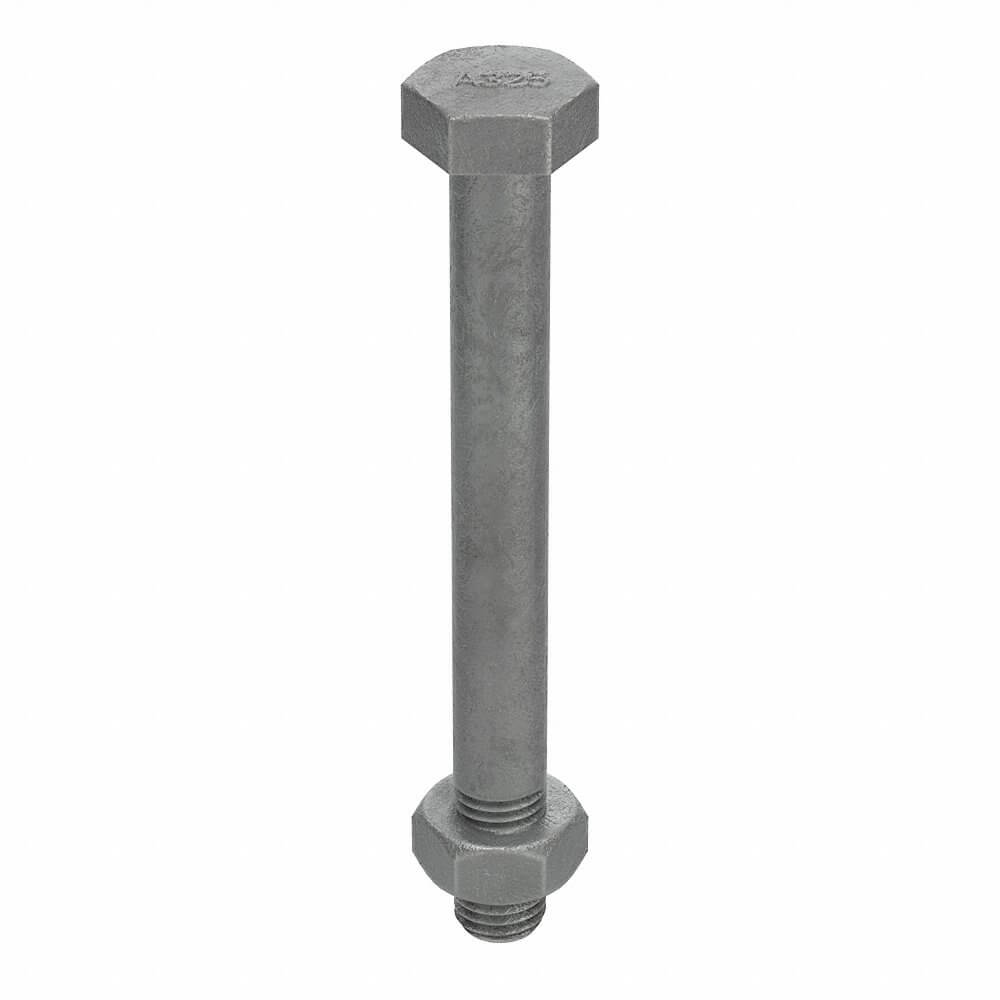

APPROVED VENDOR U04211.087.0700 Structural Bolt, 7/8 In - 9 Thread Size, Steel, 7 In Lg., Hot Dipped Galv, Gr. A325
Item: AB3FVQModel: U04211.087.0700Cross Ref: 1RY54
7 In Stock
Ships within 2 days via
5.00% off
€49.47 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Structural Bolt |
| Dimensional Standards | ASME B18.2.6 |
| Fastener Length | 7" |
| Finish | Hot Dip Galvanized |
| Grade | Grade A325 |
| Grip Size | 5 1/2" |
| Hardness | Rockwell C25 |
| Head Dia. | 1.437" |
| Head Height | 35/64" |
| Head Width | 1 7/16" |
| Included Nut | Yes |
| Length | 7" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade A325 Type 1 |
| Material Quality Standards | Astm A325, Astm F3125 |
| Min. Thread Length | 1 1/2" |
| Nut Material | Steel |
| Nut Standards | Astm 563 |
| Overall Length | 7" |
| Rockwell Hardness | Hrc25 |
| System Of Measurement | Imperial |
| Tensile Strength | 120000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 1 1/2" |
| Thread Size | 7/8"-9 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Structural Bolt With Nut |
Shipping Info:
| Ship weight (kg) | 3.85 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 10.92 |
| HS code | 7318152030 |
| Country of Origin | TW |
Product Variants
| Product | Model | Type | Grip Size | Fastener Length | Thread Fit | Included Nut | Material | Head Height | Thread Style | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U04211.087.0200 | Structural Bolt With Nut | 1/2" | 2" | 2A | Yes | Steel | 35/64" | Partially Threaded | 5 | €41.47 | |
|
U04211.087.0225 | Structural Bolt With Nut | 3/4" | 2 1/4" | 2A | Yes | Steel | 35/64" | Partially Threaded | 5 | €25.44 | |
 |
U04211.087.0250 | Structural Bolt With Nut | 1" | 2 1/2" | 2A | Yes | Steel | 35/64" | Partially Threaded | 1 | €48.12 | |
|
U04211.087.0275 | Structural Bolt With Nut | 1 1/4" | 2 3/4" | 2A | Yes | Steel | 35/64" | Partially Threaded | 5 | €28.27 | |
|
U04211.087.0300 | Structural Bolt With Nut | 1 1/2" | 3" | 2A | Yes | Steel | 35/64" | Partially Threaded | 5 | €37.86 | |
 |
U04211.087.0325 | Structural Bolt With Nut | 1 3/4" | 3 1/4" | 2A | Yes | Steel | 35/64" | Partially Threaded | 5 | €29.56 | |
|
U04211.087.0350 | Structural Bolt With Nut | 2" | 3 1/2" | 2A | Yes | Steel | 35/64" | Partially Threaded | 5 | €40.76 |
