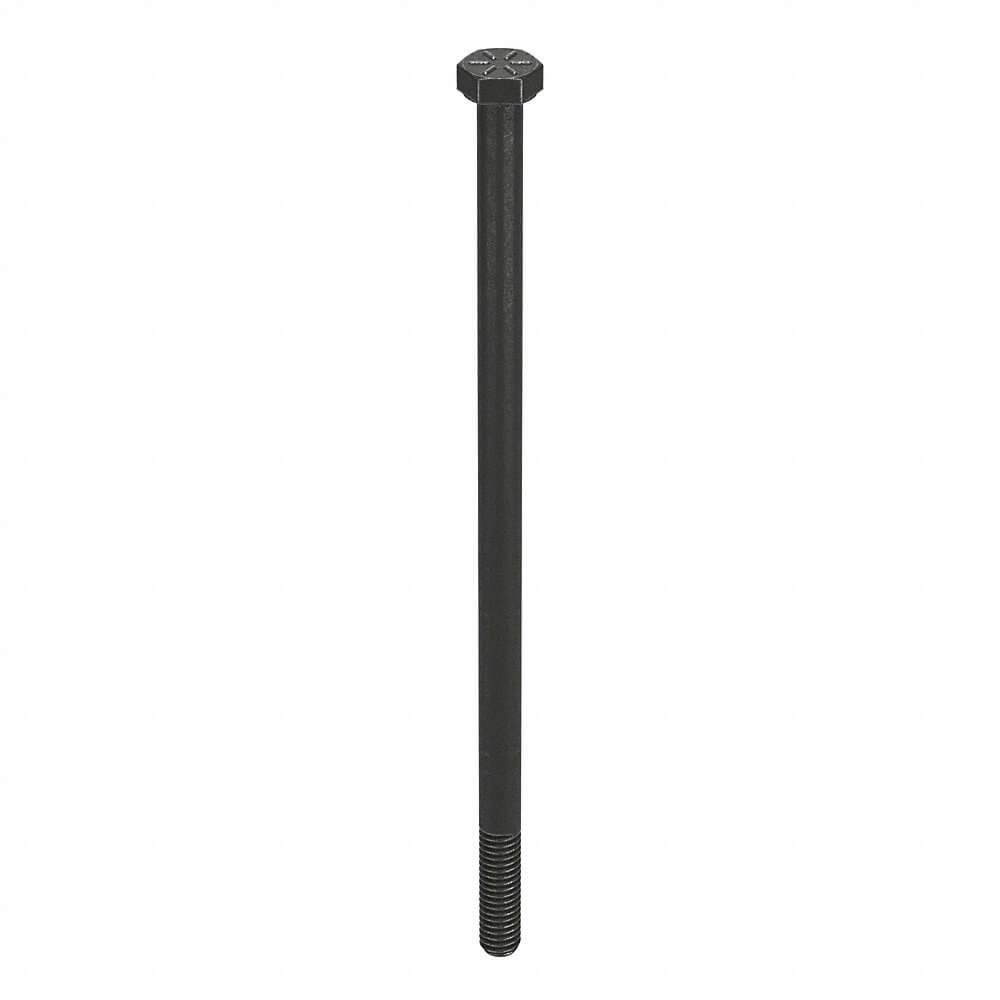

APPROVED VENDOR U04100.031.0650 Hex Head Cap Screw, 5/16 In - 18 Thread Size, Steel, 6 1/2 In Lg., 13/64 In Head Ht., Coarse
Item: AF2DRWModel: U04100.031.0650Cross Ref: 6RLV6
7 In Stock
Ships within 2 days via
5.00% off
€71.79 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Not Applicable |
| Drive | Hex |
| Fastener Length | 6 1/2" |
| Finish | Black Oxide |
| Grade | Grade 8 |
| Hardness | Rockwell C33-C39 |
| Head Height | 13/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 1/2" |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 6 1/2" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 7/8" |
| Min. Thread Length | 1 1/8" |
| Overall Length | 6 1/2" |
| Rockwell Hardness | Hrc33 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 1 1/8" |
| Thread Size | 5/16"-18 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Height | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Hex Head Cap Screw Type | Hardness | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U04100.031.0050 | 13/64" | Fully Threaded | 1/2" | 1/2" | 1/2" | Hex Head Cap Screw | Rockwell C33-C39 | 1/2" | 100 | €23.05 | |
|
N04100.031.0050 | 13/64" | Fully Threaded | 1/2" | 1/2" | 1/2" | Hex Head Cap Screw | Rockwell C33-C39 | 1/2" | 100 | €22.60 | |
 |
N04100.031.0075 | - | Fully Threaded | 3/4" | 3/4" | 3/4" | Hex Head Cap Screw | Rockwell C33-C39 | 1/2" | 100 | €21.25 | |
 |
N04100.031.0650 | 13/64" | Fully Threaded | 6 1/2" | 6 1/2" | 6 1/2" | Hex Head Cap Screw | Rockwell C33-C39 | 1/2" | 10 | €18.18 | |
|
N04100.031.0700 | 13/64" | Fully Threaded | 7" | 7" | 7" | Hex Head Cap Screw | Rockwell C33-C39 | 1/2" | 10 | €25.82 | |
 |
U04100.031.0100 | 13/64" | Fully Threaded | 1" | 1" | 1" | Hex Head Cap Screw | Rockwell C33 | 1/2" | 100 | €23.41 | |
|
U04100.031.0125 | 13/64" | Fully Threaded | 1 1/4" | 1 1/4" | 1 1/4" | Hex Head Cap Screw | Rockwell C33 | 1/2" | 100 | €21.98 |
