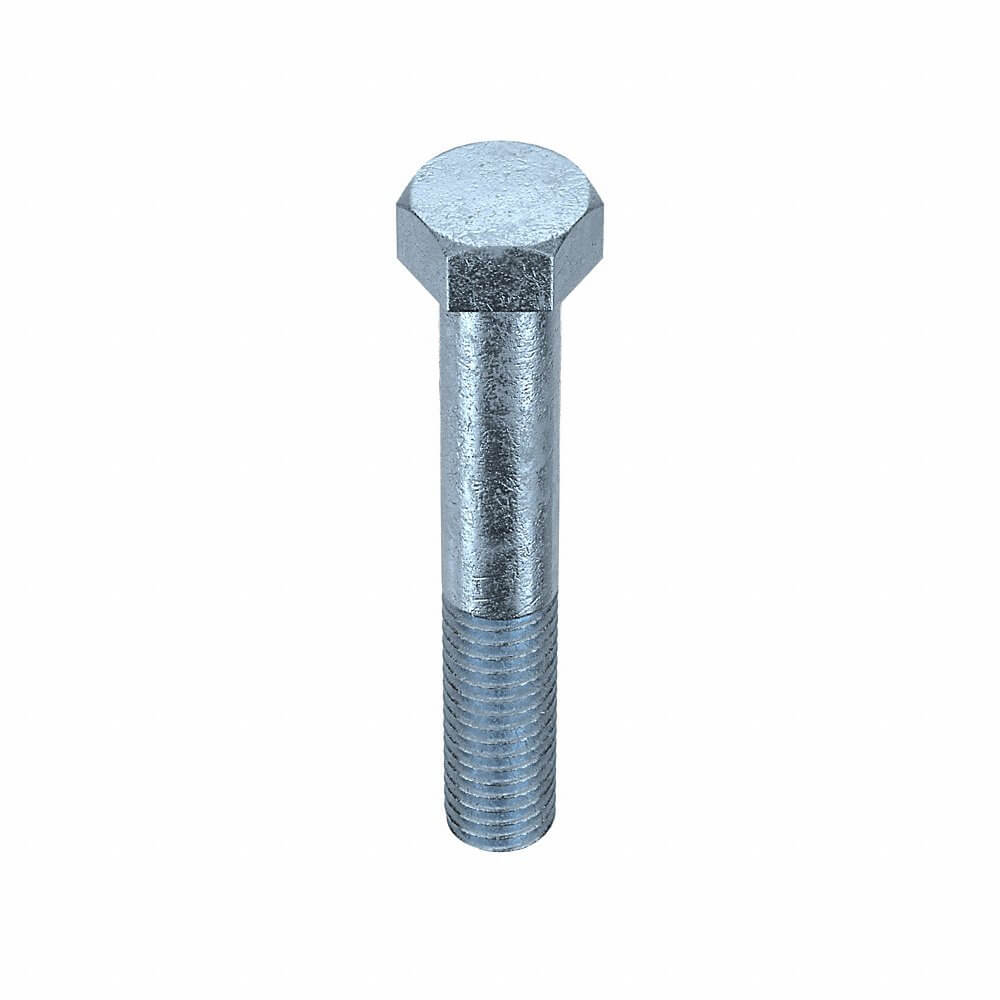

APPROVED VENDOR U01200.043.0275 Hex Head Cap Screw, 7/16 In - 14 Thread Size, Steel, 2 3/4 In Lg., 9/32 In Head Ht., Gr. 5
Item: AB7HGUModel: U01200.043.0275Cross Ref: 23KZ69
7 In Stock
Ships within 2 days via
5.00% off
€14.45 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Not Applicable |
| Drive | Hex |
| Fastener Length | 2 3/4" |
| Finish | Zinc Plated |
| Grade | Grade 5 |
| Hardness | Rockwell C19 |
| Head Height | 9/32" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 5/8" |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 2 3/4" |
| Material | Steel |
| Material Grade/class | Grade 5 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 1-1/8" |
| Min. Thread Length | 1 1/8" |
| Overall Length | 2 3/4" |
| Rockwell Hardness | Hrc19 |
| System Of Measurement | Imperial |
| Tensile Strength | 120000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 1 1/8" |
| Thread Size | 7/16"-14 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Tensile Strength | Hardness | Rockwell Hardness | Head Height | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1KA78 | Partially Threaded | 1 1/8" | 1 3/4" | 1 1/8" | 120000 psi | Rockwell C25-C34 | Hrc25 | 9/32" | 50 | €33.83 | |
 |
U01200.043.0125 | Fully Threaded | 1 1/4" | 1 1/4" | 1 1/4" | 105000 psi | Rockwell C19 | Hrc19 | 9/32" | 25 | €17.69 | |
 |
U01200.043.0150 | Fully Threaded | 1 1/2" | 1 1/2" | 1 1/2" | 105000 psi | Rockwell C19 | Hrc19 | 9/32" | 25 | €21.74 | |
 |
U01200.043.0450 | Partially Threaded | 1 1/8" | 4 1/2" | 1 1/8" | 120000 psi | Rockwell C19 | Hrc19 | 9/32" | 10 | €20.59 | |
 |
U01200.043.0500 | Partially Threaded | 1 1/8" | 5" | 1 1/8" | 105000 psi | Rockwell C19 | Hrc19 | 9/32" | 10 | €16.98 | |
 |
U01200.043.0550 | Partially Threaded | 1 1/8" | 5 1/2" | 1 1/8" | 120000 psi | Rockwell C19 | Hrc19 | 9/32" | 10 | €26.38 | |
 |
U01200.043.0600 | Partially Threaded | 1 1/8" | 6" | 1 1/8" | 105000 psi | Rockwell C19 | Hrc19 | 9/32" | 5 | €12.75 |
