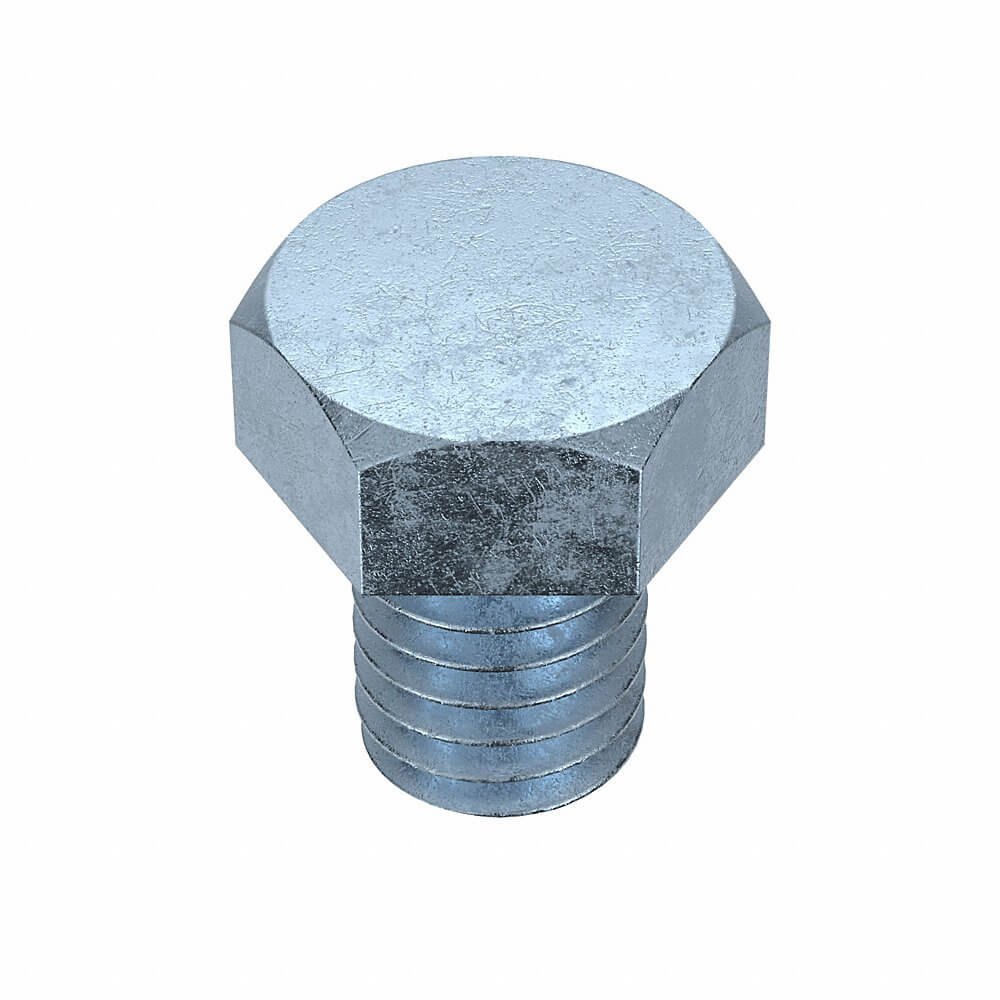

APPROVED VENDOR U01200.037.0050 Hex Head Cap Screw, 3/8 In - 16 Thread Size, Steel, 1/2 In Lg., 15/64 In Head Ht., Gr. 5
Item: AB6ZRJModel: U01200.037.0050Cross Ref: 22TC02
7 In Stock
Ships within 2 days via
5.00% off
€15.90 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Not Applicable |
| Drive | Hex |
| Fastener Length | 1/2" |
| Finish | Zinc Plated |
| Grade | Grade 5 |
| Hardness | Rockwell C19 |
| Head Height | 15/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 9/16" |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 1/2" |
| Material | Steel |
| Material Grade/class | Grade 5 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 1/2" |
| Overall Length | 1/2" |
| Rockwell Hardness | Hrc19 |
| System Of Measurement | Imperial |
| Tensile Strength | 105000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 1/2" |
| Thread Size | 3/8"-16 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Height | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Type | Head Style | Tensile Strength | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U01200.037.0062 | 15/64" | Fully Threaded | 5/8" | 5/8" | 5/8" | Hex | Hex | 120000 psi | 50 | €19.76 | |
 |
U01200.037.0087 | 15/64" | Fully Threaded | 7/8" | 7/8" | 7/8" | Hex | Hex | 105000 psi | 50 | €15.38 | |
 |
U01200.037.0125 | 15/64" | Fully Threaded | 1 1/4" | 1 1/4" | 1 1/4" | Hex | Hex | 105000 psi | 50 | €22.53 | |
 |
U01200.037.0150 | 15/64" | Partially Threaded | 1" | 1 1/2" | 1" | Hex | Hex | 105000 psi | 50 | €27.73 | |
 |
U01200.037.0275 | 15/64" | Partially Threaded | 1" | 2 3/4" | 1" | Hex | Hex | 105000 psi | 25 | €18.31 | |
 |
U01200.037.0325 | 15/64" | Partially Threaded | 1" | 3 1/4" | 1" | Hex | Hex | 105000 psi | 25 | €17.20 | |
 |
U01200.037.0350 | 15/64" | Partially Threaded | 1" | 3 1/2" | 1" | Hex | Hex | 105000 psi | 25 | €27.32 |
