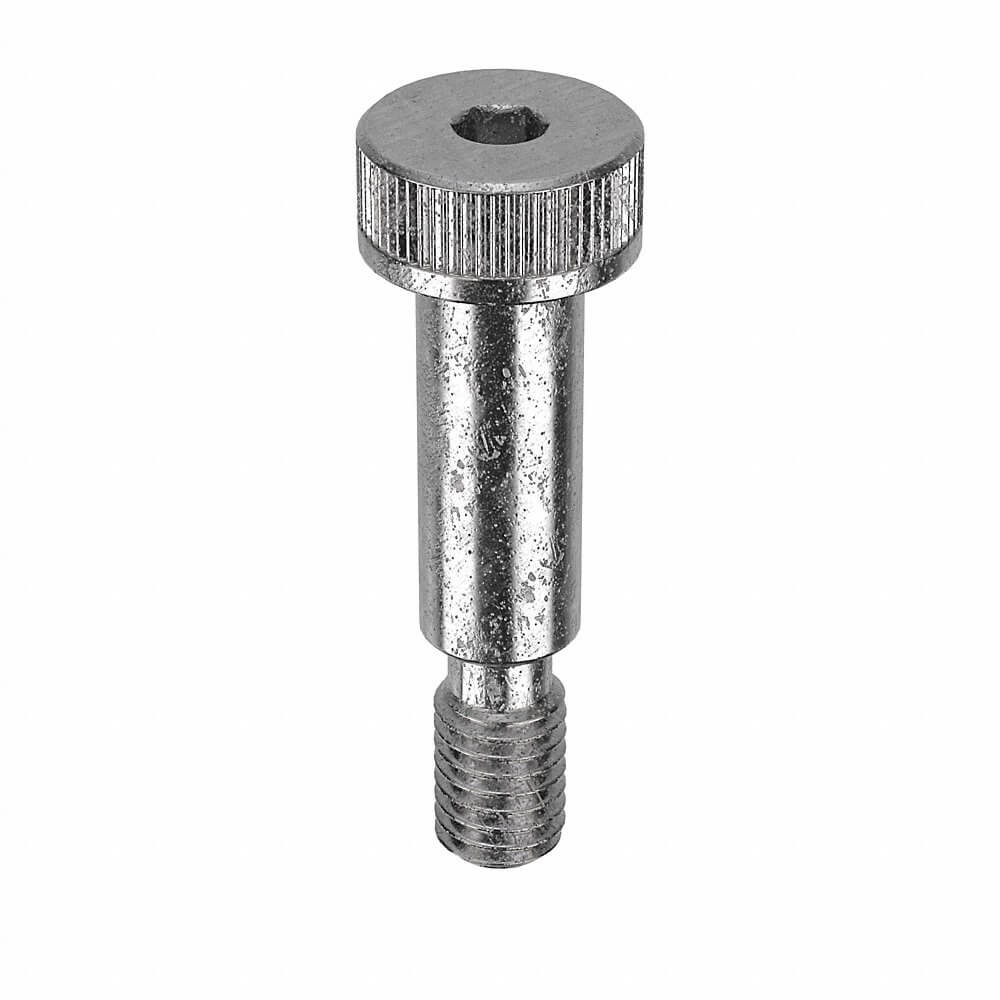

APPROVED VENDOR STR601M6X16 Shoulder Screw, M5x0.8 Thread Size, 16 mm Shoulder Lg., 4.5 mm Head Ht., Std, Hex Socket
Item: AB8JNYModel: STR601M6X16Cross Ref: 25L570
7 In Stock
Ships within 2 days via
5.00% off
€21.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Ampg 2013 Zs.02 |
| Display Qty | 1 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B55 |
| Head Dia. | 10 mm |
| Head Height | 4.5 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 6 mm |
| Shoulder Dia. Tolerance | -0.04 mm to 0 mm |
| Shoulder Length | 16 mm |
| Shoulder Length Tolerance | -0 mm to +0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 70000 psi |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 9.5 mm |
| Thread Size | M5 x 0.8 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 1.27 |
| HS code | 7318156010 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4410 | 1/4" | 1/8" | 1/8" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €25.51 | |
 |
PAT4411 | 1/4" | 1/8" | 3/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.31 | |
 |
PAT4412 | 1/4" | 1/8" | 1/4" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.97 | |
|
PAT4413 | 1/4" | 1/8" | 5/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €30.20 | |
 |
PAT4414 | 1/4" | 1/8" | 3/8" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €30.28 | |
|
PAT6906SS | 1/4" | 1/8" | 7/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €32.58 | |
 |
PAT6907SS | 1/4" | 1/8" | 1/2" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.61 |
