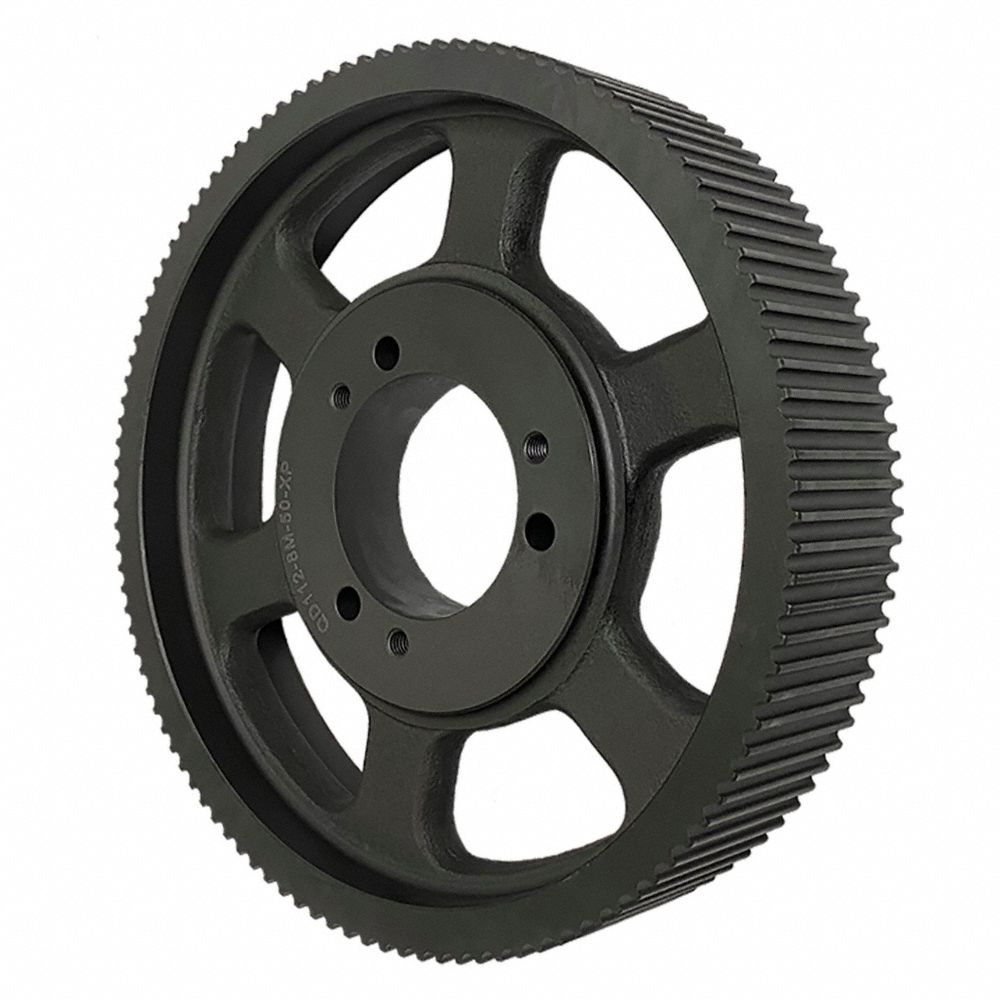

APPROVED VENDOR QD1128M50 HTD Timing Belt Pulley, for HTD Belt, 50 mm Belt Wd, 112 Teeth, No Flanges, Req SF Bushing
Get it by Monday, Aug 24
5.00% off
€666.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Timing Belt |
| Bore Type | Quick Detachable Bushing |
| Bushing Size | SF |
| Bushing Type | Quick Detachable |
| Face Width | 2 3/8" |
| Feature | Built For High Torque, Low Speed Applications, Outperforms Industry Standards, Superb Flexibility |
| Finish | Black Oxide |
| Flange Type | Flangeless |
| For Belt Series | HTD |
| For Belt Trade Size | Htd |
| For Belt Width | 50 mm |
| For Use With | HTD Belts |
| Material | Cast Iron |
| Material Fabrication | Cast |
| No. Of Teeth | 112 |
| Outside Dia. | 11.177" |
| Pitch Dia. | 11.229" |
| Resistance Properties | Chemical Resistant, Cut Resistant, Oil Resistant, Wear Resistant |
| Thread Pitch | 8 mm |
| Tooth Shape | Curvilinear |
| Width | 2 3/8" |
Shipping Info:
| Ship weight (kg) | 10.18 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 30.48 |
| Country of Origin | CN |
Product Variants
| Product | Model | Material | Pitch Dia. | Face Width | Pitch | No. Of Teeth | For Belt Width | Bore Type | Flange Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
228M206FS6 | Steel | 2.206" | 1 1/8" | - | 22 | 20 mm | Plain Bore | With Flanges | €205.88 | |
|
228M306FS6 | Steel | 2.206" | 1 1/2" | - | 22 | 30 mm | Plain Bore | With Flanges | €209.88 | |
|
248M306FS6 | Steel | 2.406" | 1 1/2" | - | 24 | 30 mm | Plain Bore | With Flanges | €213.83 | |
|
268M306FS6 | Steel | 2.607" | 1 1/2" | - | 26 | 30 mm | Plain Bore | With Flanges | €221.72 | |
 |
288M506FS6 | Steel | 2.807" | 2 3/8" | - | 28 | 50 mm | Plain Bore | With Flanges | €361.93 | |
 |
325M156FS6 | Steel | 2.005" | 0.844" | - | 32 | 15 mm | Plain Bore | With Flanges | €155.54 | |
 |
325M256FS6 | Steel | 2.005" | 1.234" | - | 32 | 25 mm | Plain Bore | With Flanges | €164.08 |
