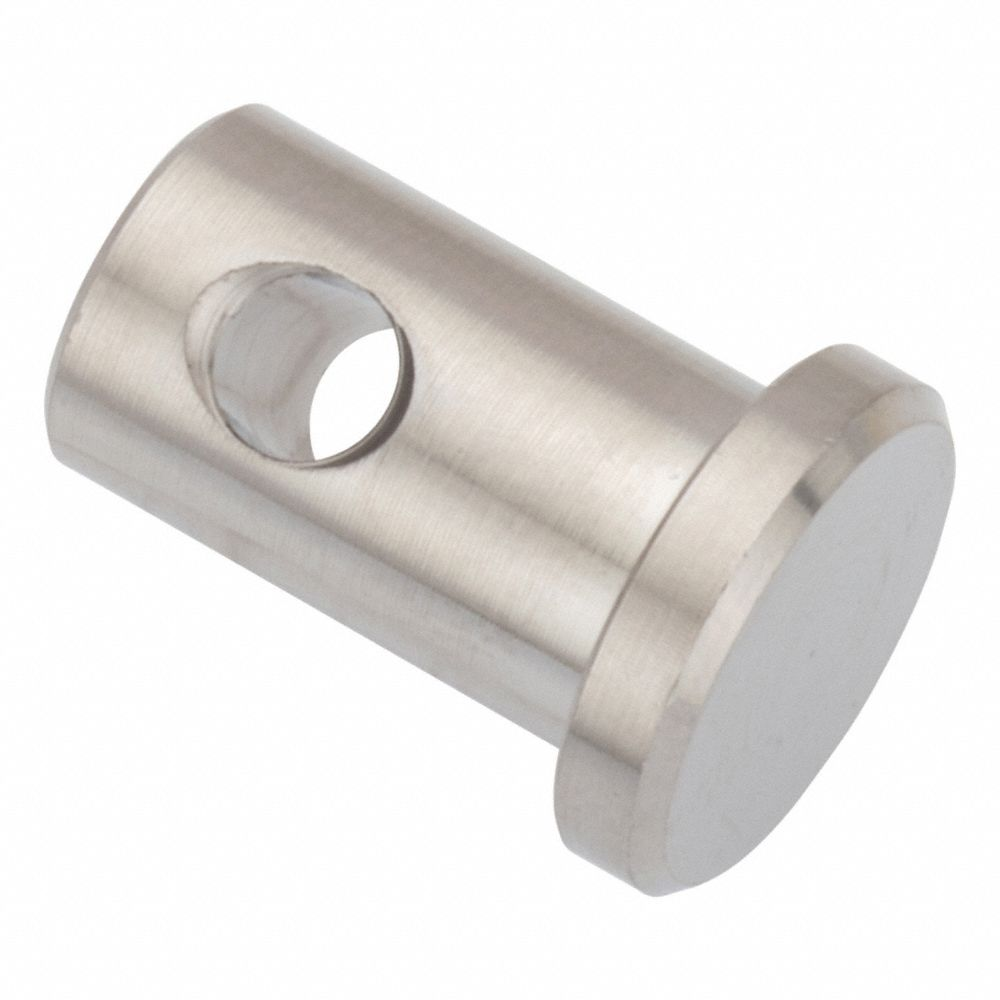

APPROVED VENDOR PIN3025108 Precision Clevis Pin, 5/16 Inch Dia, 1/2 Inch Length, Stainless Steel, Finish Plain
Item: EA3XJGModel: PIN3025108Cross Ref: 810GE8
7 In Stock
Ships within 2 days via
5.00% off
€10.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clevis Pin |
| Finish | Plain |
| Head Dia. | 7/16" |
| Head Dia. Tolerance | -0.015" to 0" |
| Head Type | Headed |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Material Grade/class | Grade 316 |
| Max. Hole Size | 0.141" |
| Outside Dia. Tolerance | -0.004" to -0.002" |
| Pin Dia. | 5/16" |
| Product Type | Precision Clevis Pin |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Shank Length | 1/2" |
| System Of Measurement | Imperial |
| Usable Length | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Usable Length | Max. Hole Size | Pin Dia. | Finish | Shank Length | Material Grade/class | Head Dia. | Min. Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PIN3017864BX | 3 11/16" | 0.2188" | 7/8" | Black Oxide | 4" | - | 1 1/32" | - | €87.78 | |
 |
PIN3017872 | 4 3/16" | 0.2188" | 7/8" | Plain | 4 1/2" | Grade 18-8 | 1 1/32" , 1.0312" | - | €96.13 | |
 |
PIN3017872BX | 4 3/16" | 0.2188" | 7/8" | Black Oxide | 4 1/2" | - | 1 1/32" | - | €97.25 | |
 |
PIN3017880 | 4 11/16" | 0.2188" | 7/8" | Plain | 5" | Grade 18-8 | 1 1/32" | - | €105.73 | |
 |
PIN3017880BX | 4 11/16" | 0.2188" | 7/8" | Black Oxide | 5" | - | 1 1/32" | - | €106.65 | |
 |
PIN3017896 | 5 11/16" | 0.2188" | 7/8" | Plain | 6" | Grade 18-8 | 1 1/32" | - | €124.98 | |
 |
PIN3017896BX | 5 11/16" | 0.2188" | 7/8" | Black Oxide | 6" | - | 1 1/32" | - | €128.07 |
