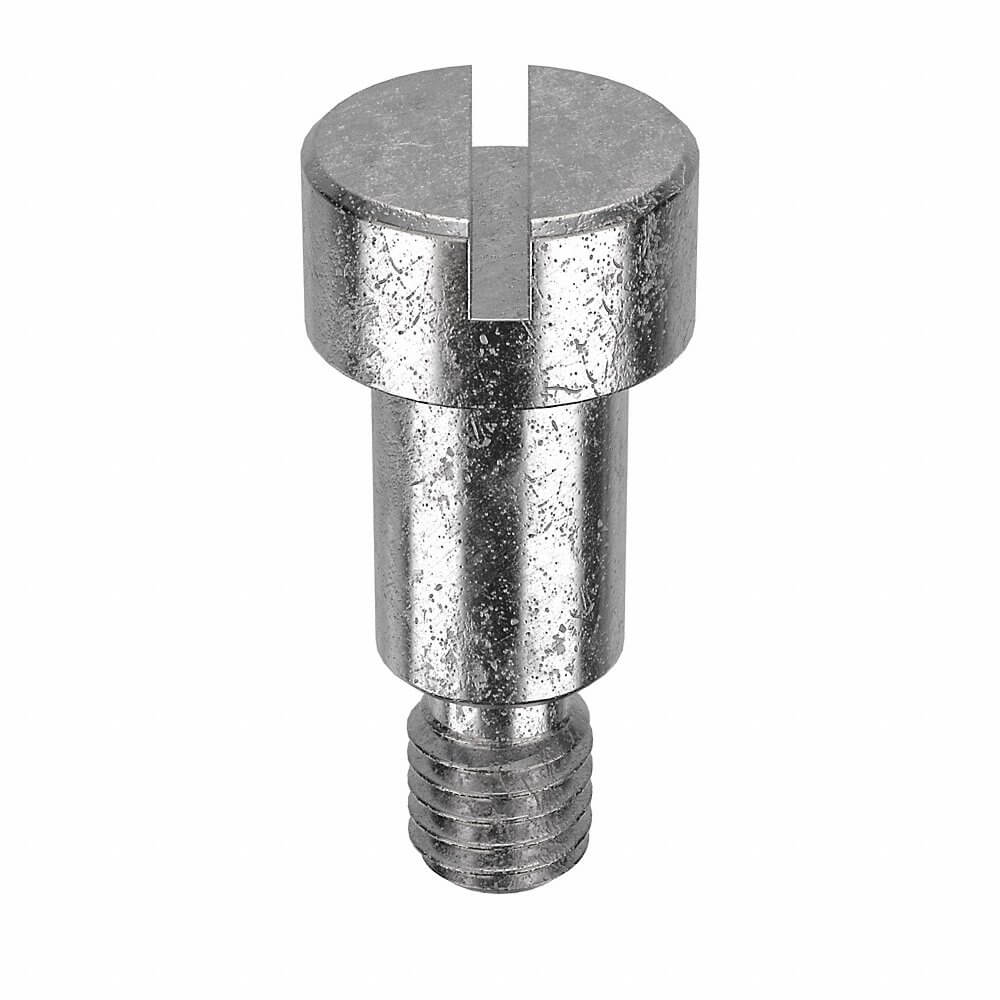

APPROVED VENDOR PAT4330 Shoulder Screw, 10-32 Thread Size, 3/8 In Shoulder Lg., 3/16 In Head Ht., Self Locking Precision
Item: AB2WRAModel: PAT4330Cross Ref: 1PE84
7 In Stock
Ships within 2 days via
10.00% off
€29.77 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Type | Slotted |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Temperature | 250°F |
| Min. Tensile Strength | 116000 psi |
| Minimum Temperature | -70°F |
| Precision Screw | Yes |
| Resistance Properties | Corrosion Resistant |
| Rockwell Hardness | B95 |
| Shoulder Dia. | 1/4" |
| Shoulder Diameter Tolerance | 0.0015" to 0" |
| Shoulder Length | 3/8" |
| Shoulder Length Tolerance | 0" to 0.002" |
| System Of Measurement | Imperial |
| Temp. Range | -70°F to +250°F |
| Tensile Strength | 116000 psi |
| Thread Fit | 2A |
| Thread Length | 1/4" |
| Thread Size | #10-32 |
| Type | Locking Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156070 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4312 | #4-40 | 1/4" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | Locking Precision Shoulder Screw | 5 | €28.90 | |
|
PAT4313 | #4-40 | 5/16" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | Locking Precision Shoulder Screw | 5 | €28.91 | |
|
PAT7007SS | #4-40 | 1/2" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | Locking Precision Shoulder Screw | 5 | €32.58 | |
|
PAT4362 | #6-32 | 3/16" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €31.08 | |
|
PAT4363 | #6-32 | 1/4" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €31.41 | |
 |
PAT4364 | #6-32 | 5/16" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €32.58 | |
 |
PAT4365 | #6-32 | 3/8" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €29.79 |
