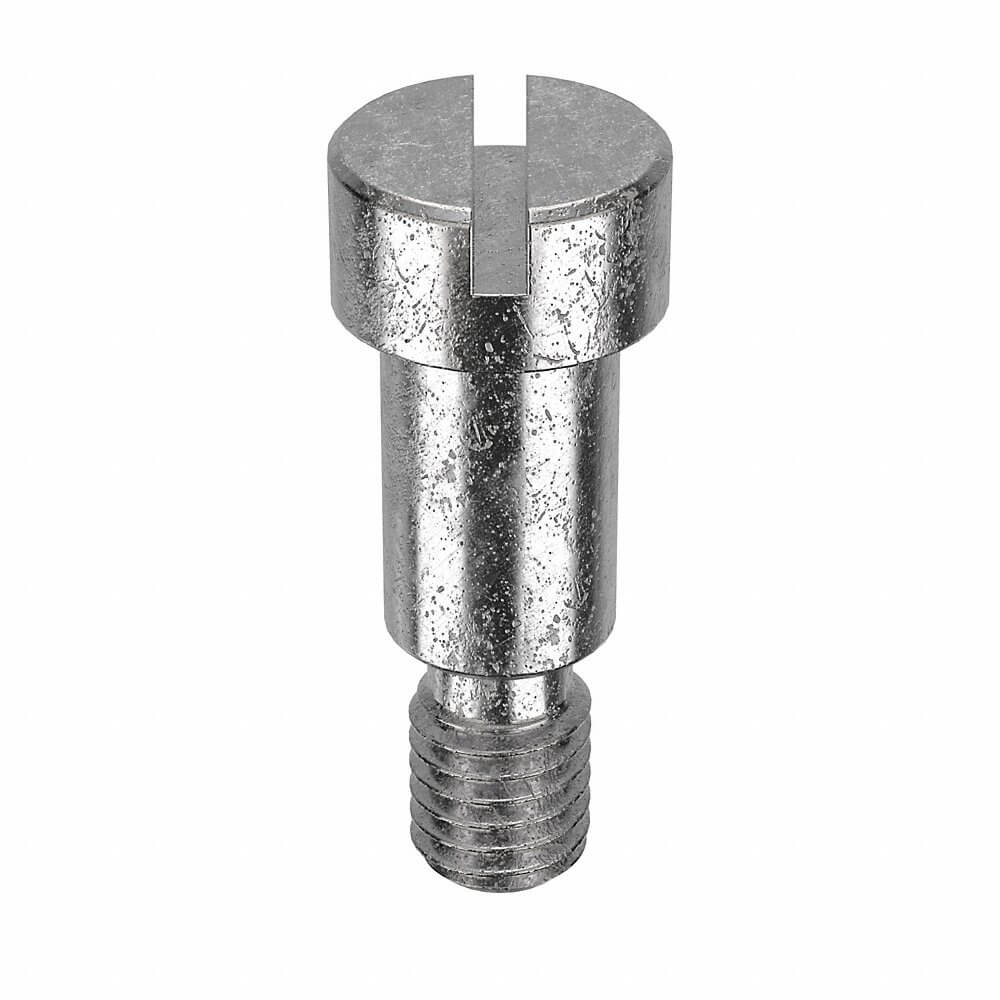

APPROVED VENDOR MSB1-41 Shoulder Screw, M8x1.25 Thread Size, 16 mm Shoulder Lg., 7 mm Head Ht., Precision
Item: AE9JZTModel: MSB1-41Cross Ref: 6KB90
7 In Stock
Ships within 2 days via
10.00% off
€86.46 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Type | Slotted |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 14 mm |
| Head Height | 7 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 80000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Dia. | 10 mm |
| Shoulder Diameter Tolerance | -0.013 mm to 0 mm |
| Shoulder Length | 16 mm |
| Shoulder Length Tolerance | 0 mm to 0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | 80000 psi |
| Thread Fit | 2A |
| Thread Length | 12 mm |
| Thread Size | M8 x 1.25 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
| HS code | 7318158082 |
| Country of Origin | US |
