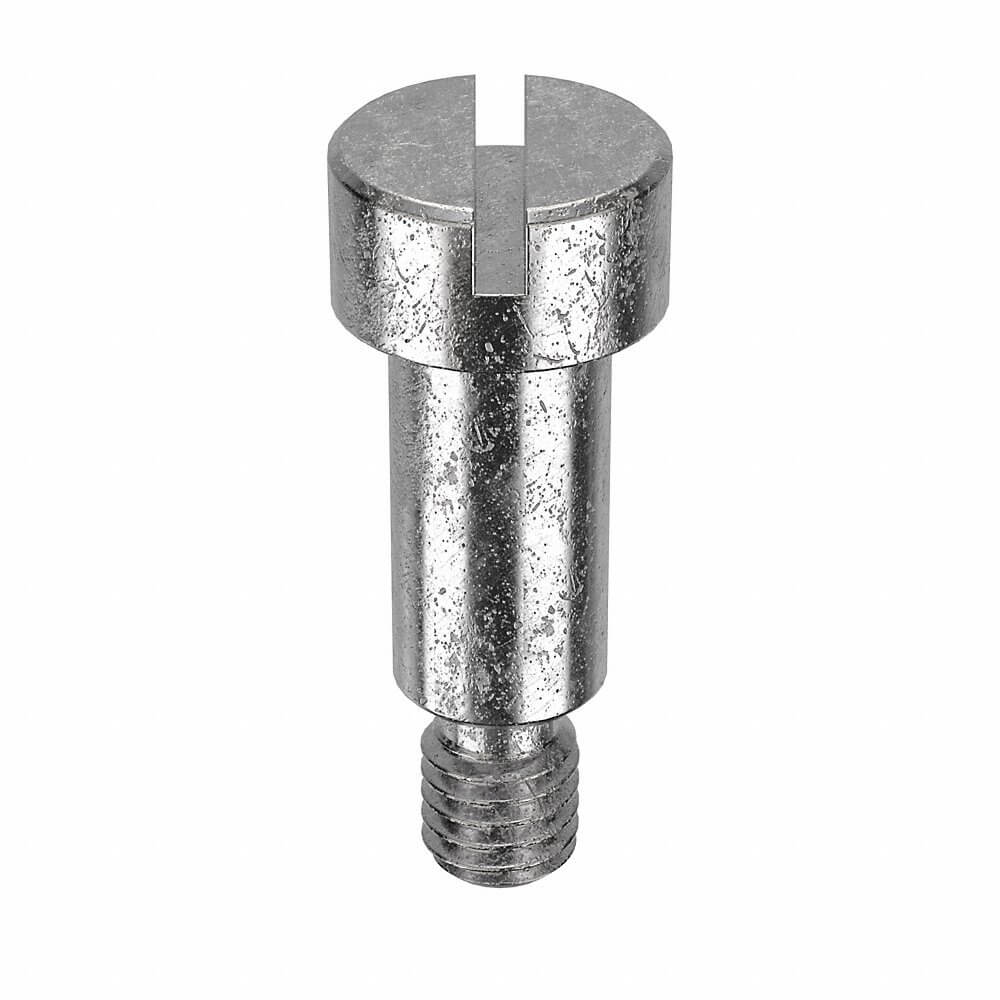

APPROVED VENDOR MSB1-4 Shoulder Screw, M3x0.5 Thread Size, 8 mm Shoulder Lg., 3 mm Head Ht., Precision
Item: AE9JYCModel: MSB1-4Cross Ref: 6KB53
7 In Stock
Ships within 2 days via
10.00% off
€40.96 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 10 |
| Drive Type | Slotted |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 6 mm |
| Head Height | 3 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 80000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Dia. | 4 mm |
| Shoulder Diameter Tolerance | -0.013 mm to 0 mm |
| Shoulder Length | 8 mm |
| Shoulder Length Tolerance | 0 mm to 0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | 80000 psi |
| Thread Fit | 2A |
| Thread Length | 4 mm |
| Thread Size | M3 x 0.5 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156070 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4312 | #4-40 | 1/4" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | Locking Precision Shoulder Screw | 5 | €28.90 | |
|
PAT4313 | #4-40 | 5/16" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | Locking Precision Shoulder Screw | 5 | €28.91 | |
|
PAT7007SS | #4-40 | 1/2" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | Locking Precision Shoulder Screw | 5 | €32.58 | |
|
PAT4362 | #6-32 | 3/16" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €31.08 | |
|
PAT4363 | #6-32 | 1/4" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €31.41 | |
 |
PAT4364 | #6-32 | 5/16" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €32.58 | |
 |
PAT4365 | #6-32 | 3/8" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | Locking Precision Shoulder Screw | 5 | €29.79 |
