FREE delivery on orders over €150

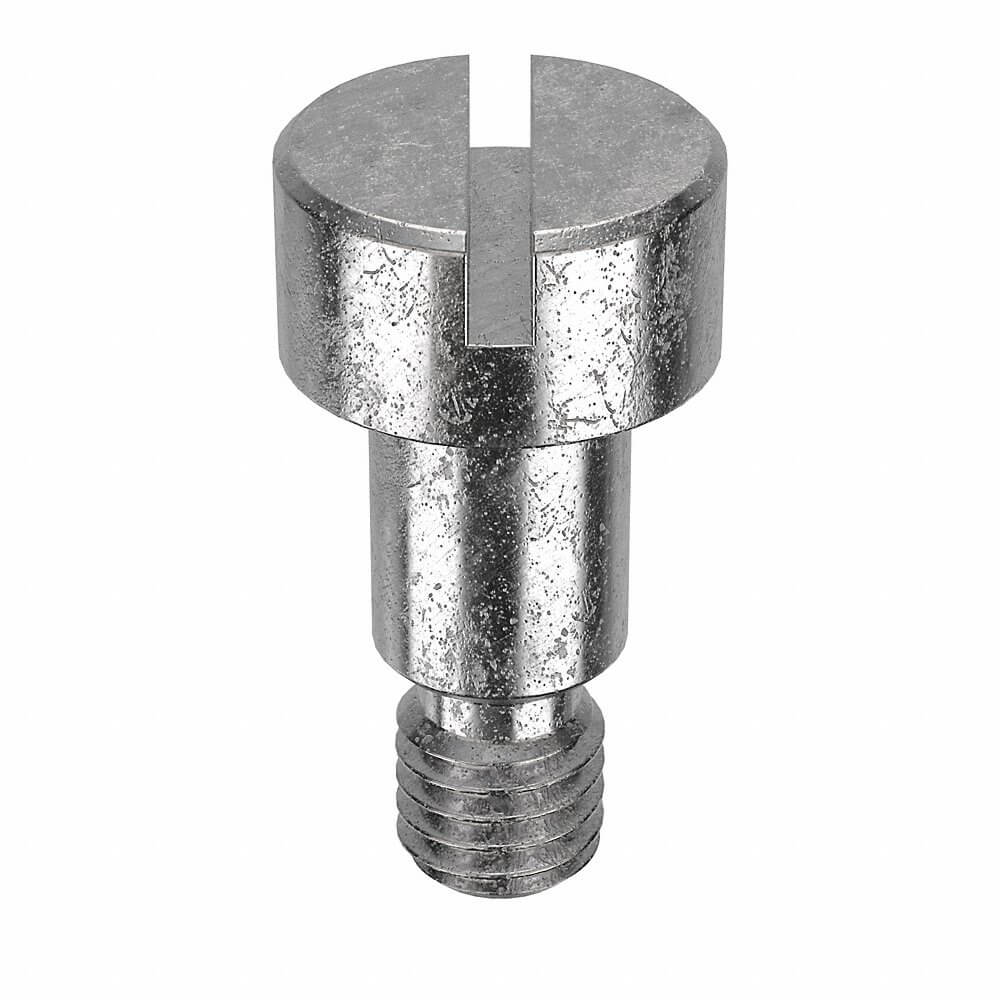

APPROVED VENDOR MSB1-20 Shoulder Screw, M5x0.8 Thread Size, 8 mm Shoulder Lg., 5 mm Head Ht., Precision
Item: AE9JYVModel: MSB1-20Cross Ref: 6KB69
7 In Stock
Ships within 2 days via
5.00% off
€29.31 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Type | Slotted |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 10 mm |
| Head Height | 5 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 80000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Dia. | 6 mm |
| Shoulder Dia. Tolerance | -0.013 mm to 0 mm |
| Shoulder Length | 8 mm |
| Shoulder Length Tolerance | 0 mm to 0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | 80000 psi |
| Thread Fit | 2A |
| Thread Length | 6 mm |
| Thread Size | M5 x 0.8 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156070 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PAT4312 | 1/4" | 1/8" | 1/4" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €28.27 | |
|
PAT4313 | 1/4" | 1/8" | 5/16" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €27.14 | |
|
PAT7007SS | 1/4" | 1/8" | 1/2" | 5/32" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €31.28 | |
|
PAT4362 | 9/32" | 5/32" | 3/16" | 3/16" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €29.83 | |
|
PAT4363 | 9/32" | 5/32" | 1/4" | 3/16" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €30.16 | |
 |
PAT4364 | 9/32" | 5/32" | 5/16" | 3/16" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €31.28 | |
 |
PAT4365 | 9/32" | 5/32" | 3/8" | 3/16" | 1/8" | Locking Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 5 | €28.27 |
