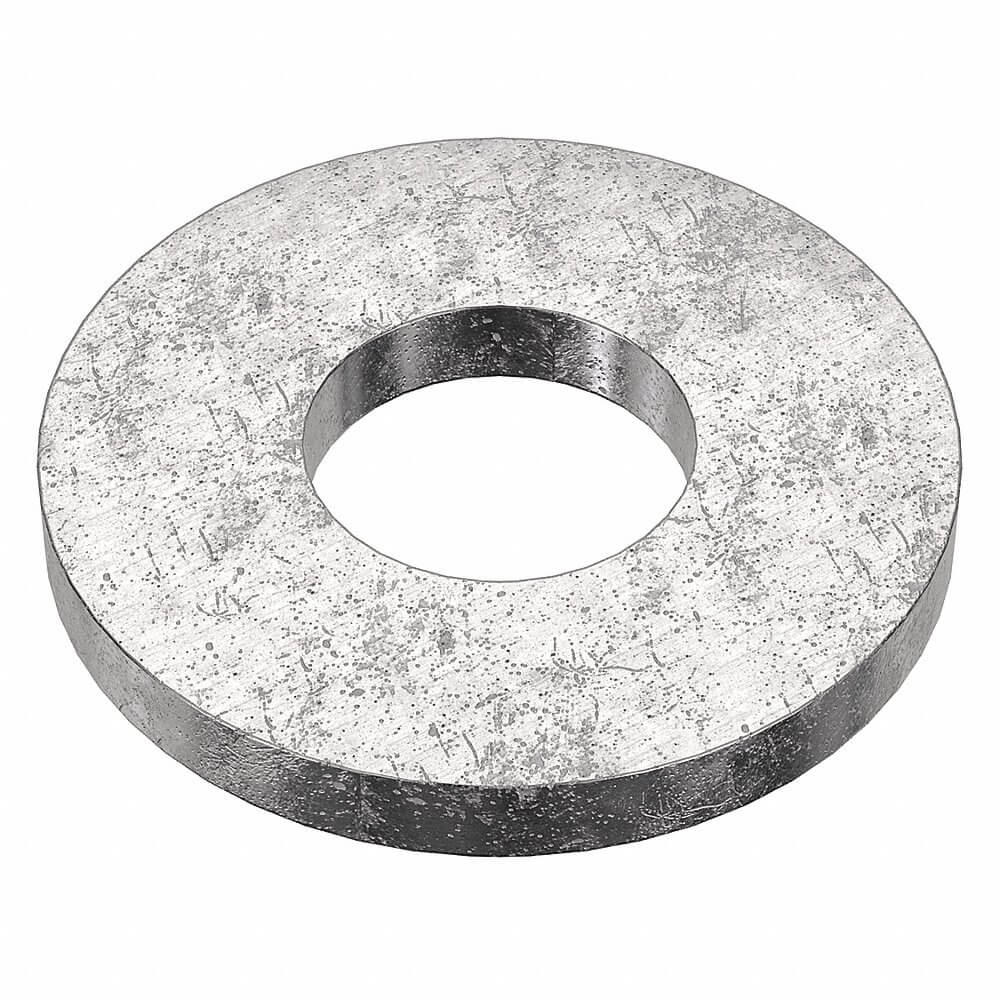

APPROVED VENDOR MS15795-811 Mil Spec Washer, 1/4 In Fits Bolt Size, Flat, 5/16 In I.D., Plain
Item: AB9KGNModel: MS15795-811Cross Ref: 2DNJ4
7 In Stock
Ships within 2 days via
5.00% off
€28.46 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mil Spec Washer |
| Dimensional Standards | Ms15795 |
| Finish | Plain |
| Fits Bolt Size | 1/4" |
| Flat Washer Type | Mil Spec |
| For Screw Size | 1/4" |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80 |
| Inside Dia. | 0.312" , 5/16" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Thickness | 2/25" |
| Min. Thickness | 0.051" |
| Outside Dia. | 0.734" , 47/64" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid |
| Rockwell Hardness | B83 |
| System Of Measurement | Imperial |
| Tensile Strength | 90000 psi |
| Thickness | 0.051" to 0.08" |
| Thickness Tolerance | -0.014", +0.005" |
| Washer Type | Mil Spec Flat Washer |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Dimensional Standards | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MS15795-801 | #1 | 0.016" to 0.025" | 0.016" | 0.025" | #1 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €8.82 | |
 |
MS15795-802 | #2 | 0.016" to 0.025" | 0.016" | 0.025" | #2 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €8.95 | |
 |
MS15795-803 | #4 | 0.017" to 0.028" | 0.017" | 0.028" | #4 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €9.41 | |
 |
MS15795-804 | #4 | 0.032" to 0.04" | 1/25" | 1/25" | #4 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €11.82 | |
 |
MS15795-805 | #6 | 0.027" to 0.048" | 0.048" | 0.048" | #6 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €11.71 | |
 |
MS15795-806 | #6 | 0.036" to 0.065" | 0.036" | 0.065" | #6 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €15.70 | |
 |
MS15795-807 | #8 | 0.036" to 0.065" | 0.036" | 0.065" | #8 | -0.014", +0.005" | Ms15795 | 18-8 | 100 | €55.44 |
