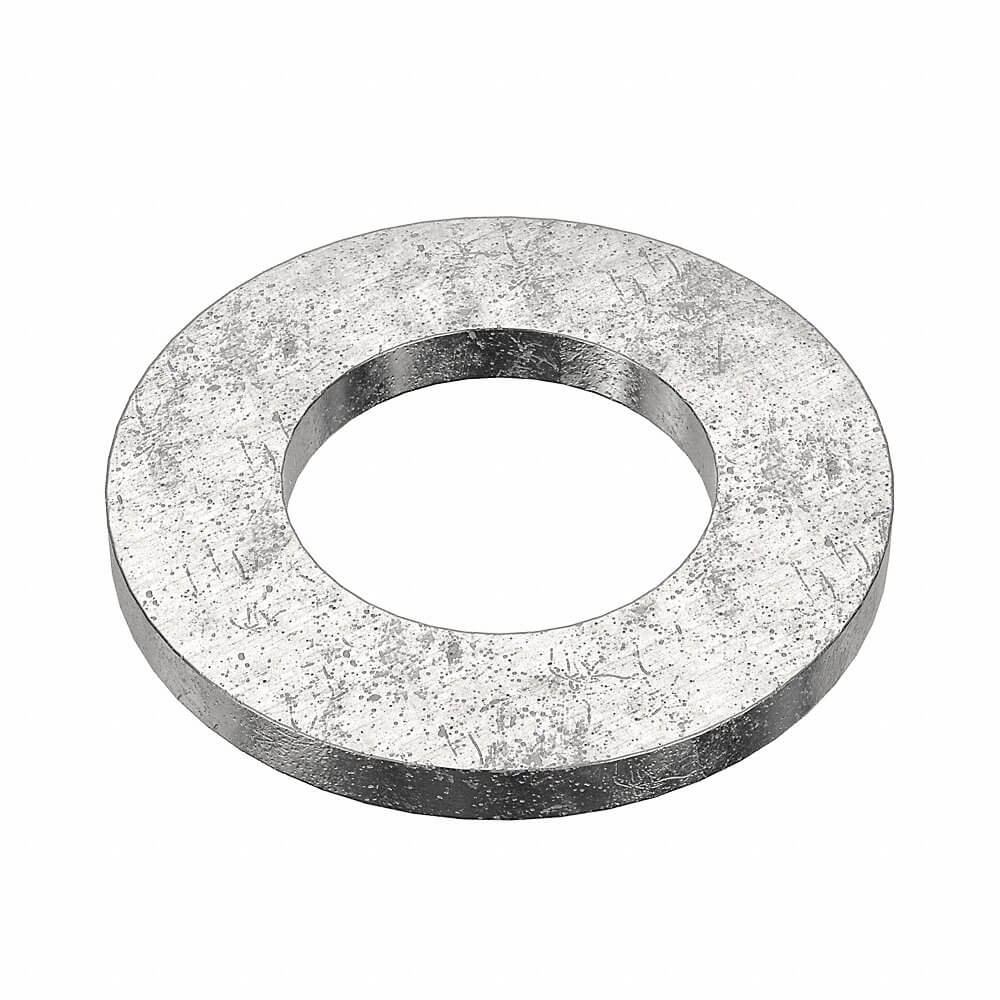

APPROVED VENDOR M51420.420.0001 Flat Washer, M42 Fits Bolt Size, Std, 43 mm I.D., 78 mm O.D., SS
Item: AB8EWDModel: M51420.420.0001Cross Ref: 25DL06
7 In Stock
Ships within 2 days via
5.00% off
€12.48 /pkg. of 2
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 125-1A |
| Finish | Plain |
| Fits Bolt Size | M42 |
| Flat Washer Type | Standard |
| For Screw Size | M42 |
| Grade | Grade 18-8 |
| Inside Dia. | 43 mm |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Temp. | 302°F |
| Max. Thickness | 7 mm |
| Min. Temp. | -58°F |
| Min. Thickness | 7 mm |
| Outside Dia. | 78 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Thickness | 7 mm |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51410.011.0002 | #4 | 1/32" | 0.031" | 0.031" | #4 | - | - | - | 50 | €5.25 | |
 |
U51410.013.0001 | #6 | 2/41" | 0.036" | 0.065" | #6 | +0.016", -0.013" | -0.005" to +0.008" | -0.005" to +0.015" | 50 | €2.14 | |
 |
U51410.016.0002 | #8 | 2/41" | - | - | - | - | - | - | 50 | €2.42 | |
 |
U51410.019.0002 | #10 | 2/41" | 0.036" | 0.065" | #10 | +0.016", -0.013" | -0.005" to +0.008" | -0.005" to +0.015" | 50 | €10.46 | |
 |
U51410.043.0001 | 7/16" | 0.047" | 0.034" | 0.063" | 7/16" | +0.016", -0.013" | -0.005" to +0.015" | -0.007" to +0.015" | 25 | €3.55 | |
 |
U51410.025.0005 | 1/4" | 0.047" | 0.034" | 0.047" | 1/4" | +0.016", -0.013" | -0.005" to +0.015" | -0.007" to +0.015" | 50 | €5.26 | |
 |
U51410.031.0008 | 5/16" | 0.063" | 0.049" | 0.078" | 5/16" | +0.015", -0.014" | -0.005" to +0.015" | -0.007" to +0.015" | 50 | €8.58 |
