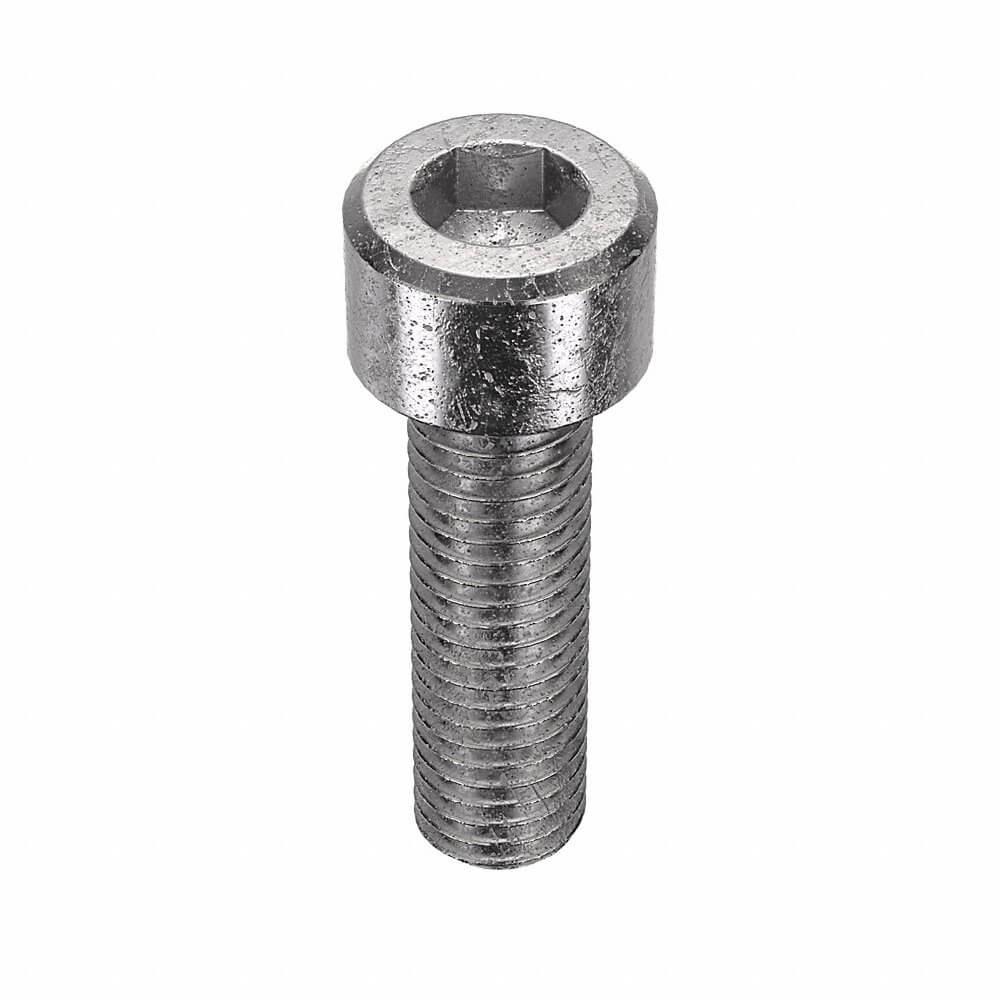

APPROVED VENDOR M51050.100.0035 Metric Socket Head Cap Screw, M10x1.5 Thread Size, Cylindrical, 35 mm Lg.
Item: AB7DQQModel: M51050.100.0035Cross Ref: 22UC89
7 In Stock
Ships within 2 days via
5.00% off
€57.78 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Metric Socket Head Cap Screw |
| Color | Silver |
| Combined Material & Grade | 18-8 Stainless Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 50 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade A2 |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 16 mm |
| Head Height | 10 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Included Washers | No |
| Length | 35 mm |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm A307A |
| Material Type | Stainless Steel |
| Max. Head Height | 10 mm |
| Max. Temp. | 550°F |
| Min. Head Height | 9.64 mm |
| Min. Temp. | -50°F |
| Min. Tensile Strength | 700 N/sq. mm |
| Min. Thread Length | 35 mm |
| Min. Yield Strength | 81000 psi |
| Non-marring Tip | No |
| Proof Load | 74000 psi |
| Screw Length | 35 mm |
| Seal Material | None |
| Sealing Gasket | No |
| System Of Measurement | Metric |
| Tensile Strength | 101500 psi |
| Thread Direction | Right Hand |
| Thread Fit | 6G |
| Thread Length | 35 mm |
| Thread Size | M10 x 1.5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 11.94 |
| HS code | 7318158030 |
| Country of Origin | TW |
