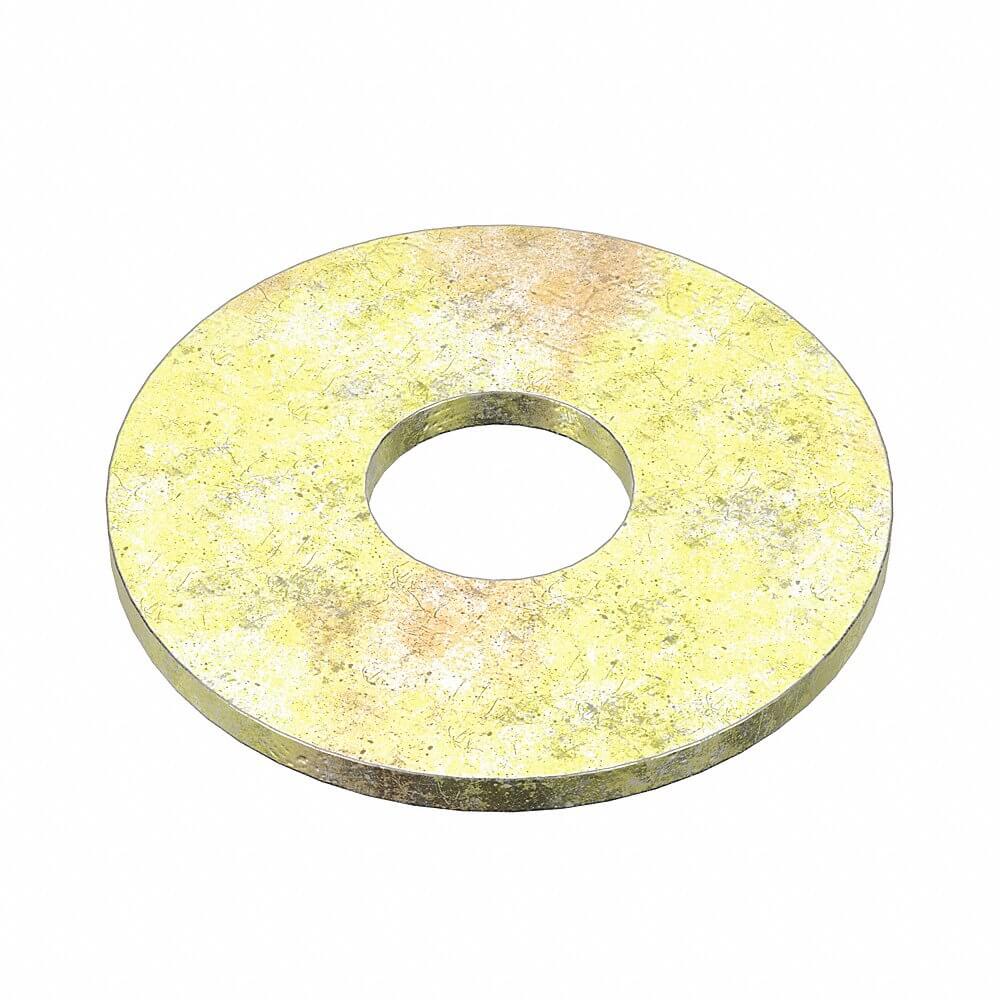

APPROVED VENDOR M38211.160.0001 Flat Washer, M16 Fits Bolt Size, Std, 17 mm I.D., 50 mm O.D.
Item: AB8EWZModel: M38211.160.0001Cross Ref: 25DL25
7 In Stock
Ships within 2 days via
5.00% off
€17.77 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 9021 |
| Finish | Zinc Yellow |
| Fits Bolt Size | M16 |
| Flat Washer Type | Standard |
| For Screw Size | M16 |
| Inside Dia. | 17 mm |
| Inside Dia. Tolerance | 0.669" to 0.68" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 3 mm |
| Min. Temp. | -58°C |
| Min. Thickness | 3 mm |
| Outside Dia. | 50 mm |
| Outside Dia. Tolerance | 1.944" to 1.969" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Thickness | 3 mm |
| Thickness Tolerance | 0.106" to 0.13" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Hardness | Min. Thickness | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38211.030.0001 | 3.2 mm | 9 mm | 0.8 mm | 0.8 mm | 0.028" to 0.035" | - | 0.8 mm | 0.126" to 0.133" | 100 | €1.71 | |
 |
M38211.040.0001 | 4.3 mm | 12 mm | 1 mm | 1 mm | 0.035" to 0.043" | - | 1 mm | 0.169" to 0.176" | 100 | €2.73 | |
 |
M38211.050.0001 | 5.3 mm | 15 mm | 1.2 mm | 1.2 mm | 0.039" to 0.055" | - | 1.2 mm | 0.209" to 0.216" | 100 | €4.05 | |
 |
M38211.060.0001 | 6.4 mm | 18 mm | 1.6 mm | - | - | - | - | - | 100 | €5.97 | |
 |
M38211.070.0001 | 7.4 mm | 22 mm | 2 mm | - | - | - | - | - | 100 | €11.09 | |
 |
M38211.080.0001 | 8.4 mm | 24 mm | 2 mm | - | - | - | - | - | 100 | €11.22 | |
 |
M38211.100.0001 | 10.5 mm | 30 mm | 2.5 mm | 2.5 mm | 0.091" to 0.106" | - | 2.5 mm | 0.413" to 0.424" | 100 | €21.95 |
