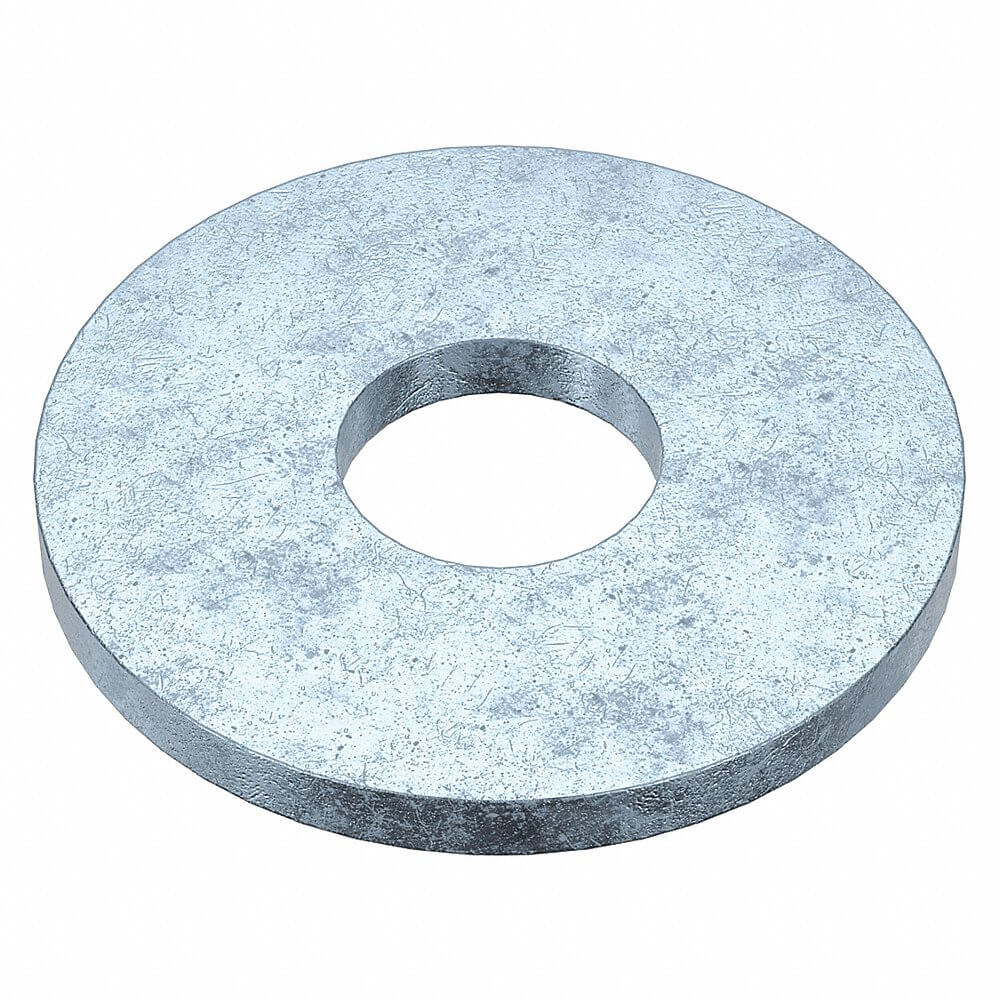

APPROVED VENDOR M38210.100.0001 Flat Washer, M10 Fits Bolt Size, Oversized, 10.5 mm I.D., 2.5 mm Thk.
Item: AB7DZNModel: M38210.100.0001Cross Ref: 22UE73
7 In Stock
Ships within 2 days via
5.00% off
€21.81 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 9021 |
| Finish | Zinc Plated |
| Fits Bolt Size | M10 |
| Flat Washer Type | Oversized |
| For Screw Size | M10 |
| Inside Dia. | 10.5 mm |
| Inside Dia. Tolerance | 0.413" to 0.424" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 2.5 mm |
| Min. Temp. | -58°C |
| Min. Thickness | 2.5 mm |
| Outside Dia. | 30 mm |
| Outside Dia. Tolerance | 1.161" to 1.181" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Thickness | 2.5 mm |
| Thickness Tolerance | 0.091" to 0.106" |
| Washer Type | Oversized Washer |
Shipping Info:
| Ship weight (kg) | 1.09 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP7 | #10 | 0.075" | 0.075" | 0.073" | #10 | Grade 2 | +0.029" | -0.029" to +0.029" | 100 | €52.07 | |
 |
U38130.043.0001 | 7/16" | 0.083" | 0.083" | 0.083" | 7/16" | Ungraded | 0.064" to 0.104" | 0.495" to 0.515" | 50 | €10.57 | |
 |
U38130.050.0001 | 1/2" | 0.109" | 0.109" | 0.109" | 1/2" | Ungraded | 0.086" to 0.132" | 0.557" to 0.577" | 50 | €12.20 | |
 |
U38130.056.0001 | 9/16" | 0.109" | 0.109" | 0.109" | 9/16" | Ungraded | 0.086" to 0.132" | 0.62" to 0.64" | 25 | €8.47 | |
 |
U38130.062.0001 | 5/8" | 0.134" | 0.134" | 0.134" | 5/8" | Ungraded | 0.108" to 0.16" | 0.681" to 0.718" | 25 | €9.79 | |
 |
U38130.087.0001 | 7/8" | 0.156" | 0.165" | 0.165" | 7/8" | Ungraded | 0.136" to 0.192" | 0.931" to 0.968" | 10 | €10.66 | |
 |
U38130.100.0001 | 1" | 0.156" | 0.165" | 0.165" | 1" | Ungraded | 0.136" to 0.192" | 1.055" to 1.092" | 5 | €7.18 |
