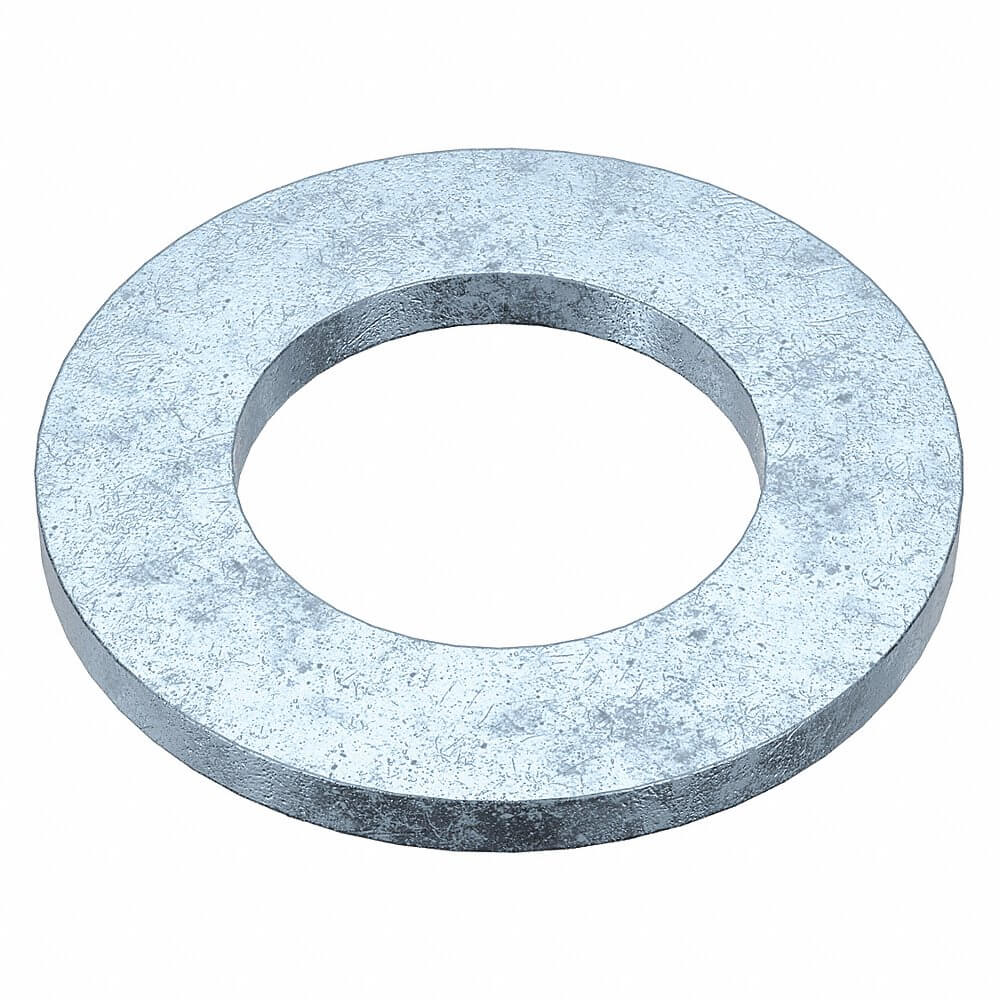

APPROVED VENDOR M38130.640.0001 Flat Washer, M64 Fits Bolt Size, Std, 66 mm I.D., 115 mm O.D.
Item: AB8EVZModel: M38130.640.0001Cross Ref: 25DL02
7 In Stock
Ships within 2 days via
5.00% off
€7.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 125-1A |
| Finish | Zinc Plated |
| Fits Bolt Size | M64 |
| Flat Washer Type | Standard |
| For Screw Size | M64 |
| Grade | Grade 2 |
| Inside Dia. | 66 mm |
| Inside Dia. Tolerance | 2.598" to 2.628" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 9 mm |
| Min. Temp. | -58°C |
| Min. Thickness | 9 mm |
| Outside Dia. | 115 mm |
| Outside Dia. Tolerance | 4.472" to 4.528" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Thickness | 9 mm |
| Thickness Tolerance | 0.315" to 0.394" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.49 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38130.160.0001 | M16 | 3 mm | 3 mm | 3 mm | M16 | 0.106" to 0.13" | 0.669" to 0.68" | 1.161" to 1.181" | 25 | €5.94 | |
 |
M38130.200.0001 | M20 | 3 mm | 3 mm | 3 mm | M20 | 0.106" to 0.13" | 0.827" to 0.84" | 1.432" to 1.457" | 10 | €3.97 | |
 |
M38130.300.0001 | M30 | 4 mm | 4 mm | 4 mm | M30 | 0.146" to 0.169" | 1.22" to 1.236" | 2.176" to 2.205" | 5 | €5.91 | |
 |
M38130.360.0001 | M36 | 5 mm | 5 mm | 5 mm | M36 | 0.173" to 0.22" | 1.457" to 1.481" | 2.551" to 2.598" | 2 | €4.10 | |
 |
M38130.390.0001 | M39 | 6 mm | 6 mm | 6 mm | M39 | 0.213" to 0.26" | 1.575" to 1.599" | 2.787" to 2.835" | 2 | €6.04 | |
 |
M38130.420.0001 | M42 | 7 mm | 7 mm | 7 mm | M42 | 0.236" to 0.315" | 1.693" to 1.717" | 3.024" to 3.071" | 2 | €8.55 | |
 |
M38130.120.0001 | M12 | 2.5 mm | 2.5 mm | 2.5 mm | M12 | 0.091" to 0.106" | 0.512" to 0.522" | 0.924" to 0.945" | 50 | €9.43 |
