FREE delivery on orders over €150

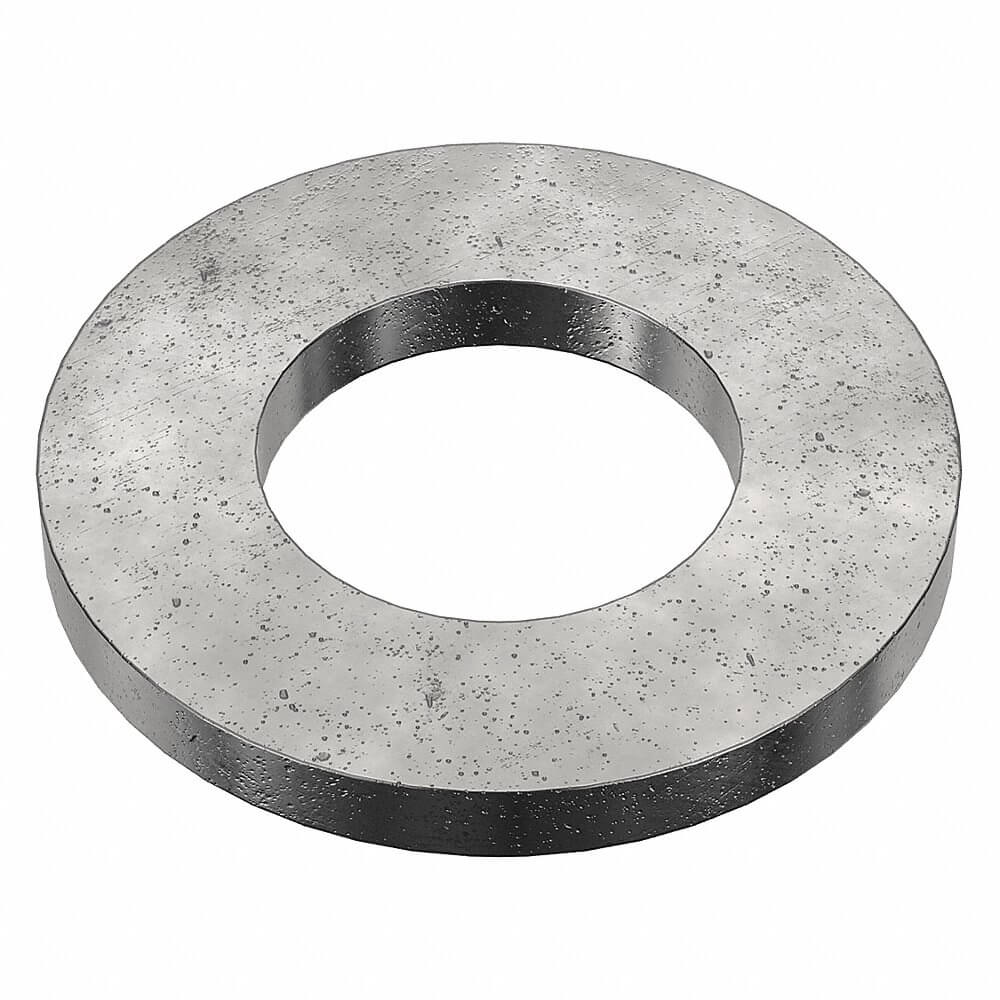

APPROVED VENDOR M38100.080.0001 Flat Washer, M8 Fits Bolt Size, Std, 8.4 mm I.D., 16 mm O.D., Blk Oxide
Item: AB8EUTModel: M38100.080.0001Cross Ref: 25DK71
7 In Stock
Ships within 2 days via
5.00% off
€3.75 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 125-1A |
| Finish | Plain |
| Fits Bolt Size | M8 |
| Flat Washer Type | Standard |
| For Screw Size | M8 |
| Grade | Grade 2 |
| Inside Dia. | 8.4 mm |
| Inside Dia. Tolerance | 0.331" to 0.339" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 1.6 mm |
| Min. Temp. | -58°C |
| Min. Thickness | 1.6 mm |
| Outside Dia. | 16 mm |
| Outside Dia. Tolerance | 0.613" to 0.63" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Thickness | 1.6 mm |
| Thickness Tolerance | 0.055" to 0.071" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38100.300.0001 | M30 | 4 mm | 4 mm | 4 mm | M30 | 0.146" to 0.169" | 1.22" to 1.236" | 2.176" to 2.205" | 5 | €5.50 | |
 |
M38100.360.0001 | M36 | 5 mm | 5 mm | 5 mm | M36 | 0.173" to 0.22" | 1.457" to 1.481" | 2.551" to 2.598" | 2 | €4.33 | |
 |
M38100.420.0001 | M42 | 7 mm | 7 mm | 7 mm | M42 | 0.236" to 0.315" | 1.693" to 1.717" | 3.024" to 3.071" | 2 | €7.02 | |
 |
M38100.060.0001 | M6 | 1.6 mm | 1.6 mm | 1.6 mm | M6 | 0.055" to 0.071" | 0.252" to 0.261" | 0.456" to 0.472" | 100 | €2.81 | |
 |
M38100.100.0001 | M10 | 2 mm | 2 mm | 2 mm | M10 | 0.071" to 0.087" | 0.413" to 0.424" | 0.767" to 0.787" | 100 | €9.11 | |
 |
M38100.120.0001 | M12 | 2.5 mm | 2.5 mm | 2.5 mm | M12 | 0.091" to 0.106" | 0.512" to 0.522" | 0.924" to 0.945" | 50 | €6.04 | |
 |
M38100.140.0001 | M14 | 2.5 mm | 2.5 mm | 2.5 mm | M14 | 0.091" to 0.106" | 0.591" to 0.601" | 1.082" to 1.102" | 50 | €8.13 |
