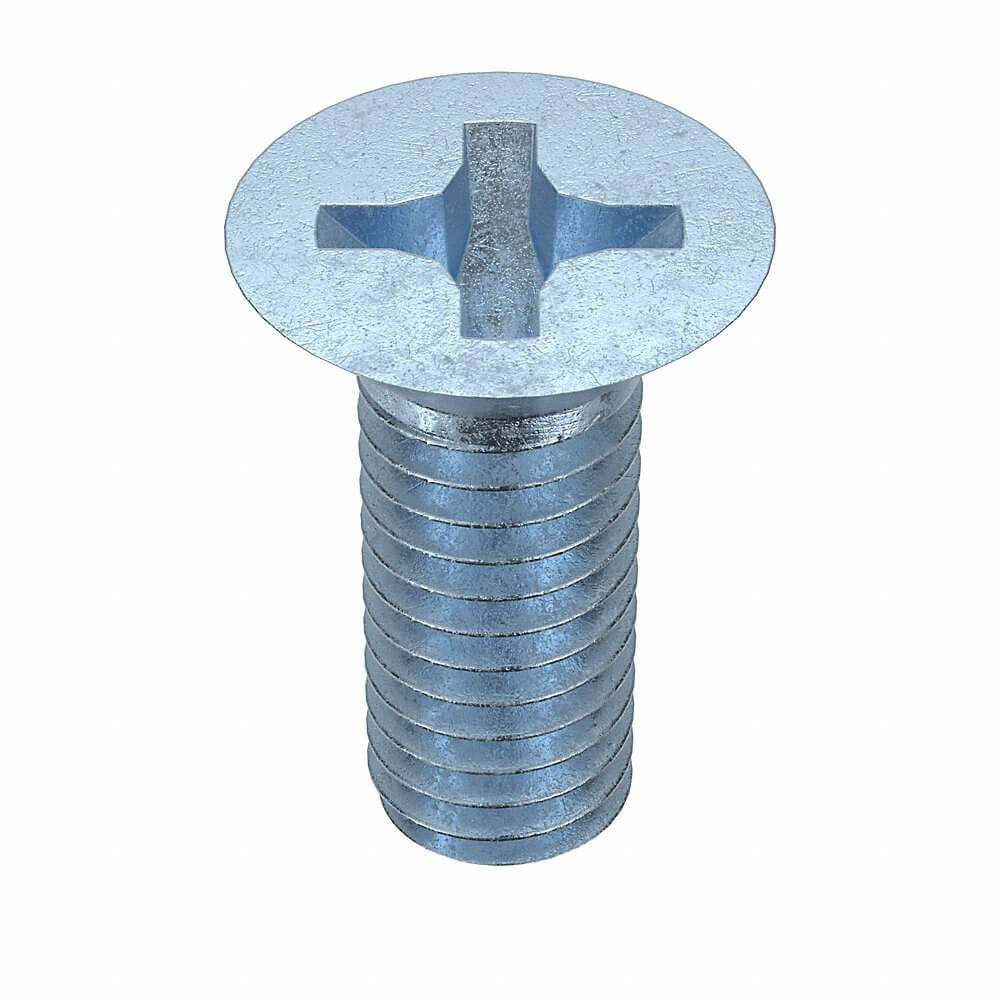

APPROVED VENDOR M24670.030.0008 Machine Screw, M3x0.5 Thread Size, Steel, 8 mm Lg., Std, Flat, Zn Plated
Get it by Friday, Feb 27
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€6.08 /pkg. of 100
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine Screw |
| Class | Class 4.8 |
| Dimensional Standards | Din 965H, Din En Iso 7046 |
| Drive | Phillips |
| Drive Size | #1 |
| Drive Type | Phillips |
| Fastener Length | 8 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell B71-B99 |
| Head Angle | 90° |
| Head Dia. | 5.5 mm |
| Head Height | 1.65 mm |
| Head Type | Flat |
| Length | 8 mm |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Material Grade/class | 4.8 |
| Rockwell Hardness | B71 to B95 |
| Screw Size | M3 |
| System Of Measurement | Metric |
| Tensile Strength | 60900 psi |
| Thread Fit | 6G |
| Thread Length | 8 mm |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156080 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Head Height | Head Dia. | Tensile Strength | Thread Length | Class | Drive Size | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U24670.011.0025 | #4-40 | 0.067" | 0.212" | 60000 psi | 1/4" | Class 3A, Class 2A | #1 | Rockwell B70 | 100 | €1.99 | |
 |
U24670.011.0037 | #4-40 | 0.212" | 0.212" | 60000 psi | 3/8" | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 100 | €5.35 | |
 |
U24670.011.0050 | #4-40 | 0.212" | 0.212" | 60000 psi | 1/2" | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 100 | €6.40 | |
 |
U24670.011.0075 | #4-40 | 0.067" | 0.212" | 60000 psi | 3/4" | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 100 | €3.52 | |
 |
U24670.011.0100 | #4-40 | 0.067" | 0.212" | 60000 psi | 1" | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 100 | €4.02 | |
 |
U24670.011.0150 | #4-40 | 0.067" | 0.212" | 60000 psi | 1 1/2" | Class 3A, Class 2A | #1 | Rockwell B69-B100 | 100 | €10.04 | |
 |
U24670.013.0025 | #6-32 | 0.083" | 0.262" | 60000 psi | 1/4" | Class 3A, Class 2A | #2 | Rockwell B69-B100 | 100 | €3.18 |
