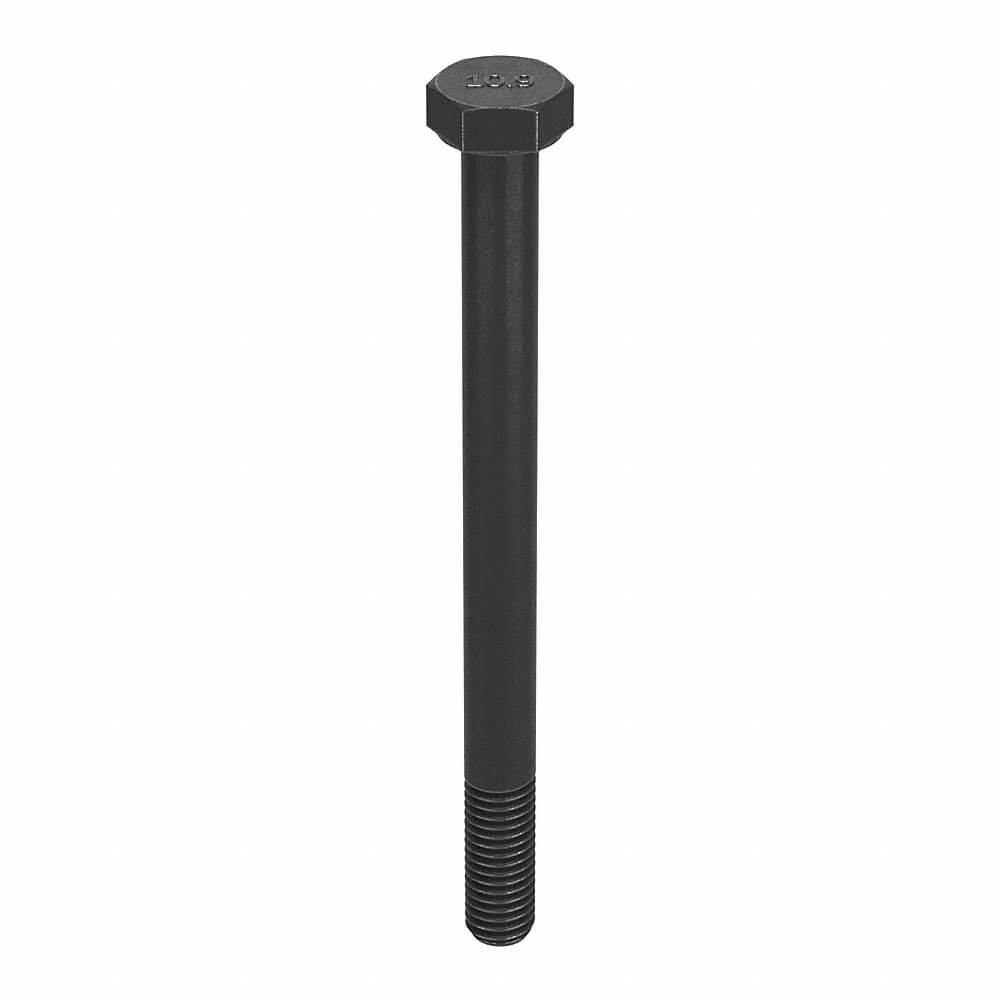

APPROVED VENDOR M04100.080.0100 Hex Head Cap Screw, M8x1.25 Thread Size, Steel, 100 mm Lg., 5.3 mm Head Ht.
Item: AB8CKXModel: M04100.080.0100Cross Ref: 25CY85
7 In Stock
Ships within 2 days via
5.00% off
€52.58 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Drive | Hex |
| Fastener Length | 100 mm |
| Finish | Black Oxide |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 5.3 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 13 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 100 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 22mm |
| Min. Thread Length | 22 mm |
| Overall Length | 100 mm |
| Rockwell Hardness | Hrc32 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 22 mm |
| Thread Size | M8 x 1.25 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Rockwell Hardness | Head Height | Head Width | Thread Direction | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M04100.080.0030 | Partially Threaded | 22 mm | 30 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €40.73 | |
| M04100.080.0035 | Partially Threaded | 22 mm | 35 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €59.24 | |
| M04100.080.0040 | Partially Threaded | 22 mm | 40 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €75.93 | |
| M04100.080.0045 | Partially Threaded | 22 mm | 45 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €70.70 | |
| M04100.080.0050 | Partially Threaded | 22 mm | 50 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €58.44 | |
| M04100.080.0060 | Partially Threaded | 22 mm | 60 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €45.91 | |
| M04100.080.0070 | Partially Threaded | 22 mm | 70 mm | 22 mm | Hrc32 | 5.3 mm | 13 mm | Right Hand | 100 | €81.09 |
