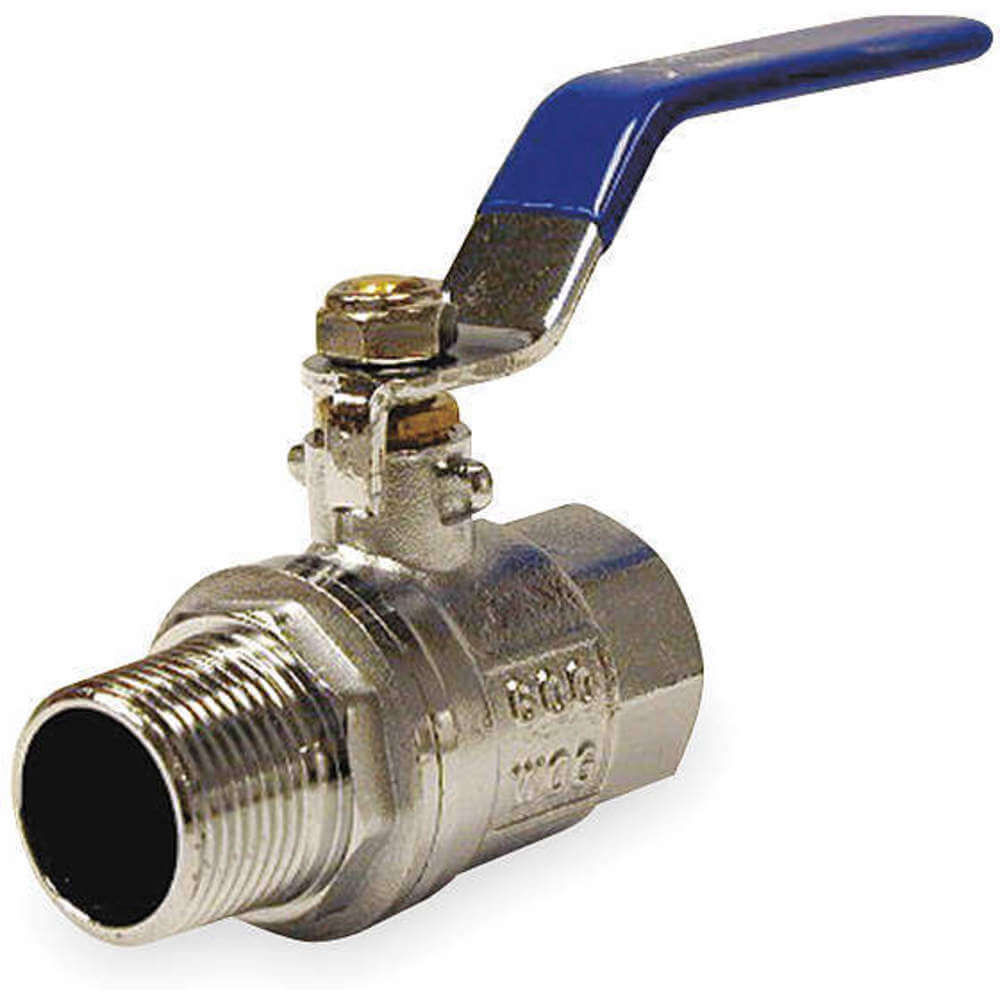

APPROVED VENDOR G-MPC-75 Chrome-plated Brass Ball Valve Fnpt x Mnpt 3/4 In
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€43.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Nickel-Plated Brass |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 29.76 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FNPT x MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Air, Steam, Water |
| Handle | Lever |
| Handle Color | Blue |
| Handle Finish | Chrome Plated |
| Handle Material | Chrome Plated Steel, PVC |
| Handle Type | Lever |
| Max. Pressure | 900 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 900 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temperature Range | -40°F to +400°F |
| Nominal Valve Size | 3/4" |
| Number Of Pieces | 2 |
| Overall Length | 3" |
| Pipe Size | 3/4" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | -40°F to +400°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 13.97 |
| HS code | 8481801085 |
| Country of Origin | CN |
Product Variants
| Model | Seal Material | Overall Length | Pipe Size | Ball Finish | Body Material | Connection Type | Max. Steam Pressure | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| G-MPC-25 | PTFE | 2.05" | 1/4" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €21.26 | |
| G-MPC-38 | PTFE | 2.13" | 3/8" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €21.26 | |
| G-MPC-50 | PTFE | 2.5" | 1/2" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €29.56 | |
| G-MPC-100 | PTFE | 3.27" | 1" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €93.27 | |
| G-KTCM-125NP | FKM | 4.15" | 1 1/4" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €107.13 | |
| G-KTCM-150NP | FKM | 4.45" | 1 1/2" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €141.41 | |
| G-KTCM-200NP | FKM | 5.24" | 2" | Chrome Plated | Nickel-Plated Brass | FNPT x MNPT | 150 psi WSP | PTFE | €272.25 |
