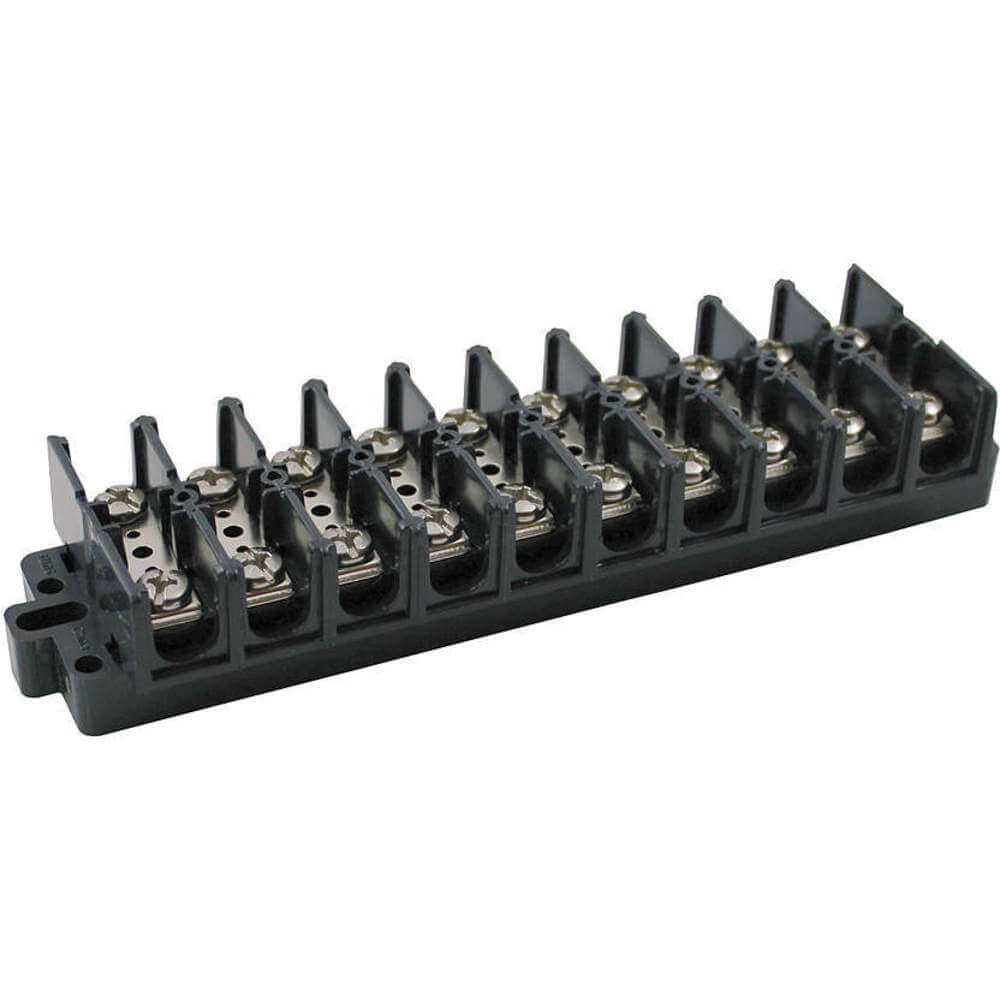

APPROVED VENDOR 6ZEJ8 Terminal Strip 10 Pole 60A .625 Spacing
Item: AF2YTHModel: 6ZEJ8
7 In Stock
Ships within 2 days via
5.00% off
€51.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Terminal Strip |
| Amps | 60A |
| Center Spacing | 5/8" |
| Center Spacing | 5/8 In. |
| Color | Black |
| Compatible With Product Type | Power Distribution Blocks |
| Cover Included | No |
| Flammability Rating | V-0 |
| For Min. Wire Size | 22 AWG |
| Height | 1.22" |
| Housing Color | Black |
| Housing Material | Thermal Plastic |
| Length | 7 12/25" |
| Material | Thermal Plastic |
| Max. Operating Temp. | 221°F |
| Max. Voltage | 600V AC |
| Max. Wire Size | 6 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 22 AWG |
| Mounting Style | Bolt Down |
| No. Of Poles | 10 |
| No. Of Rows | 2 |
| Overall Height | 1 1/4" |
| Overall Length | 7.5" |
| Overall Width | 2.02" |
| Rohs Compliant | Yes |
| Screw Type | Phil Slot |
| Temp. | -40°F to +257°F , -40°F to 257°F |
| Temp. Rating | -40 to 257 F |
| Terminal Material | Copper |
| Termination Screw Finish | Nickel Plated |
| Termination Screw Material | Steel |
| Termination Screw Size | #10-32 |
| Termination Style | Screw |
| Torque | 20 lbs.-in. |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.81 |
| HS code | 8536904000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Amps | No. Of Poles | Housing Material | Height | Max. Wire Size | Voltage | Overall Width | Max. Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6YH63 | 30A | 2 | Thermal Plastic | 0.83" | 10 AWG | 600V AC | 1.34" | 600V AC | €5.45 | |
 |
6YH64 | 30A | 4 | Thermal Plastic | 0.83" | 10 AWG | 600V AC | 1.34" | 600V AC | €10.88 | |
 |
6YH65 | 30A | 6 | Thermal Plastic | 0.83" | 10 AWG | 600V AC | 1.34" | 600V AC | €15.81 | |
 |
6YH66 | 30A | 8 | Thermal Plastic | 0.83" | 10 AWG | 600V AC | 1.34" | 600V AC | €21.78 | |
 |
6YH68 | 30A | 12 | Thermal Plastic | 0.83" | 10 AWG | 600V AC | 1.34" | 600V AC | €32.28 | |
 |
6YH91 | 60A | 6 | Thermal Plastic | 1.22" | 6 AWG | 600V AC | 2" | 600V AC | €34.99 | |
 |
6YH93 | 60A | 12 | Thermal Plastic | 1.22" | 6 AWG | 600V AC | 2" | 600V AC | €68.25 |
