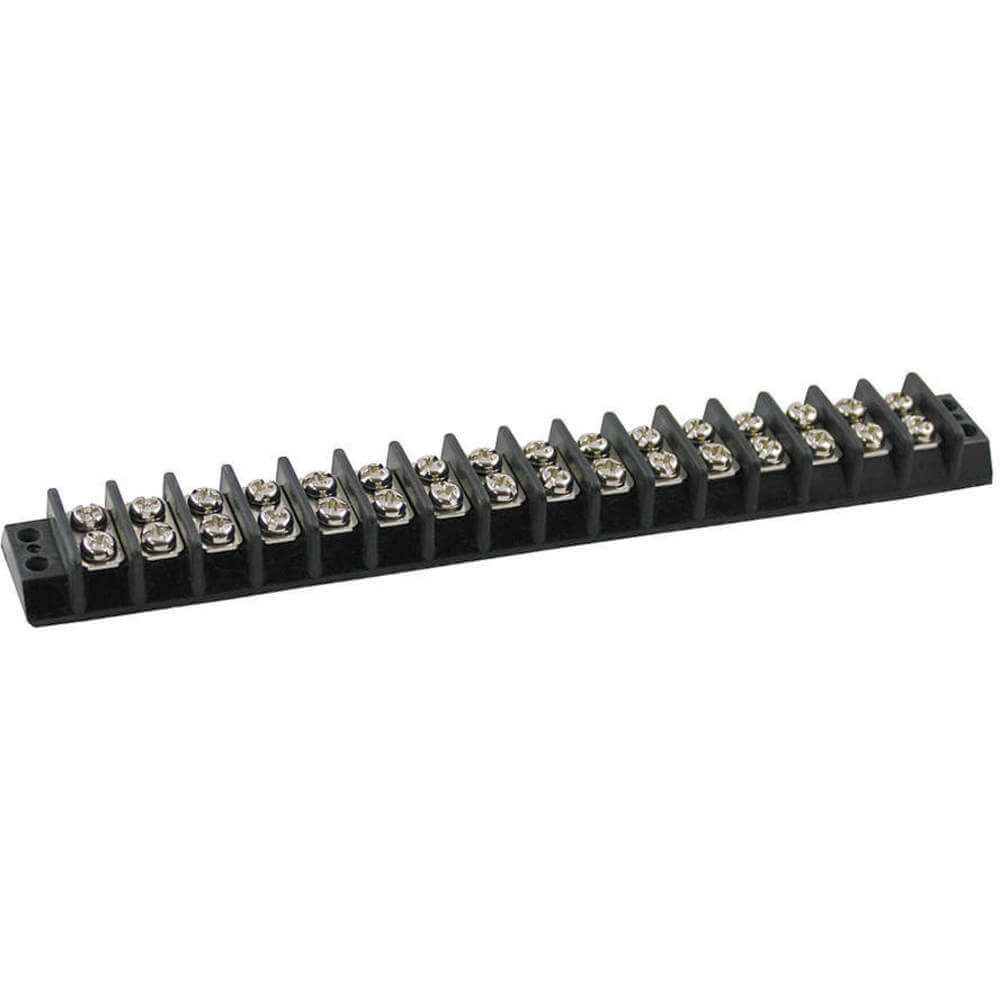

APPROVED VENDOR 6ZEH2 Terminal Strip 8 Pole 20A .437 Spacing
Item: AF2YRRModel: 6ZEH2
7 In Stock
Ships within 2 days via
5.00% off
€17.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Terminal Strip |
| Amps | 20A |
| Center Spacing | 7/16" |
| Center Spacing | 7/16 In. |
| Color | Black |
| Compatible With Product Type | Power Distribution Blocks |
| Cover Included | No |
| Flammability Rating | V-0 |
| For Min. Wire Size | 22 AWG |
| Height | 0.59" |
| Housing Color | Black |
| Housing Material | Phenolic |
| Length | 4.21" |
| Material | Phenolic |
| Max. Operating Temp. | 266°F |
| Max. Voltage | 300V AC |
| Max. Wire Size | 12 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 22 AWG |
| Mounting Style | Bolt Down |
| No. Of Poles | 8 |
| No. Of Rows | 2 |
| Overall Height | 0.59" |
| Overall Length | 4.31" |
| Overall Width | 1 3/25" |
| Rohs Compliant | Yes |
| Screw Type | Phil Slot |
| Standards | Cruus |
| Temp. | -40°F to +302°F |
| Temp. Rating | -40 to 302 F |
| Terminal Material | Copper |
| Termination Screw Finish | Nickel Plated |
| Termination Screw Material | Steel |
| Termination Screw Size | #6-32 |
| Termination Style | Screw |
| Torque | 9 lbs.-in. |
| Voltage | 300V |
| Width | 1.14" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Amps | Max. Voltage | Max. Operating Temp. | Housing Material | Min. Operating Temp. | Material | Max. Wire Size | Center Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6YH63 | 30A | 600V AC | 266°F | Thermal Plastic | -76°F | Thermal Plastic | 10 AWG | 9/16" | €5.45 | |
 |
6YH64 | 30A | 600V AC | 266°F | Thermal Plastic | -76°F | Thermal Plastic | 10 AWG | 9/16" | €10.88 | |
 |
6YH65 | 30A | 600V AC | 266°F | Thermal Plastic | -76°F | Thermal Plastic | 10 AWG | 9/16" | €15.81 | |
 |
6YH66 | 30A | 600V AC | 266°F | Thermal Plastic | -76°F | Thermal Plastic | 10 AWG | 9/16" | €21.78 | |
 |
6YH68 | 30A | 600V AC | 266°F | Thermal Plastic | -76°F | Thermal Plastic | 10 AWG | 9/16" | €32.28 | |
 |
6YH91 | 60A | 600V AC | 221°F | Thermal Plastic | -76°F | Thermal Plastic | 6 AWG | 5/8" | €34.99 | |
 |
6YH93 | 60A | 600V AC | 221°F | Thermal Plastic | -76°F | Thermal Plastic | 6 AWG | 5/8" | €68.25 |
