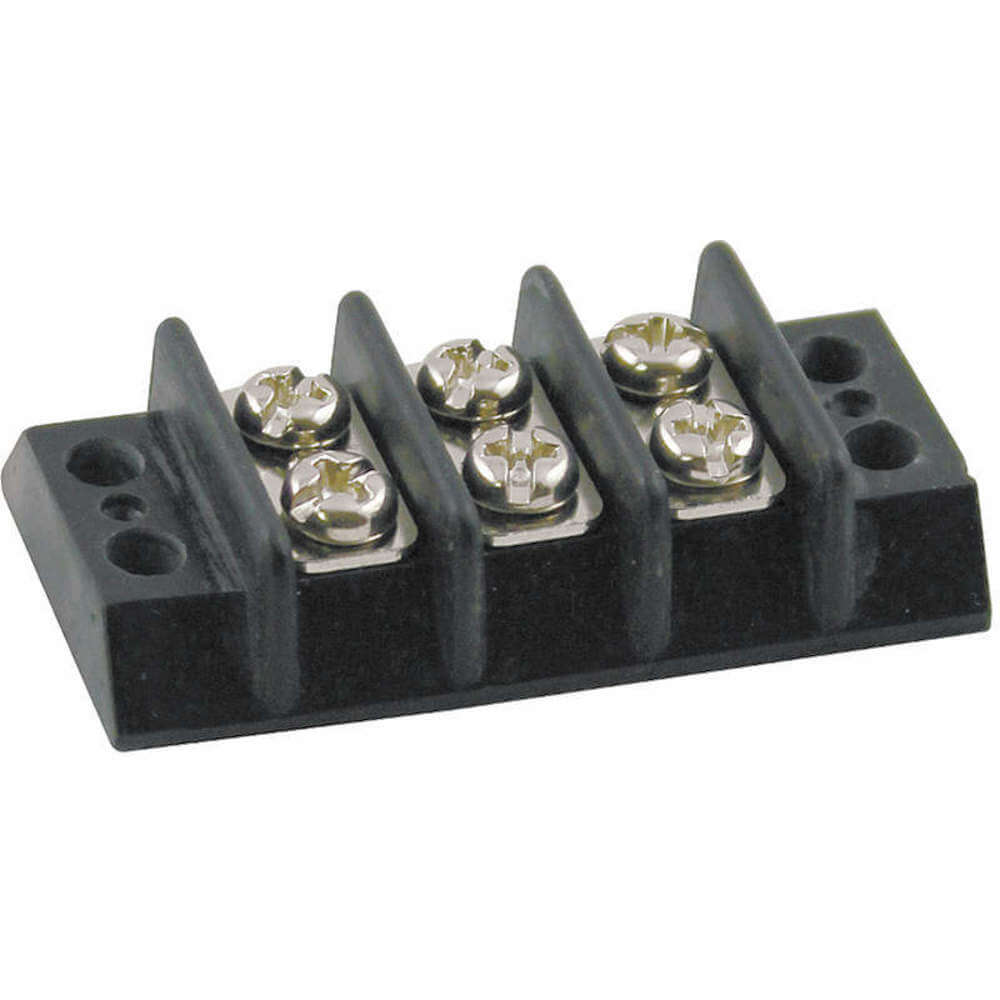

APPROVED VENDOR 6ZEF3 Terminal Strip 3 Pole 15A .375 Spacing
Item: AF2YQWModel: 6ZEF3
7 In Stock
Ships within 2 days via
10.00% off
€6.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Terminal Strip |
| Center Spacing | 3/8" |
| Center Spacing | 3/8 In. |
| Color | Black |
| Compatible With Product Type | Power Distribution Blocks |
| Cover Included | No |
| Current | 15A |
| Flammability Rating | V-0 |
| For Minimum Wire Size | 22 AWG |
| Height | 0.47" |
| Housing Color | Black |
| Housing Material | Phenolic |
| Length | 1.81" |
| Material | Phenolic |
| Max. Wire Size | 14 AWG |
| Maximum Operating Temperature | 266°F |
| Maximum Voltage | 300V AC |
| Min. Wire Size | 22 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Style | Bolt Down |
| Number Of Poles | 3 |
| Number Of Rows | 2 |
| Overall Height | 0.45" |
| Overall Length | 1.81" |
| Overall Width | 0.89" |
| Rohs Compliant | Yes |
| Screw Type | Phil Slot |
| Standards | Cruus |
| Temp. Range | -40°F to +302°F |
| Temp. Rating | -40°F to +302°F |
| Temp. Rating | -40 to 302 F |
| Terminal Material | Copper |
| Termination Screw Finish | Nickel Plated |
| Termination Screw Material | Steel |
| Termination Screw Size | #6-32 |
| Termination Style | Screw |
| Torque | 9 lbs.-in. |
| Voltage | 300V |
| Width | 0.87" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 2.79 |
| HS code | 8536904000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Number Of Poles | Housing Material | Temp. Range | Material | Max. Wire Size | Center Spacing | Torque | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6YH63 | 2 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 10 AWG | 9/16" | 12 lbs.-in. | 2.12" | €5.67 | |
 |
6YH64 | 4 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 10 AWG | 9/16" | 12 lbs.-in. | 3.24" | €11.42 | |
 |
6YH65 | 6 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 10 AWG | 9/16" | 12 lbs.-in. | 4.36" | €16.59 | |
 |
6YH66 | 8 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 10 AWG | 9/16" | 12 lbs.-in. | 5.48" | €22.81 | |
 |
6YH68 | 12 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 10 AWG | 9/16" | 12 lbs.-in. | 7.71" | €33.83 | |
 |
6YH91 | 6 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 6 AWG | 5/8" | 20 lbs.-in. | 5" | €36.67 | |
 |
6YH93 | 12 | Thermal Plastic | -40°F to +266°F | Thermal Plastic | 6 AWG | 5/8" | 20 lbs.-in. | 8.75" | €70.70 |
