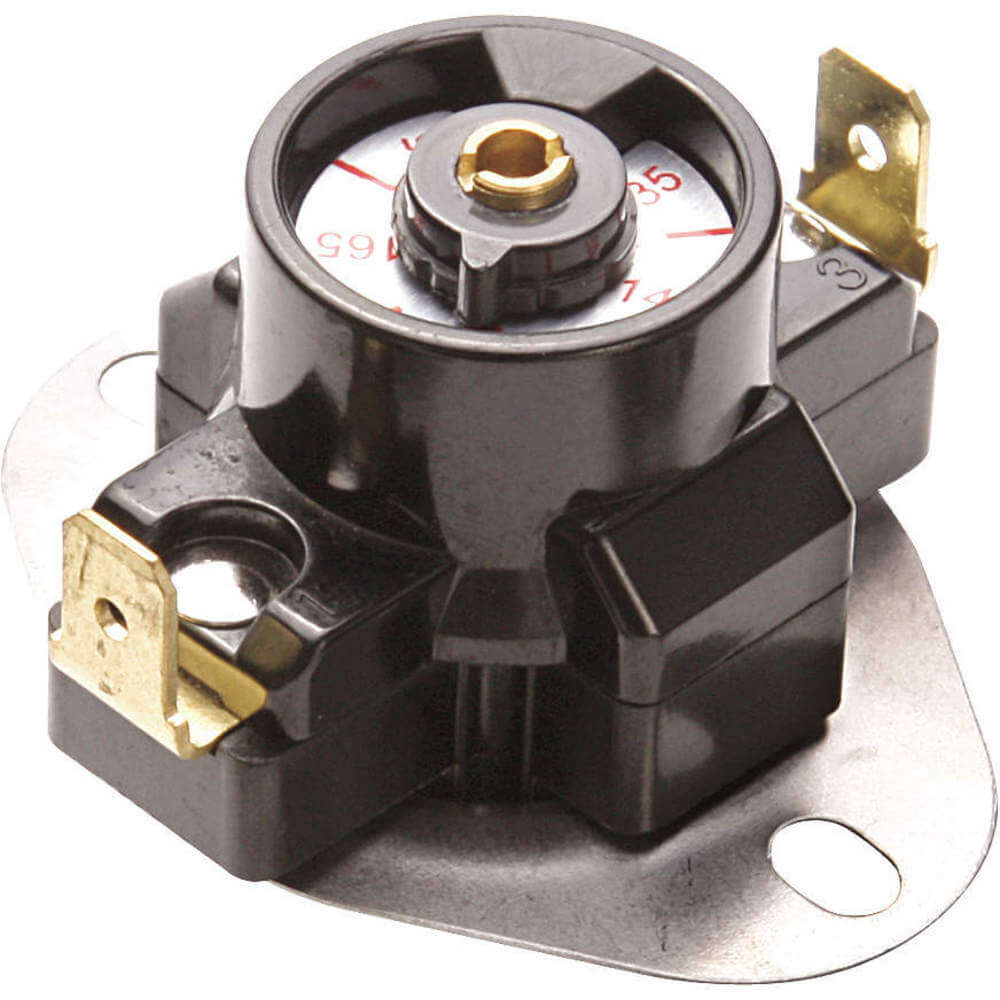

APPROVED VENDOR 6UEE2 Adjustable Fan Switch 140-180
Item: AF2HYBModel: 6UEE2
7 In Stock
Ships within 2 days via
10.00% off
€21.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Disc Control |
| Application | Adjustable Fan Control |
| Circuit #1 Switch Closes @ (f) | 140 to 180 |
| Circuit #1 Switch Opens @ (f) | 120°F to 160°F |
| Circuit #1 Switch Opens @ (f) | 120 to 160 |
| Contact Form | SPST |
| Depth | 1 3/4" |
| Face Diameter | 2" |
| Height | 1 1/4" |
| Inductive Amps @ 120v | 14A |
| Inductive Amps @ 120v | 14 |
| Inductive Amps @ 240v | 10A |
| Inductive Amps @ 240v | 10 |
| Input Voltage | 120/240V AC |
| Ip Rating | Not Rated |
| Mounting | Surface Mount |
| Mounting Base Length | 2" |
| Mounting Base Width | 1 3/4" |
| Mounting Hole Center To Center Distance | 1 5/8" |
| Mounting Hole Diameter | 1/8" |
| Number Of Mounting Holes | 2 |
| Overall Depth | 1 3/4" |
| Overall Height | 1 1/4" |
| Pilot Contact Rating | 125 VA |
| Pilot Duty Contacts (va) | 125 |
| Pilot Duty Contacts (va) | 125 VA |
| Product Type | Temperature Fan Controller |
| Reset Type | Automatic Reset |
| Resistive Amps @ 120v | 25 |
| Resistive Amps @ 120v | 25A |
| Resistive Amps @ 240v Ac | 25A |
| Resistive Amps @ 277v Ac | 25A |
| Standards | Culus Recognized |
| Switch Action | Close On Rise |
| Switch Closing Temperature | 140°F, 180°F |
| Switch Opening Temperature | 120°F, 160°F |
| Switch Type | SPST |
| Temp. Range | +120°F to +180°F |
| Temperature Differential | 20°F |
| Terminal Size | 1/4" |
| Type | Adjustable Fan |
| Voltage | 120-240V AC |
| Voltage Range | 120-240V |
| Weight | 1 oz. |
| Width | 2" |
| Wire Connections | Spade terminals |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 5.08 |
| HS code | 8536509065 |
| Country of Origin | CN |
Product Details:
- Resistive Rating 240V (25)
Product Variants
| Product | Model | Circuit #1 Switch Opens @ (f) | Switch Action | Voltage | Height | Depth | Inductive Amps @ 120v | Inductive Amps @ 240v | Resistive Amps @ 120v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6UEE1 | 70°F to 110°F | Close On Rise | 120-240V AC | 1 1/4" | 1 3/4" | 14A | 10A | 25A | €24.25 |
